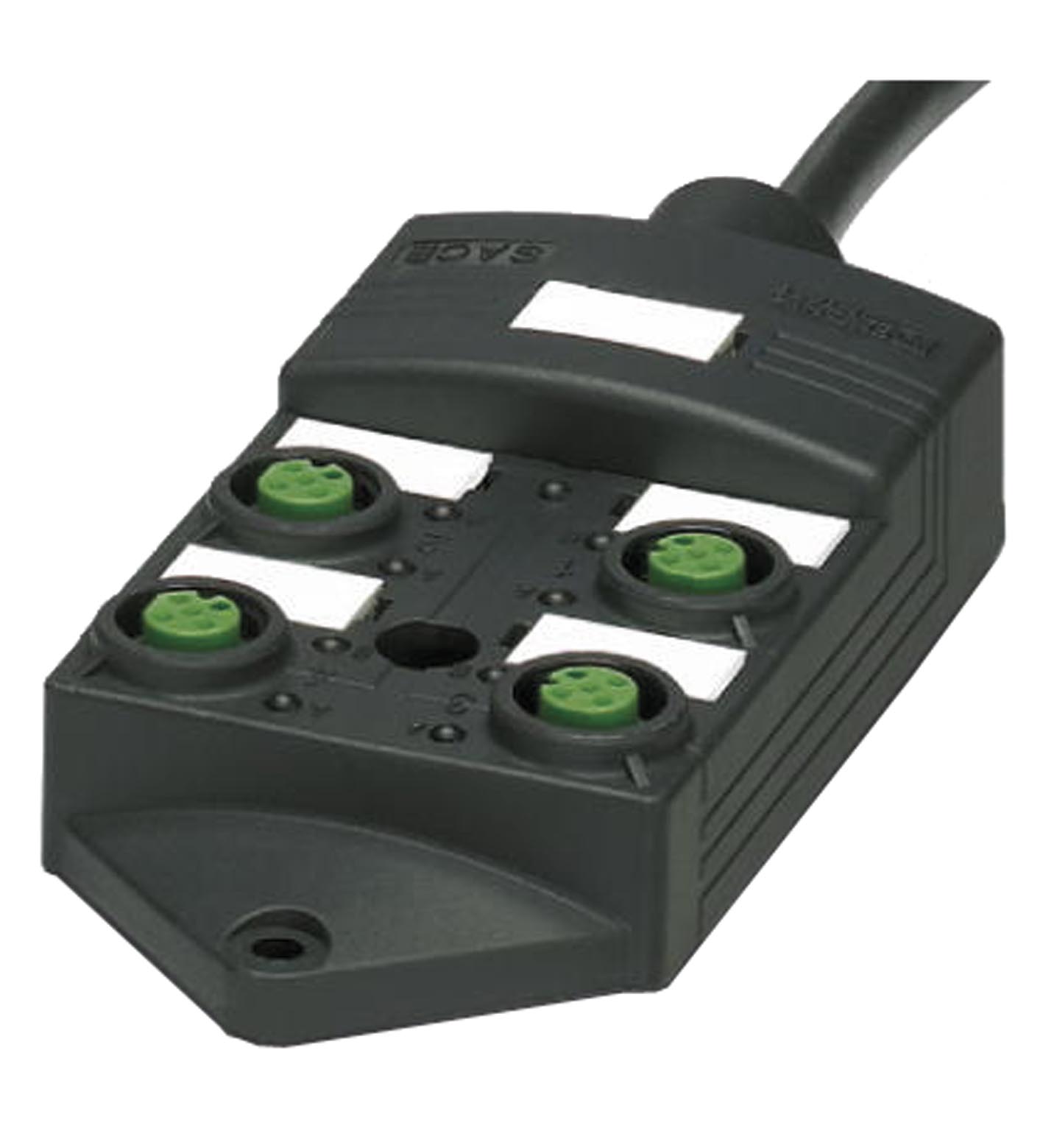

V1-4A-E2-5M-PUR

Splitter boxes. Quadruple splitter box with M12 connector with basic cable. Number of pins: 4. UL File Number: E191152. LED green: supply voltage each module. LED yellow: I/O status indication. Operat...

Splitter boxes. Quadruple splitter box with M12 connector with basic cable. Number of pins: 4. UL File Number: E191152. LED green: supply voltage each module. LED yellow: I/O status indication. Operating voltage: 24 V DC, max. 30 V DC. Operating current: ≤ 5 mA per channel indication element. Current loading capacity: ≤ 2 A per channel,≤ 4 A per plug-in station,≤ 12 A total current per separator. Number/Type: 4. Standard conformity: . Degree of protectionEN 60529FlammabilityDIN EN 50265-2-1: . Degree of protection: EN 60529. Flammability: DIN EN 50265-2-1. Ambient temperature: housing: -25 ... 80 °C (-13 ... 176 °F) cable, movable installation: -5 ... 80 °C (23 ... 176 °F) cable, fixed installation: -40 ... 90 °C (-40 ... 194 °F). Connection type: 4 x socket M12 x 1 4-pin Master cable. Degree of protection: IP65 / IP67. Material: . ContactsCu alloyContact surfaceAuHousingPBTThreaded bushingsPBTCablePURSealO-ring: NBRCore insulationPVC: . Contacts: Cu alloy. Contact surface: Au. Housing: PBT. Threaded bushings: PBT. Cable: PUR. Seal: O-ring: NBR. Core insulation: PVC. Cable: flexible. Sheath diameter∅ 6.9 mmBending radius> 10 x cable diameter, movable installation > 7.5 x cable diameter, fixed installationColorblackCoresSignal line (4): 4 x 0.34 mm2 (AWG 22) Supply line (1, 3), PE (5): 3 x 0.75 mm2 (AWG 18)Conductor construction19 x 0.15 mm ∅ and 42 x 0.15 mm ∅LengthL5 m: . Sheath diameter: ∅ 6.9 mm. Bending radius: > 10 x cable diameter, movable installation > 7.5 x cable diameter, fixed installation. Color: black. Cores: Signal line (4): 4 x 0.34 mm2 (AWG 22) Supply line (1, 3), PE (5): 3 x 0.75 mm2 (AWG 18). Conductor construction: 19 x 0.15 mm ∅ and 42 x 0.15 mm ∅. Length: 5 m. Drag chain suitability: . Drag chain cyclesmin. 1500000Motion velocitymax. 2 m/sTraverse distance2 m: . Drag chain cycles: min. 1500000. Motion velocity: max. 2 m/s. Traverse distance: 2 m. Mass: approx. 540 g

Brand	Pepperl Fuchs
Lifecycle status	active
