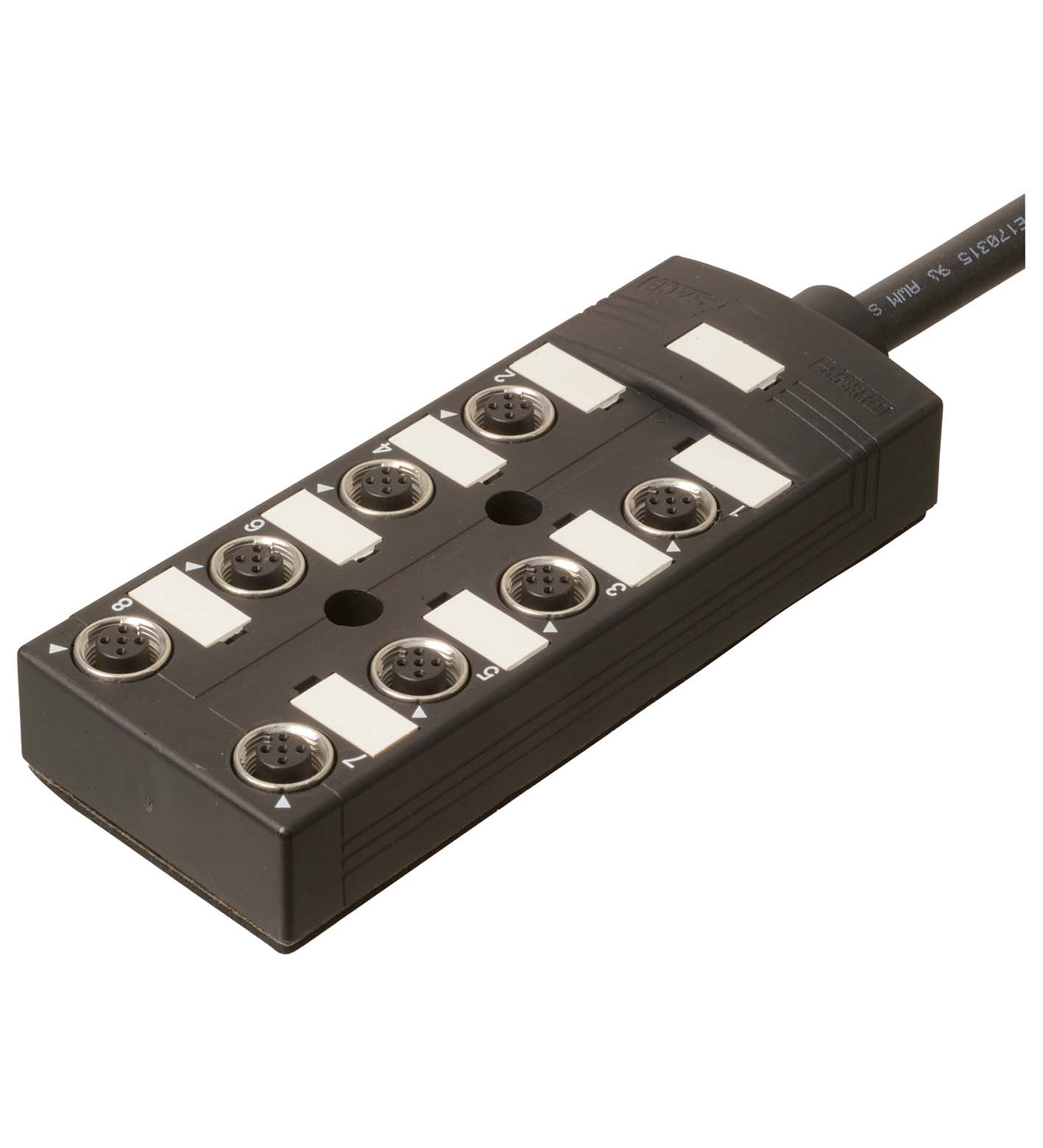

V1-8/16A-5M-PUR-O4

Splitter boxes. Splitter box octuple, twin configuration, with trunk cable. Connector 1: . ConnectionsocketConstruction type8x M12Lockingscrew connectionNumber of pins5CodingA-codedCustomization8 conn...

Splitter boxes. Splitter box octuple, twin configuration, with trunk cable. Connector 1: . ConnectionsocketConstruction type8x M12Lockingscrew connectionNumber of pins5CodingA-codedCustomization8 connections , twin configuration: . Connection: socket. Construction type: 8x M12. Locking: screw connection. Number of pins: 5. Coding: A-coded. Customization: 8 connections , twin configuration. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 48 V AC/DC. Current loading capacity: ≤ 2 A per channel,≤ 4 A per plug-in station,≤ 12 A total current per separator. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: DIN EN 50265-2-1. Oil resistance: DIN VDE 0472-803. Ambient temperature: housing: -30 ... 90 °C (-22 ... 194 °F). Cable, fixed installation-40 ... 90 °C (-40 ... 194 °F)Cable, flexing-5 ... 80 °C (23 ... 176 °F): . Cable, fixed installation: -40 ... 90 °C (-40 ... 194 °F). Cable, flexing: -5 ... 80 °C (23 ... 176 °F). Plug connector: . Tightening torque0.4 NmMating cyclesmin. 100: . Tightening torque: 0.4 Nm. Mating cycles: min. 100. Degree of protection: IP65 / IP67 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter10.5 mmBending radius> 10 x cable diameter, movable installation > 7.5 x cable diameter, fixed installationSheath colorblack (similar to RAL 9005)CoresSignal line (2, 4): 16 x 0.5 mm2 Supply line (1, 3), PE (5): 3 x 1 mm2Core constructionSignal line (2, 4): 28 x 0.15 mm Supply line (1, 3), PE (5): 56 x 0.15 mmLengthL5 mCable codeLi YY 11Y-HF: . Sheath diameter: 10.5 mm. Bending radius: > 10 x cable diameter, movable installation > 7.5 x cable diameter, fixed installation. Sheath color: black (similar to RAL 9005). Cores: Signal line (2, 4): 16 x 0.5 mm2 Supply line (1, 3), PE (5): 3 x 1 mm2. Core construction: Signal line (2, 4): 28 x 0.15 mm Supply line (1, 3), PE (5): 56 x 0.15 mm. Length: 5 m. Cable code: Li YY 11Y-HF. Drag chain suitability: . Drag chain cyclesmin. 1500000Motion velocitymax. 2 m/sTraverse distance2 m: . Drag chain cycles: min. 1500000. Motion velocity: max. 2 m/s. Traverse distance: 2 m. Mass: 1317.7 g. PWIS free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyPBT, blackSealFPMContact surfaceAu: . Screw connection: Zinc diecast, nickel-plated. Body: PBT, black. Seal: FPM. Contact surface: Au. Cable: . SheathingPURCore insulationPVCChemical resistancegoodOil resistanceyesFlammabilityflame-resistant: . Sheathing: PUR. Core insulation: PVC. Chemical resistance: good. Oil resistance: yes. Flammability: flame-resistant

Brand	Pepperl Fuchs
Lifecycle status	active
