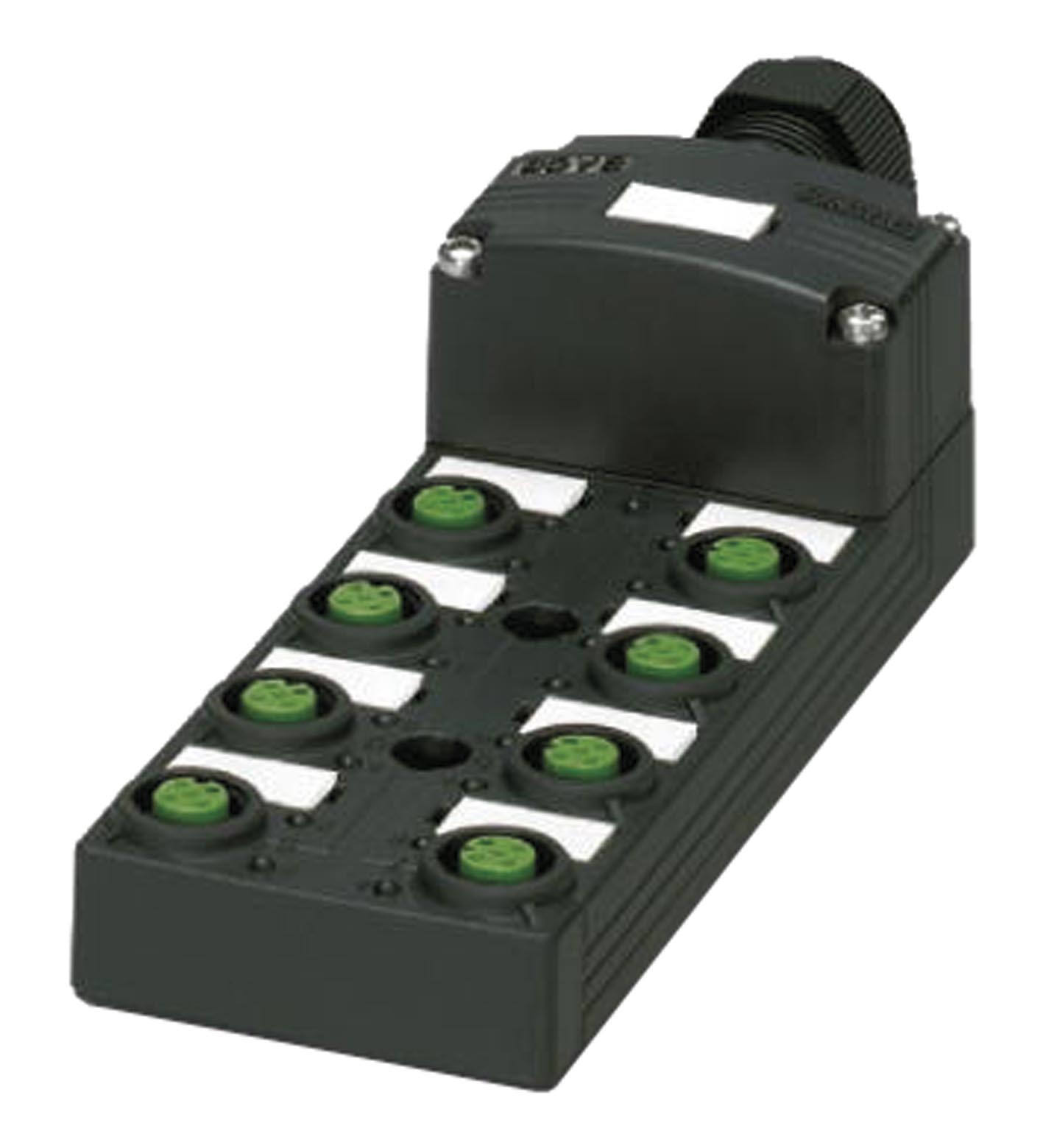

V1-8/16A-E2

Splitter boxes. Splitter box octuple, twin configuration, with cage-clamp terminals. Number of pins: 5. UL File Number: E191152. LED green: supply voltage each module. LED yellow: I/O status indicatio...

Splitter boxes. Splitter box octuple, twin configuration, with cage-clamp terminals. Number of pins: 5. UL File Number: E191152. LED green: supply voltage each module. LED yellow: I/O status indication. Operating voltage: max. 24 V DC -20 % / +25 %. Operating current: ≤ 5 mA per channel indication element. Current loading capacity: ≤ 2 A per channel,≤ 4 A per plug-in station,≤ 8 A total current per distributor. Number/Type: 8 , twin configuration. Degree of protection: EN 60529. Flammability: UL 94. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Connection type: 8 x socket M12 x 1 5-pin 1 x terminal compartment. Degree of protection: IP65 / IP67. Connection: Signal and energy: Cage tension spring terminals flexible: 0.2 mm2 ... 1 mm2 rigid: 0.2 mm2 ... 1.5 mm2 Sensor/actuator: 5-pin, M12 x 1 socket. Material: . ContactsCu alloyContact surfaceAuHousingPBTThreaded bushingsPBTSealO-ring: NBR: . Contacts: Cu alloy. Contact surface: Au. Housing: PBT. Threaded bushings: PBT. Seal: O-ring: NBR. Cable: . Sheath diameter7 mm ... 12 mm: . Sheath diameter: 7 mm ... 12 mm. Mass: 224.83 g. Flammability: V-0

Brand	Pepperl Fuchs
Lifecycle status	active
