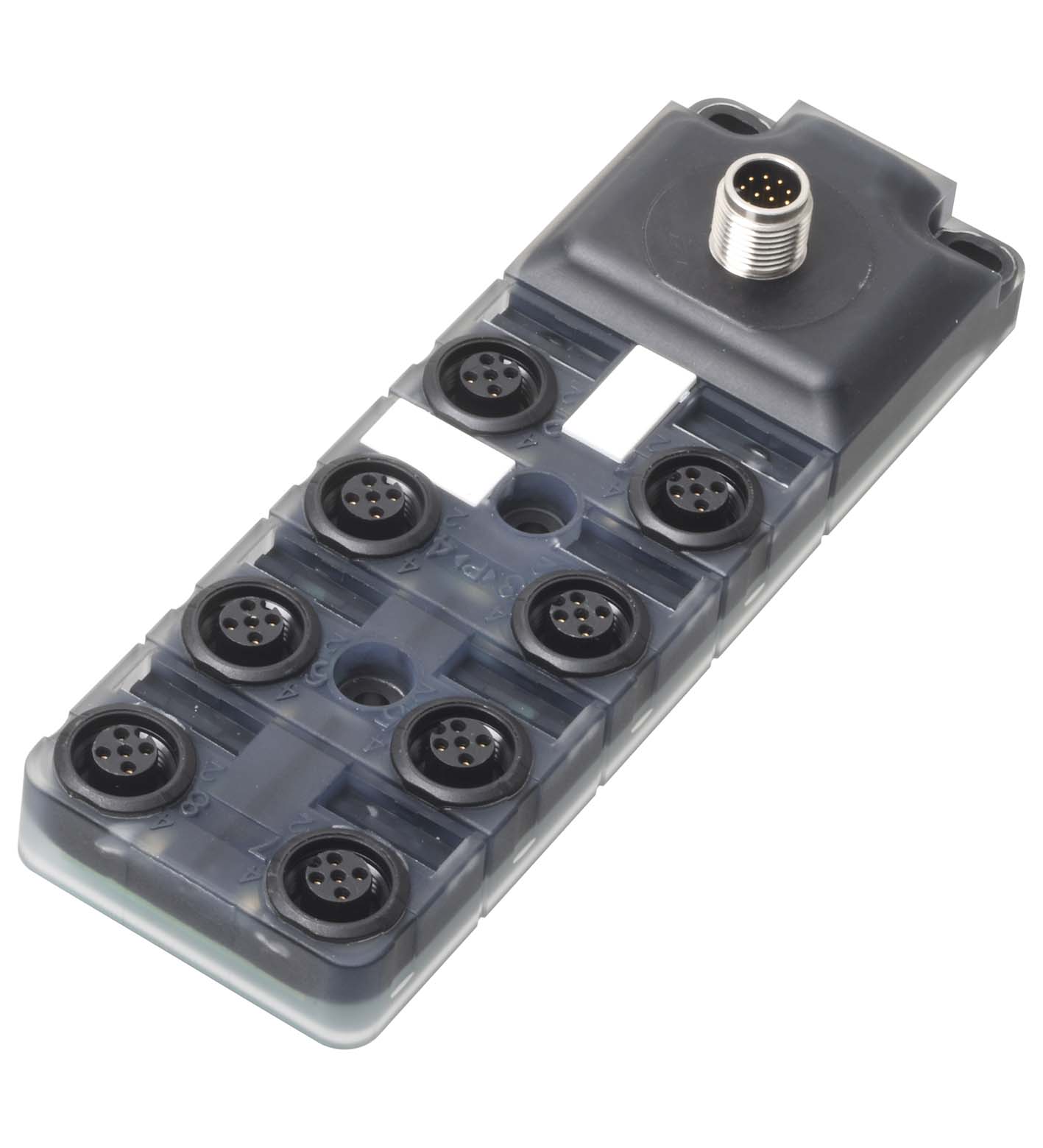

V1-8A-E2-V112

Splitter boxes. 8-way passive distributor with M12 plug, 12-pin. Connector 1: . ConnectionsocketConstruction type8x M12Lockingscrew connectionNumber of pins5CodingA-coded: . Connection: socket. Constr...

Splitter boxes. 8-way passive distributor with M12 plug, 12-pin. Connector 1: . ConnectionsocketConstruction type8x M12Lockingscrew connectionNumber of pins5CodingA-coded: . Connection: socket. Construction type: 8x M12. Locking: screw connection. Number of pins: 5. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM12Lockingscrew connectionNumber of pins12CodingA-coded: . Connection: plug. Construction type: M12. Locking: screw connection. Number of pins: 12. Coding: A-coded. UL File Number: E223772. LED green: supply voltage each module. LED yellow: I/O status indication. Operating voltage: 24 V DC. Operating current: max. 1.5 A per contact. Current loading capacity: ≤ 1.5 A per contact 1.5 A Total current. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP65 / IP67. Material: . HousingPlastic ABS, flame resistant: . Housing: Plastic ABS, flame resistant. Mass: approx. 150 g

Brand	Pepperl Fuchs
Lifecycle status	active
