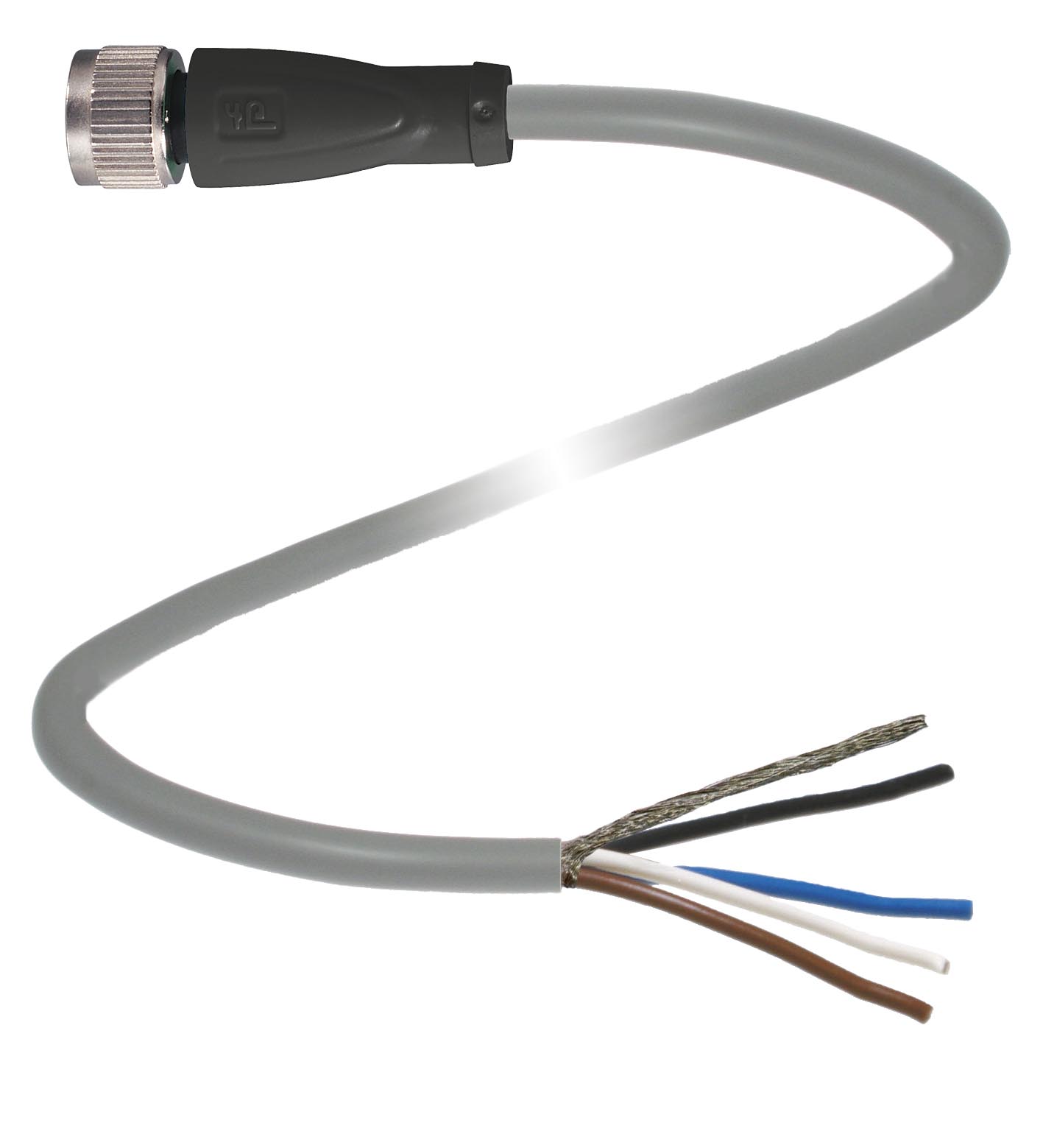

V1-G-0,5M-PUR-ABG-Y222723

Cable socket, shielded. Female cordset, M12, 4-pin, shielded, PUR cable. Number of pins: 4 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Ope...

Cable socket, shielded. Female cordset, M12, 4-pin, shielded, PUR cable. Number of pins: 4 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008FlammabilityGrip: UL 94: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Flammability: Grip: UL 94. Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F) cable, movable installation: -25 ... 80 °C (-13 ... 176 °F) cable, fixed installation: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutDiecast zincCore insolationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Core insolation: PP. Cable: fine-strand, flexible. Sheath diameter∅ 4.8 mmBending radius> 10 x cable diameter, movable installation 5 x cable diameter, single bendColorgreyCores4 x 0.34 mm2Conductor construction19 x 0.15 mm ∅Shieldgrid covering 85 %LengthL0.5 m: . Sheath diameter: ∅ 4.8 mm. Bending radius: > 10 x cable diameter, movable installation 5 x cable diameter, single bend. Color: grey. Cores: 4 x 0.34 mm2. Conductor construction: 19 x 0.15 mm ∅. Shield: grid covering 85 %. Length: 0.5 m. Flammability: . Contact carrierHBHousingV-2: . Contact carrier: HB. Housing: V-2. Note: With wire end ferrules

Brand	Pepperl Fuchs
Lifecycle status	active
