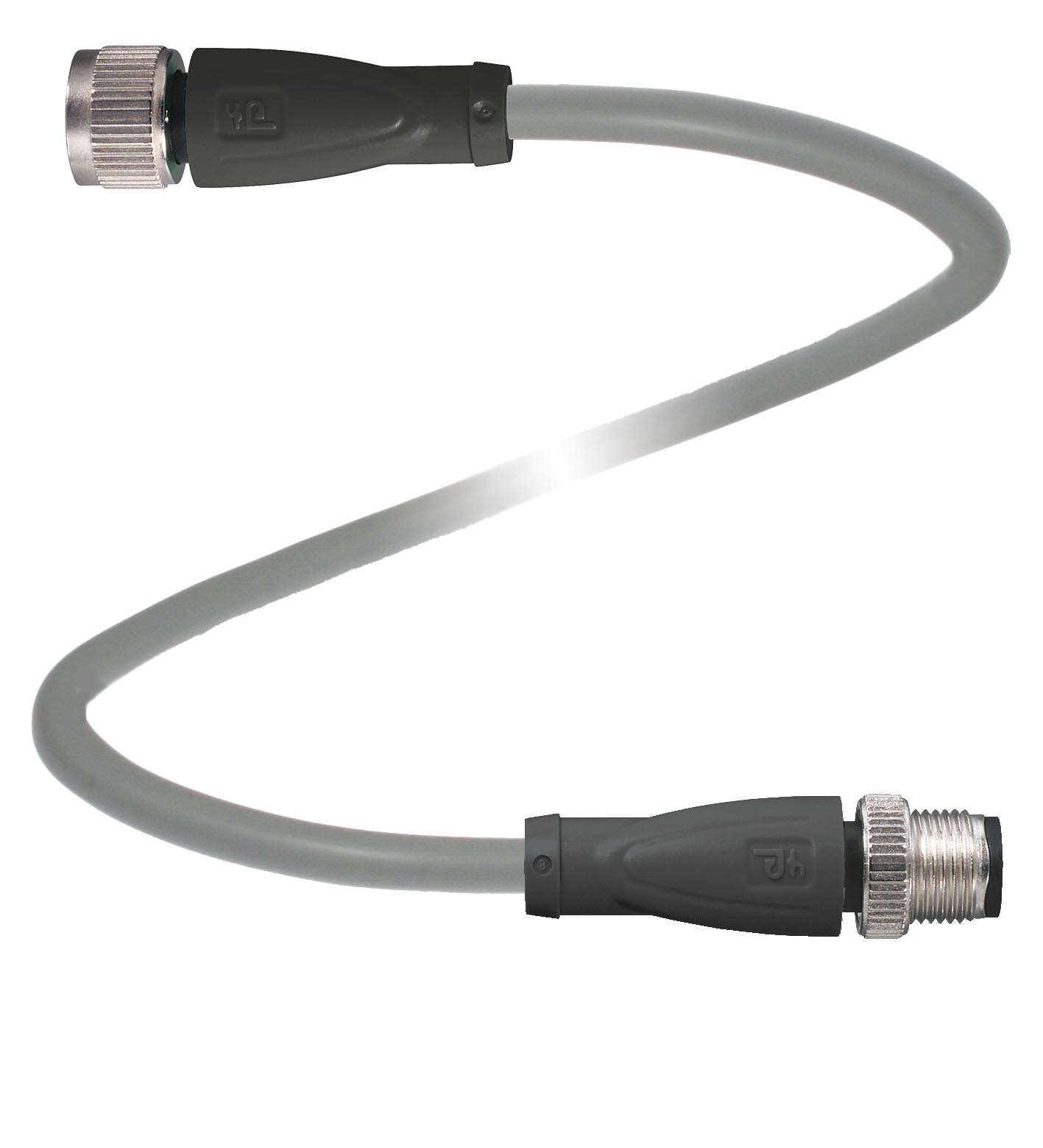

V1-G-2M-PUR-V1-G-Y301706

Connection cable. Connecting cable, M12 to M12, PUR cable 3-pin. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plug. Construction type 2: stra...

Connection cable. Connecting cable, M12 to M12, PUR cable 3-pin. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plug. Construction type 2: straight. Threading 2: M12. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F) cable, movable installation: -30 ... 80 °C (-22 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67 / IP68 / IP69k. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutDiecast zincSleeve connectorDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Sleeve connector: Diecast zinc. Core insulation: PP. Cable: fine-strand, flexible. Sheath diameter∅ 4.8 mmBending radius> 10 x cable diameter, movable installationColorgreyNumber of cores3Core cross section0.34 mm2Conductor construction19 x 0.15 mm ∅LengthL2 m: . Sheath diameter: ∅ 4.8 mm. Bending radius: > 10 x cable diameter, movable installation. Color: grey. Number of cores: 3. Core cross section: 0.34 mm2. Conductor construction: 19 x 0.15 mm ∅. Length: 2 m. Mass: 76 g. Flammability: . Contact carrier94 HBHousing94 V-2: . Contact carrier: 94 HB. Housing: 94 V-2

Brand	Pepperl Fuchs
Lifecycle status	active
