V1-G-5M-PUR-ABG-SUBD15

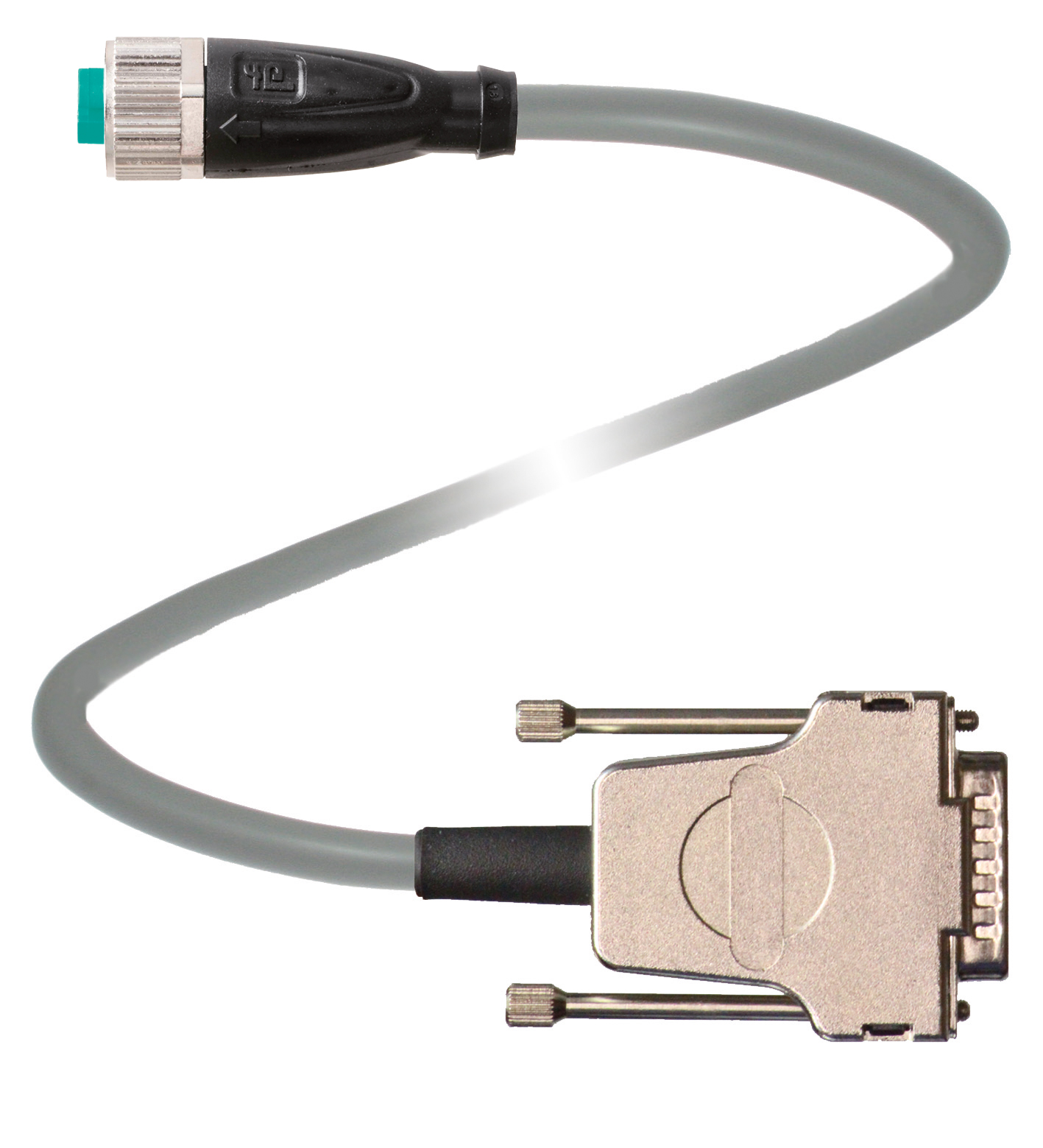

Adapter cable. Adapter cable M12 socket straight A-coded 4-pin to Sub-D-plug 15-pin, PUR cable grey, shielded. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeSub-DStylestraightLockingscrew connectionNumber of pins15: . Connection: plug. Construction type: Sub-D. Style: straight. Locking: screw connection. Number of pins: 15. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101 Connector Sub-D : IEC 807-2. Halogen-free: DIN VDE 0472-815 DIN EN 50267-2-1. Lead-free: RoHS directive 2011/65/EU. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-55 ... 130 °C (-67 ... 266 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -55 ... 130 °C (-67 ... 266 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 1. Connector 1: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP66 / IP68 / IP69: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP66 / IP68 / IP69. Connector 2: . Tightening torque0.4 NmLoosening protectionscrews UNC 4-40Mating cyclesmin. 100Shieldingshield connected to connectorDegree of protectionIP20: . Tightening torque: 0.4 Nm. Loosening protection: screws UNC 4-40. Mating cycles: min. 100. Shielding: shield connected to connector. Degree of protection: IP20. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.8 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 100 N / 300 mmSheath colorgrey (similar to RAL 7001)Number of cores4Core cross section0.34 mm2Cores colorCore 1-14: brown Core 2-3: white Core 3-9: blue Core 4-5: blackCore construction19 x 0.15 mm ∅Shieldtinned copper braiding, 85 % coverageLengthL5 mCable codeLi 9Y 11YM 4 x 0.34: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 100 N / 300 mm. Sheath color: grey (similar to RAL 7001). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1-14: brown Core 2-3: white Core 3-9: blue Core 4-5: black. Core construction: 19 x 0.15 mm ∅. Shield: tinned copper braiding, 85 % coverage. Length: 5 m. Cable code: Li 9Y 11YM 4 x 0.34. Mass: 215.2 g. Halogen-free: yes. Lead-free: yes. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: gold plated (Au). Flammability: V-2. Connector 2: . Bodynickel-plated steelContact surfaceCu alloyFlammabilityV-0: . Body: nickel-plated steel. Contact surface: Cu alloy. Flammability: V-0. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPChemical resistancegood: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Chemical resistance: good. Cable marking sleeve: 1x PUR transparent , fixed to cable

Brand	Pepperl Fuchs
Lifecycle status	active
