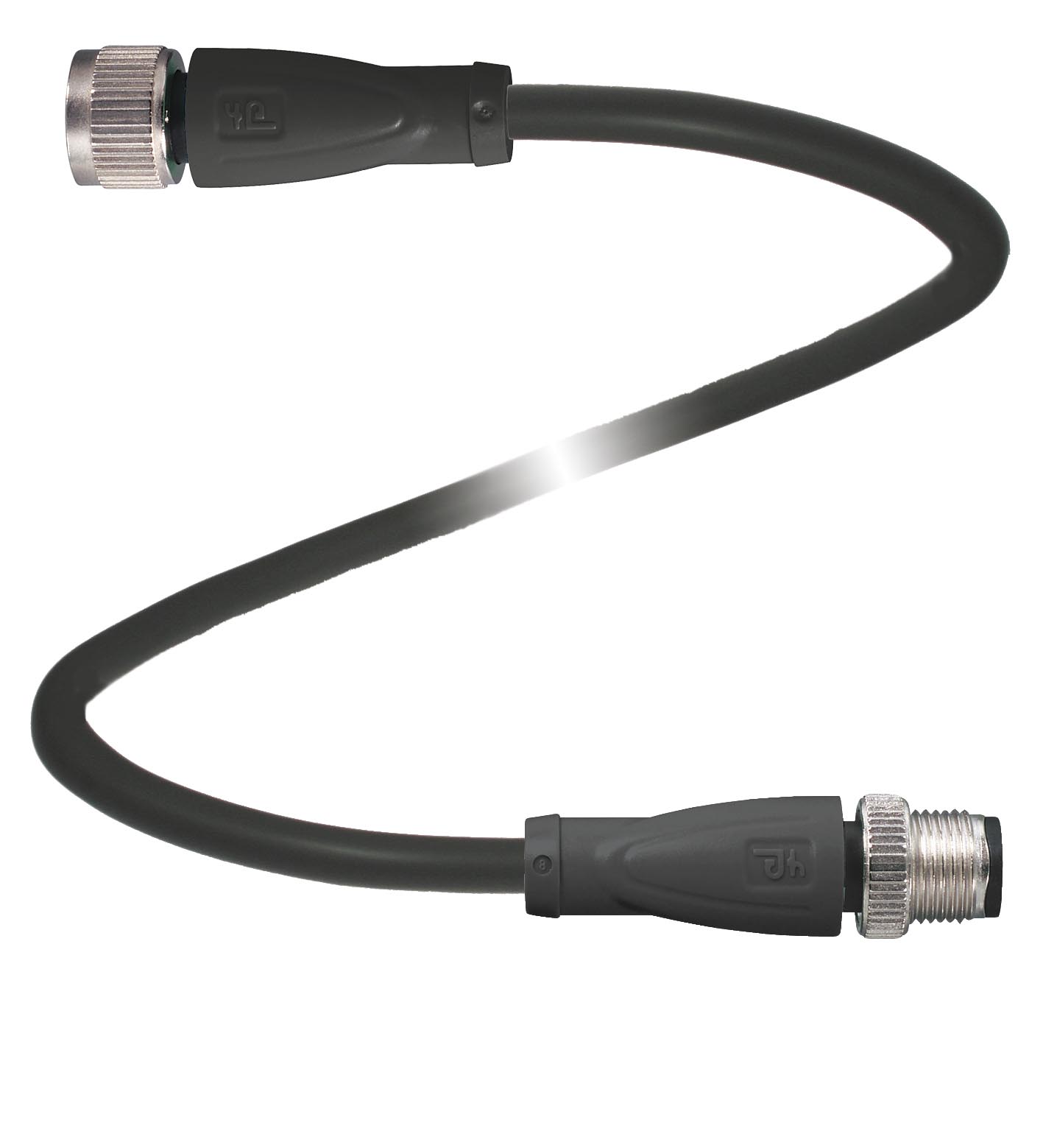

V1-G-BK0,15M-PUR-U/0,5-V1-G-Y

Connection cable. Connecting cable, M12 to M12, PUR cable 2-pin. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plug. Construction type 2: stra...

Connection cable. Connecting cable, M12 to M12, PUR cable 2-pin. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plug. Construction type 2: straight. Threading 2: M12. UL File Number: E231213. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Contact resistance: < 10 mΩ. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008FlammabilityBody: UL 94Line: UL 1581 Section 1061; IEC 60332-1-2:2004Halogen-freeIEC 60754-1:1994: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Flammability: Body: UL 94Line: UL 1581 Section 1061; IEC 60332-1-2:2004. Halogen-free: IEC 60754-1:1994. UL approval: UL Recognized General purpose. Maximum permissible operating voltagemax. 30 VMaximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible operating voltage: max. 30 V. Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Ambient temperature: -40 ... 90 °C (-40 ... 194 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F) cable, movable installation: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67 / IP68 / IP69k. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutDiecast zincSleeve connectorDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Sleeve connector: Diecast zinc. Core insulation: PP. Cable: fine-strand, flexible. Sheath diameter∅ 4.3 mmBending radius> 15 x cable diameter, movable installation > 8 x cable diameter, fixed installationColorblackCores2 x 0.5 mm2Conductor construction16 x 0.2 mm ∅LengthL0.15 m: . Sheath diameter: ∅ 4.3 mm. Bending radius: > 15 x cable diameter, movable installation > 8 x cable diameter, fixed installation. Color: black. Cores: 2 x 0.5 mm2. Conductor construction: 16 x 0.2 mm ∅. Length: 0.15 m. Mass: 25.54 g. Flammability: . Contact carrier94 HBHousing94 V-2CableFT2: . Contact carrier: 94 HB. Housing: 94 V-2. Cable: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
