Pepperl Fuchs

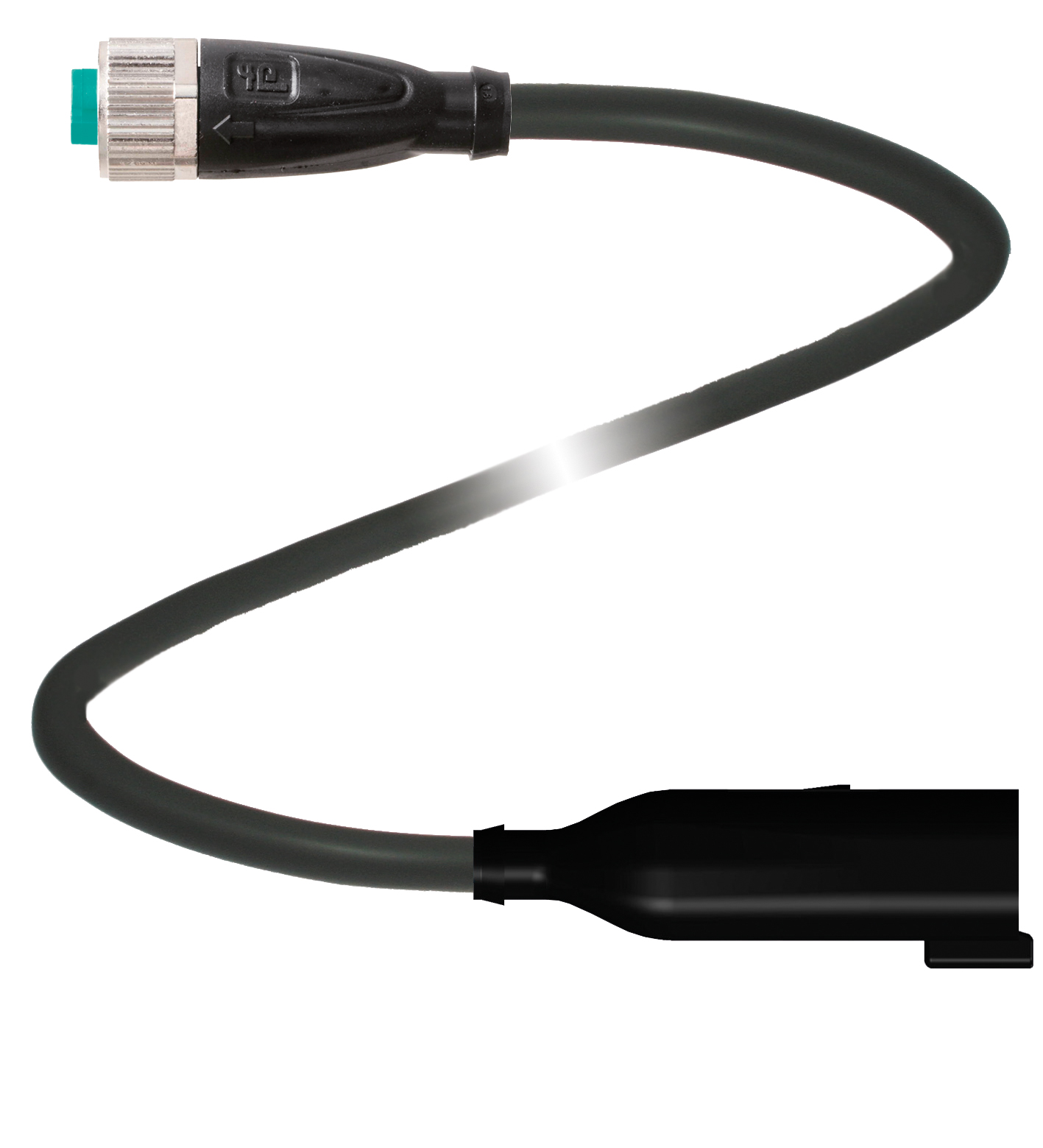

V1-G-BK0,3M-PUR-O1-DT4P-G

Adapter cable. Adapter cable M12 socket straight A-coded to Deutsch plug straight, 4-pin, PUR cable black, drag chain suitable, outdoor. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins4: . Connection: plug. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 4. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815 / DIN EN 50267-2-1. Lead-free: RoHS directive 2011/65/EU. Oil resistance: DIN EN 60811-2-1. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-40 ... 125 °C (-40 ... 257 °F)Cable, fixed installation-50 ... 105 °C (-58 ... 221 °F)Cable, flexing-30 ... 105 °C (-22 ... 221 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -40 ... 125 °C (-40 ... 257 °F). Cable, fixed installation: -50 ... 105 °C (-58 ... 221 °F). Cable, flexing: -30 ... 105 °C (-22 ... 221 °F). Pollution degree: 3. Connector 1: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Degree of protectionIP66 / IP68 / IP69: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP66 / IP68 / IP69. Connector 2: . Loosening protectionintegratedDegree of protectionIP68: . Loosening protection: integrated. Degree of protection: IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.8 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colorblack (similar to RAL 7021)Number of cores4Core cross section0.5 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackCore construction28 x 0.15 mm ∅ 1 x symmetrically twistedLengthL0.3 mCable codeLi 9Y 11Y 4 x 0,50: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: black (similar to RAL 7021). Number of cores: 4. Core cross section: 0.5 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Core construction: 28 x 0.15 mm ∅ 1 x symmetrically twisted. Length: 0.3 m. Cable code: Li 9Y 11Y 4 x 0,50. Drag chain suitability: . Drag chain cyclesmin. 2000000Motion velocitymax. 3 m/sTraverse distancemax. 10 mAccelerationmax. 10 m/s2: . Drag chain cycles: min. 2000000. Motion velocity: max. 3 m/s. Traverse distance: max. 10 m. Acceleration: max. 10 m/s2. Mass: 37.23 g. Halogen-free: yes. Lead-free: yes. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: gold plated (Au). Flammability: V-2. Connector 2: . BodyPA, blackContact surfaceNiFlammabilityV-0: . Body: PA, black. Contact surface: Ni. Flammability: V-0. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPSalt water resistanceyesUV resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Salt water resistance: yes. UV resistance: yes. Chemical resistance: good. Oil resistance: yes. Cooling lubricant resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
