V1-G-BK5M-PVC-U-YV96

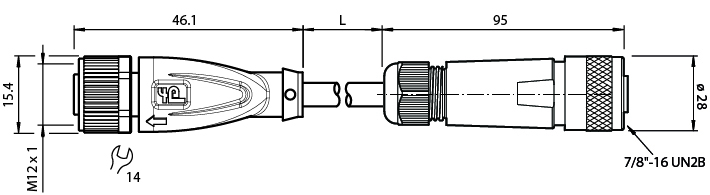

Connection cable. Cordset M12 socket straight A-coded 4-pin to 7/8-16" socket straight A-coded 6-pin, PVC cable black. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew conn...

Connection cable. Cordset M12 socket straight A-coded 4-pin to 7/8-16" socket straight A-coded 6-pin, PVC cable black. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . ConnectionsocketConstruction type7/8 inch - 16 UNFStylestraightLockingscrew connectionNumber of pins6CodingA-coded: . Connection: socket. Construction type: 7/8 inch - 16 UNF. Style: straight. Locking: screw connection. Number of pins: 6. Coding: A-coded. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-25 ... 80 °C (-13 ... 176 °F)Cable, fixed installation-25 ... 80 °C (-13 ... 176 °F)Cable, flexing-5 ... 80 °C (23 ... 176 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -25 ... 80 °C (-13 ... 176 °F). Cable, fixed installation: -25 ... 80 °C (-13 ... 176 °F). Cable, flexing: -5 ... 80 °C (23 ... 176 °F). Connector 1: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Degree of protectionIP67: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP67. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.3 mmBending radius> 15 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colorblack (similar to RAL 9005)Core cross section0.34 mm2Cores colorCore 1-4: brown Core 2-2: white Core 3-6: blue Core 4-3: blackCore construction19 x 0.15 mm ∅LengthL5 mCable codeLi YY 4 x 0,34: . Sheath diameter: 4.3 mm. Bending radius: > 15 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: black (similar to RAL 9005). Core cross section: 0.34 mm2. Cores color: Core 1-4: brown Core 2-2: white Core 3-6: blue Core 4-3: black. Core construction: 19 x 0.15 mm ∅. Length: 5 m. Cable code: Li YY 4 x 0,34. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Connector 2: . Screw connectionbrass nickel-platedBodyPA, blackSealNBRContact surfaceAu: . Screw connection: brass nickel-plated. Body: PA, black. Seal: NBR. Contact surface: Au. Cable: . SheathingPVCCore insulationPVCFlammabilityFT1: . Sheathing: PVC. Core insulation: PVC. Flammability: FT1

Brand	Pepperl Fuchs
Lifecycle status	active
