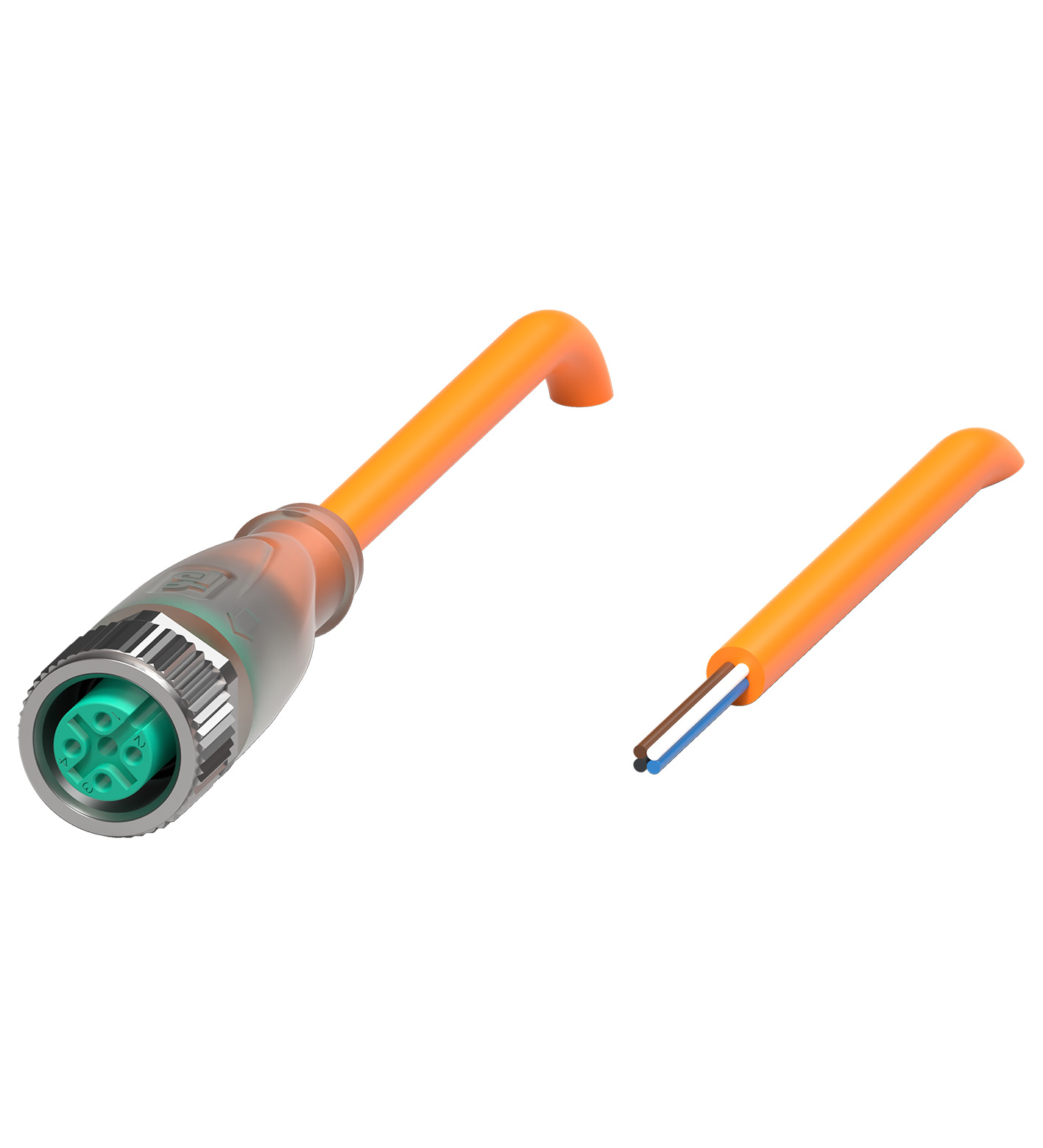

V1-G-E8W-OR5M-POC

Female cordset. Female cordset single-ended M12 straight A-coded, LED 4-pin, POC cable welding-bead resistant orange, suitable for robotic applications, torsion resistant, oil resistant, molecularly c...

Female cordset. Female cordset single-ended M12 straight A-coded, LED 4-pin, POC cable welding-bead resistant orange, suitable for robotic applications, torsion resistant, oil resistant, molecularly cross-linked. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. LED green: Operating display. LED yellow: Functional display pin 4. LED white: Functional display pin 2. Operating voltage: max. 24 V DC -20 % / +25 %. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: IEC 60332-1-2 , ISO 14572 , ISO 6722. Halogen-free: IEC 60754-2. Hydrolysis resistance: ISO 6722. Oil resistance: ISO 14572. Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 120 °C (-40 ... 248 °F) for 20000 h-40 ... 150 °C (-40 ... 302 °F) for 3000 hCable, flexing-15 ... 120 °C (5 ... 248 °F) for 20000 h-15 ... 150 °C (5 ... 302 °F) for 3000 h: . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -40 ... 120 °C (-40 ... 248 °F) for 20000 h-40 ... 150 °C (-40 ... 302 °F) for 3000 h. Cable, flexing: -15 ... 120 °C (5 ... 248 °F) for 20000 h-15 ... 150 °C (5 ... 302 °F) for 3000 h. Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP66 / IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.8 mmBending radius> 10 x cable diameter, movable installation > 10 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colororange (similar to RAL 2003)Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackCore construction19 x 0.16 mm ∅LengthL5 mCable codeLi 7Y 41X 4 x 0,34: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, movable installation > 10 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: orange (similar to RAL 2003). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Core construction: 19 x 0.16 mm ∅. Length: 5 m. Cable code: Li 7Y 41X 4 x 0,34. Drag chain suitability: . Torsion cyclesmin. 300000Torsional stress± 360 °/ 30 cm: . Torsion cycles: min. 300000. Torsional stress: ± 360 °/ 30 cm. Mass: 108.88 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, transparentSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, transparent. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPOCCoresbare copper (Cu)Core insulationETFEWelding-bead resistanceyesWeld spatter resistanceyesOil resistanceyesHydrolysis resistanceyesFlammabilityflame-resistantMolecularly cross-linkedyes: . Sheathing: POC. Cores: bare copper (Cu). Core insulation: ETFE. Welding-bead resistance: yes. Weld spatter resistance: yes. Oil resistance: yes. Hydrolysis resistance: yes. Flammability: flame-resistant. Molecularly cross-linked: yes. Cable marking sleeve: 1x PUR transparent , fixed to cable

Brand	Pepperl Fuchs
Lifecycle status	active
