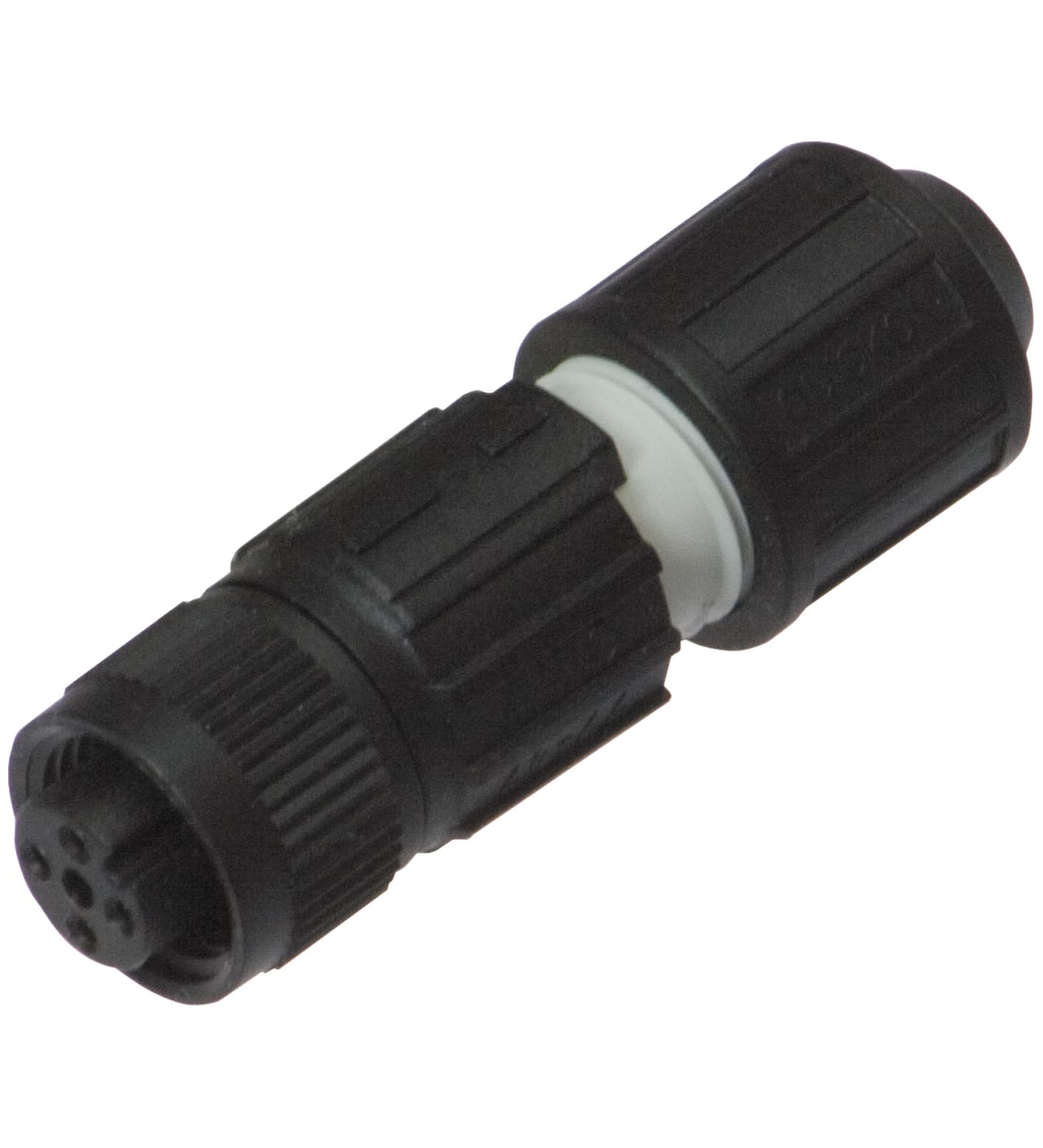

V1-G-Q3

Female connector, field-attachable. Female connector M12 straight A-coded 4-pin, for cable diameter 3.5 - 6 mm, field-attachable, insulation displacement connection. Connector 1: . ConnectionsocketCon...

Female connector, field-attachable. Female connector M12 straight A-coded 4-pin, for cable diameter 3.5 - 6 mm, field-attachable, insulation displacement connection. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Operating voltage: max. 125 V AC/DC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. UL File Number: E191152. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.4 Nm. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP65 / IP67. Connection: Insulation displacement connection for 0.14 ... 0.34 mm2 / AWG 26 ... AWG 22. Cable: . Sheath diameter3.5 ... 6 mmCores∅ 0.7 ... 1.6 mm incl. insulationCross-section: 0.14 ... 0.34 mm2Cable construction: Class 2-6 in accordance with VDE 0295Core cross section0.34 mm2 / 22 AWG max.: . Sheath diameter: 3.5 ... 6 mm. Cores: ∅ 0.7 ... 1.6 mm incl. insulationCross-section: 0.14 ... 0.34 mm2Cable construction: Class 2-6 in accordance with VDE 0295. Core cross section: 0.34 mm2 / 22 AWG max.. Mass: 11.4 g. Mounting: max. tightening torque on the coupling nut: ≤ 1.2 Nm. Note: max. 10 connections possible to a cable of the same cross-section. After repeated cable connection it may be necessary to renew the seal and cap.. Plug connector: . Screw connectionPlasticBodyPA 66, blackSealNBRContact surfaceNi/AuFlammabilityV-0: . Screw connection: Plastic. Body: PA 66, black. Seal: NBR. Contact surface: Ni/Au. Flammability: V-0. Cable: . Core insulationPVC/PE/PP: . Core insulation: PVC/PE/PP

Brand	Pepperl Fuchs
Lifecycle status	active
