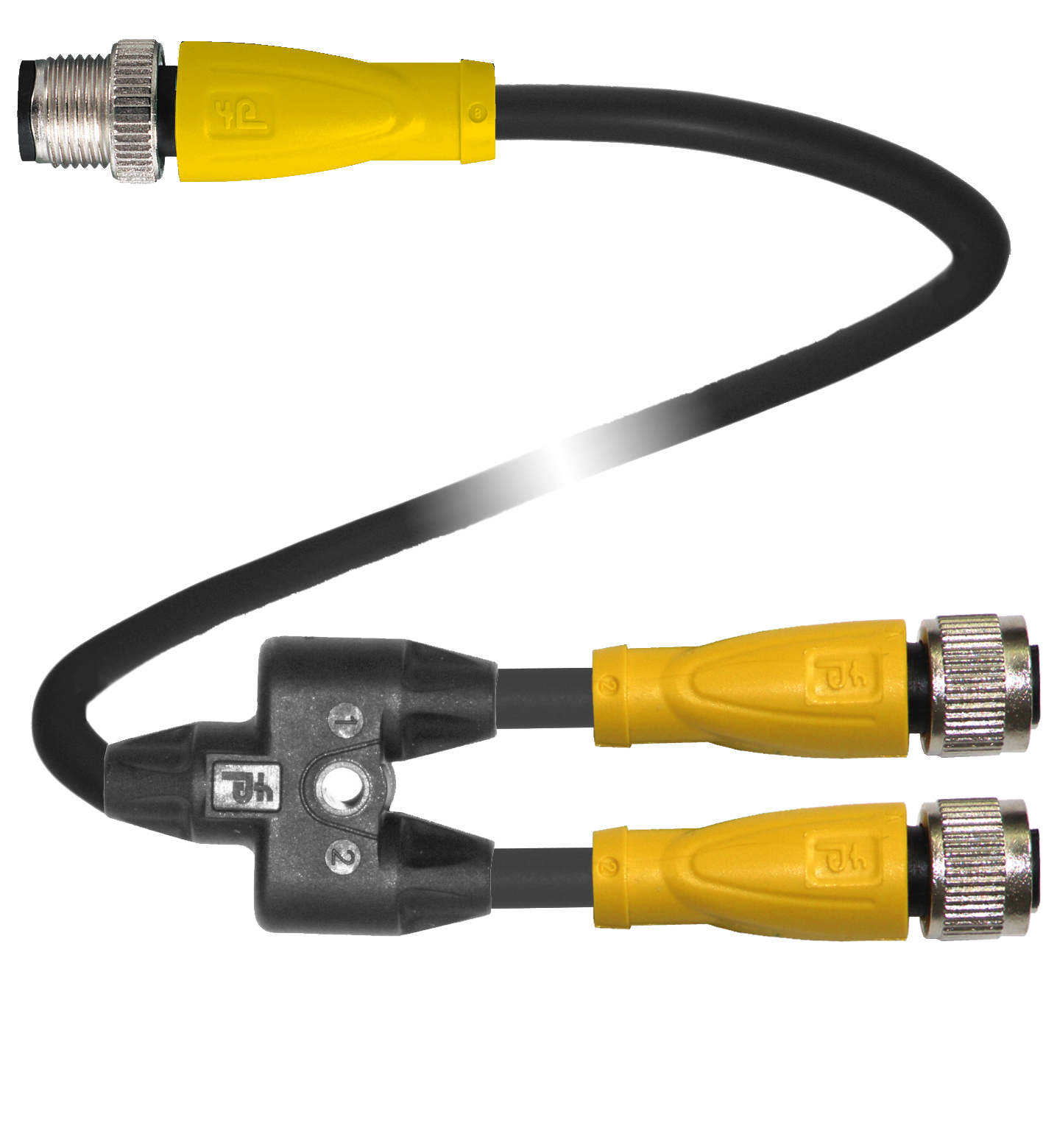

V1-G-S-3/7M-T-0,6M-PUR-A-V1-G

Y connection cable. Y connection cable M12 plug yellow straight A-coded 4-pin to 2x M12 socket yellow straight A-coded 4-pin, 3x PUR cable weld spatter resistant black, UL approved, drag chain suitabl...

Y connection cable. Y connection cable M12 plug yellow straight A-coded 4-pin to 2x M12 socket yellow straight A-coded 4-pin, 3x PUR cable weld spatter resistant black, UL approved, drag chain suitable, torsion resistant. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 3: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. UL File Number: E231213. Operating voltage: max. 30 V AC/DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815 IEC 60754-1. Microbial resistance: DIN EN 50525-2-21 / DIN VDE 0282-10. Hydrolysis resistance: DIN EN 50525-2-21. UL approval: AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable). Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP67 / IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.3 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 80 N / 300 mmSheath colorblack (similar to RAL 9005)Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackCore construction42 x 0.1 mm ∅LengthLL1 = 3 mL2 = 7 mL3 = 0.6 mCable codeLi F 9Y 11Y 4 x 0,34: . Sheath diameter: 4.3 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 80 N / 300 mm. Sheath color: black (similar to RAL 9005). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Core construction: 42 x 0.1 mm ∅. Length: L1 = 3 mL2 = 7 mL3 = 0.6 m. Cable code: Li F 9Y 11Y 4 x 0,34. Drag chain suitability: . Drag chain cyclesmin. 5000000Motion velocitymax. 3.3 m/sTraverse distancemax. 5 mAccelerationmax. 5 m/s2Torsion cyclesmin. 1000000Torsional stress± 180 °/m: . Drag chain cycles: min. 5000000. Motion velocity: max. 3.3 m/s. Traverse distance: max. 5 m. Acceleration: max. 5 m/s2. Torsion cycles: min. 1000000. Torsional stress: ± 180 °/m. Mass: 329 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, yellowContact surfaceAuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, yellow. Contact surface: Au. Flammability: V-2. Cable: . SheathingPUR based on polyetherCore insulationPPWeld spatter resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Core insulation: PP. Weld spatter resistance: yes. Chemical resistance: good. Oil resistance: yes. Cooling lubricant resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
