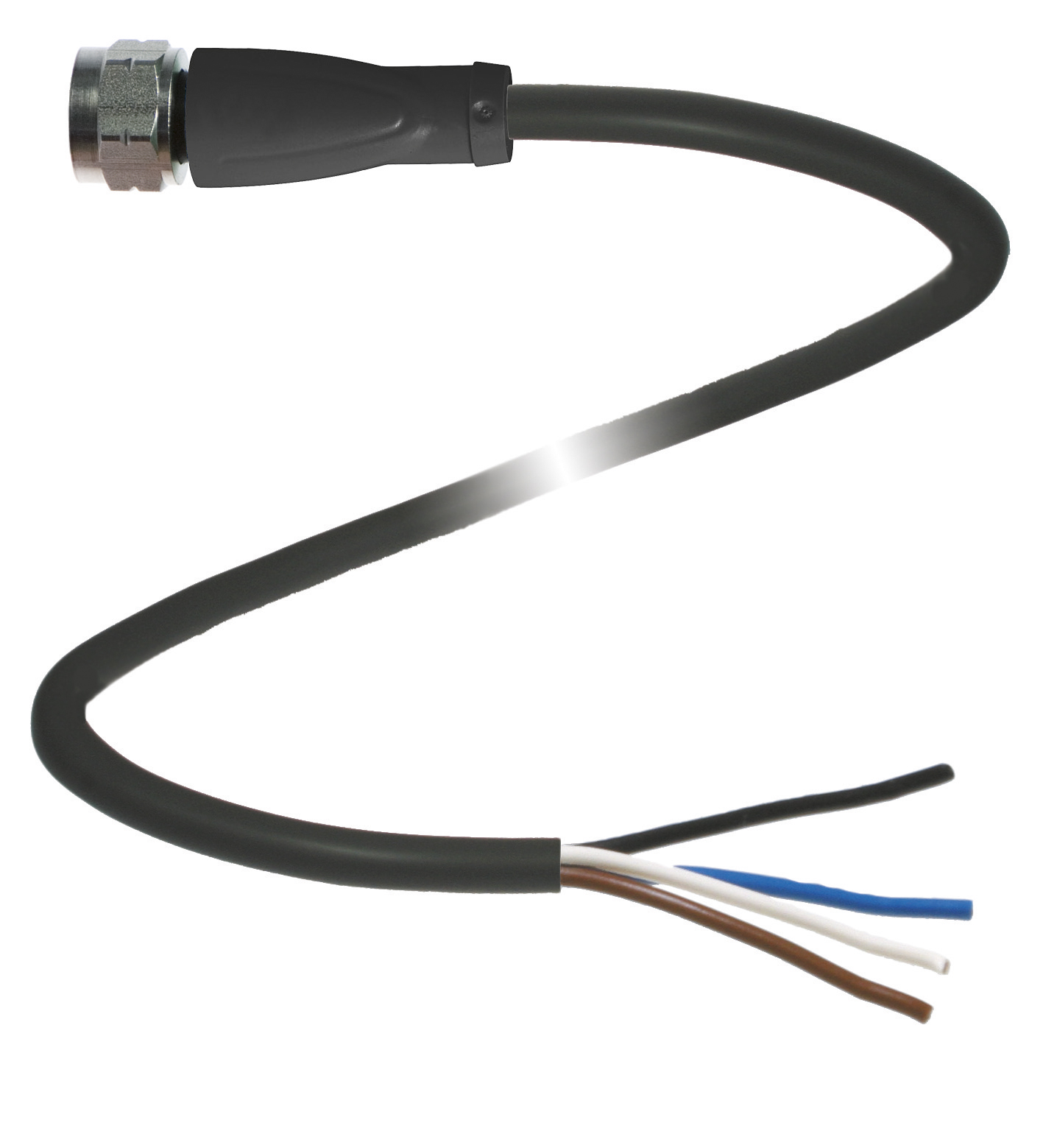

V1-GV4A-BK5M-PUR-U-PIP

Female connector. Female cordset, M12, Stainless steel V4A, 4-pin, PUR cable. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. UL File...

Female connector. Female cordset, M12, Stainless steel V4A, 4-pin, PUR cable. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. UL File Number: E231213. Operating voltage: max. 250 V AC/DC. Test voltage: > 1500 V eff AC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008FlammabilityBody: UL 94Line: UL 1581 Section 1061; IEC 60332-1-2:2004Halogen-freeIEC 60754-1:1994: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Flammability: Body: UL 94Line: UL 1581 Section 1061; IEC 60332-1-2:2004. Halogen-free: IEC 60754-1:1994. UL approval: AWM STYLE 20549 I/II A/B 80°C 300V FT2 (cable). Maximum permissible operating voltagemax. 30 VMaximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible operating voltage: max. 30 V. Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F) cable, movable installation: -25 ... 80 °C (-13 ... 176 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67 / IP68 / IP69k. Cable code: Li 9Y 11Y 4 x 0.34. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutStainless steel 1.4435 / AISI 316LCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Stainless steel 1.4435 / AISI 316L. Core insulation: PP. Cable: extra-fine wire, flexible. Sheath diameter∅ 4.3 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationColorblackCores4 x 0.34 mm2Conductor construction42 x 0.1 mm ∅LengthL5 m: . Sheath diameter: ∅ 4.3 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Color: black. Cores: 4 x 0.34 mm2. Conductor construction: 42 x 0.1 mm ∅. Length: 5 m. Drag chain suitability: . Drag chain cyclesmin. 5000000Motion velocitymax. 3.3 m/sTorsional stress± 180 °/m: . Drag chain cycles: min. 5000000. Motion velocity: max. 3.3 m/s. Torsional stress: ± 180 °/m. Mass: 142.2 g. Flammability: . Contact carrier94 HBHousing94 V-2CableFT2: . Contact carrier: 94 HB. Housing: 94 V-2. Cable: FT2. Note:

Brand	Pepperl Fuchs
Lifecycle status	active
