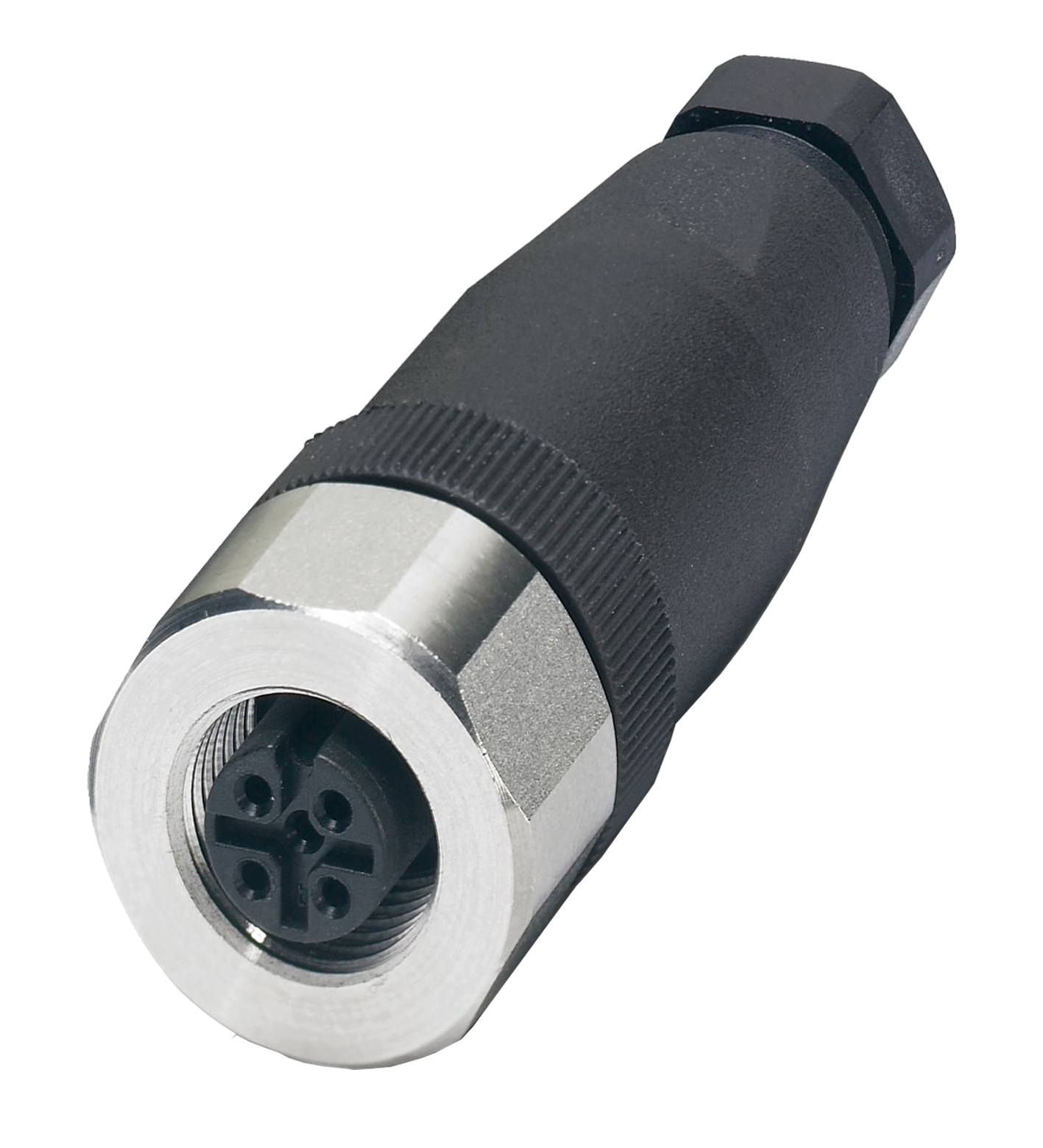

V1-GV4A-PG7

Female connector, field-attachable. Female connector M12 straight A-coded 4-pin, for cable diameter 4 - 6 mm, field-attachable, screw connection stainless steel. Connector 1: . ConnectionsocketConstru...

Female connector, field-attachable. Female connector M12 straight A-coded 4-pin, for cable diameter 4 - 6 mm, field-attachable, screw connection stainless steel. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Surge protection: Category II. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmTool installationstraight knurling , hexagon nut SW = 18 mmMating cyclesmin. 100: . Tightening torque: 0.4 Nm. Tool installation: straight knurling , hexagon nut SW = 18 mm. Mating cycles: min. 100. Degree of protection: IP65 / IP67 / IP69K. Connection: screw terminals for 0.25 ... 0.75 mm2 / AWG 24 ... AWG 18 without wire end ferrule screw terminals for 0.14 ... 0.75 mm2 / AWG 26 ... AWG 20 with wire end ferrule PG7 cable gland. Cable: . Sheath diameter4 ... 6 mmCore cross section0.75 mm2 / 20 AWG max.: . Sheath diameter: 4 ... 6 mm. Core cross section: 0.75 mm2 / 20 AWG max.. Installation: screw terminals 0.2 Nm pressure nut 0.8 ... 1 Nm. Mass: 26.3 g. Plug connector: . Screw connectionStainless steel 1.4404 / AISI 316LBodyPA, blackSealNBRContact surfacegold plated (Au): . Screw connection: Stainless steel 1.4404 / AISI 316L. Body: PA, black. Seal: NBR. Contact surface: gold plated (Au)

Brand	Pepperl Fuchs
Lifecycle status	active
