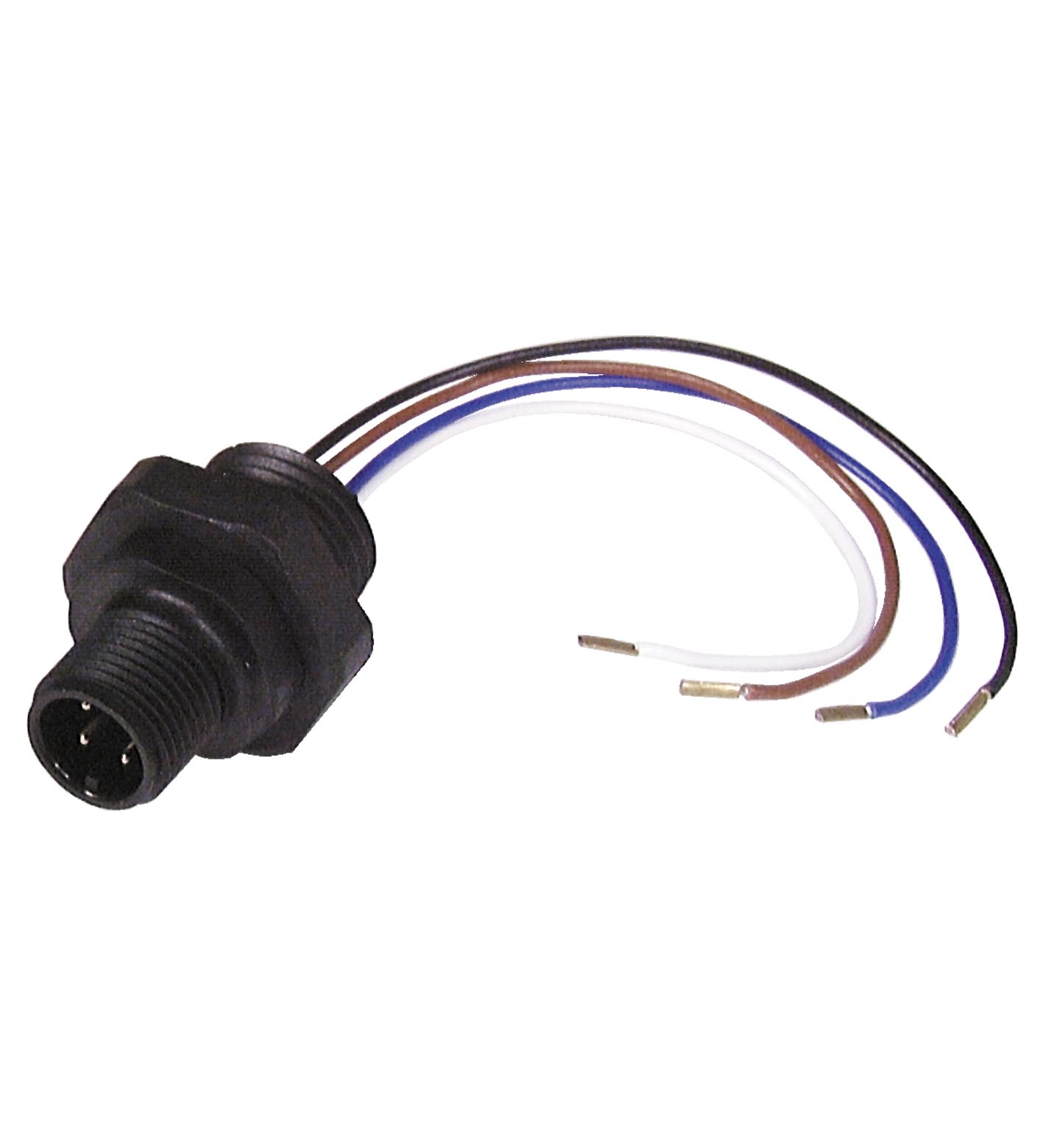

V1-M20-80

Receptacles. Receptacles, M12/M20; plastic version. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: plug. Construction...

Receptacles. Receptacles, M12/M20; plastic version. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 3 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Degree of protection: IP67 when sealing with O-Ring. Cable: . Number of cores4Core cross section0.25 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackConductor constructionSingle strand leads with connector sleevesLengthL80 mm: . Number of cores: 4. Core cross section: 0.25 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Conductor construction: Single strand leads with connector sleeves. Length: 80 mm. Installation: Front mounting M20. Mass: 14 g. Plug connector: . Screw connectionPA 66: . Screw connection: PA 66. Cable: . Core insulationPVC: . Core insulation: PVC

Brand	Pepperl Fuchs
Lifecycle status	active
