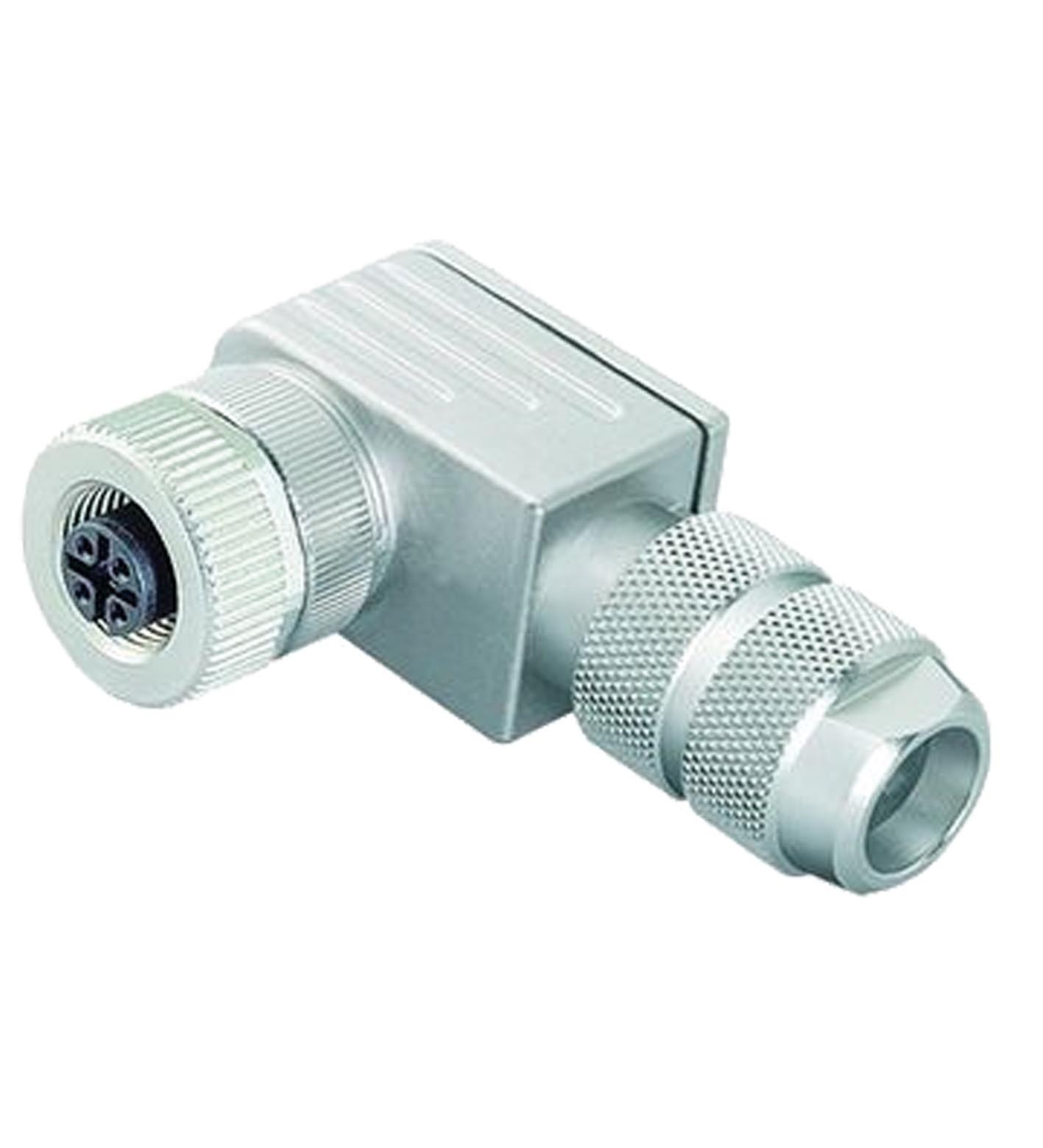

V1-W-ABG-PG9

Female connector, field-attachable. Female connector M12 angled A-coded 4-pin, for cable diameter 5 - 8 mm, shielded, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLo...

Female connector, field-attachable. Female connector M12 angled A-coded 4-pin, for cable diameter 5 - 8 mm, shielded, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingA-codedCustomizationCoding rotateable in steps of 90°: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 4. Coding: A-coded. Customization: Coding rotateable in steps of 90°. Operating voltage: max. 250 V AC/DC. Operating current: 4 A. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. UL File Number: E363587. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmTool installationstraight knurling , hexagon nut SW = 18 mmMating cyclesmin. 100Shieldingiris spring shielding: . Tightening torque: 0.6 Nm. Tool installation: straight knurling , hexagon nut SW = 18 mm. Mating cycles: min. 100. Shielding: iris spring shielding. Degree of protection: IP67. Connection: screw terminals for max. 0.75 mm2 / AWG 18. Cable: . Sheath diameter5 ... 8 mmCore cross section0.75 mm2 / 18 AWG max.: . Sheath diameter: 5 ... 8 mm. Core cross section: 0.75 mm2 / 18 AWG max.. Mass: 69.74 g. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-platedSealNBR , FKMContact surfaceAu: . Screw connection: Zinc diecast, nickel-plated. Body: Zinc diecast, nickel-plated. Seal: NBR , FKM. Contact surface: Au

Brand	Pepperl Fuchs
Lifecycle status	active
