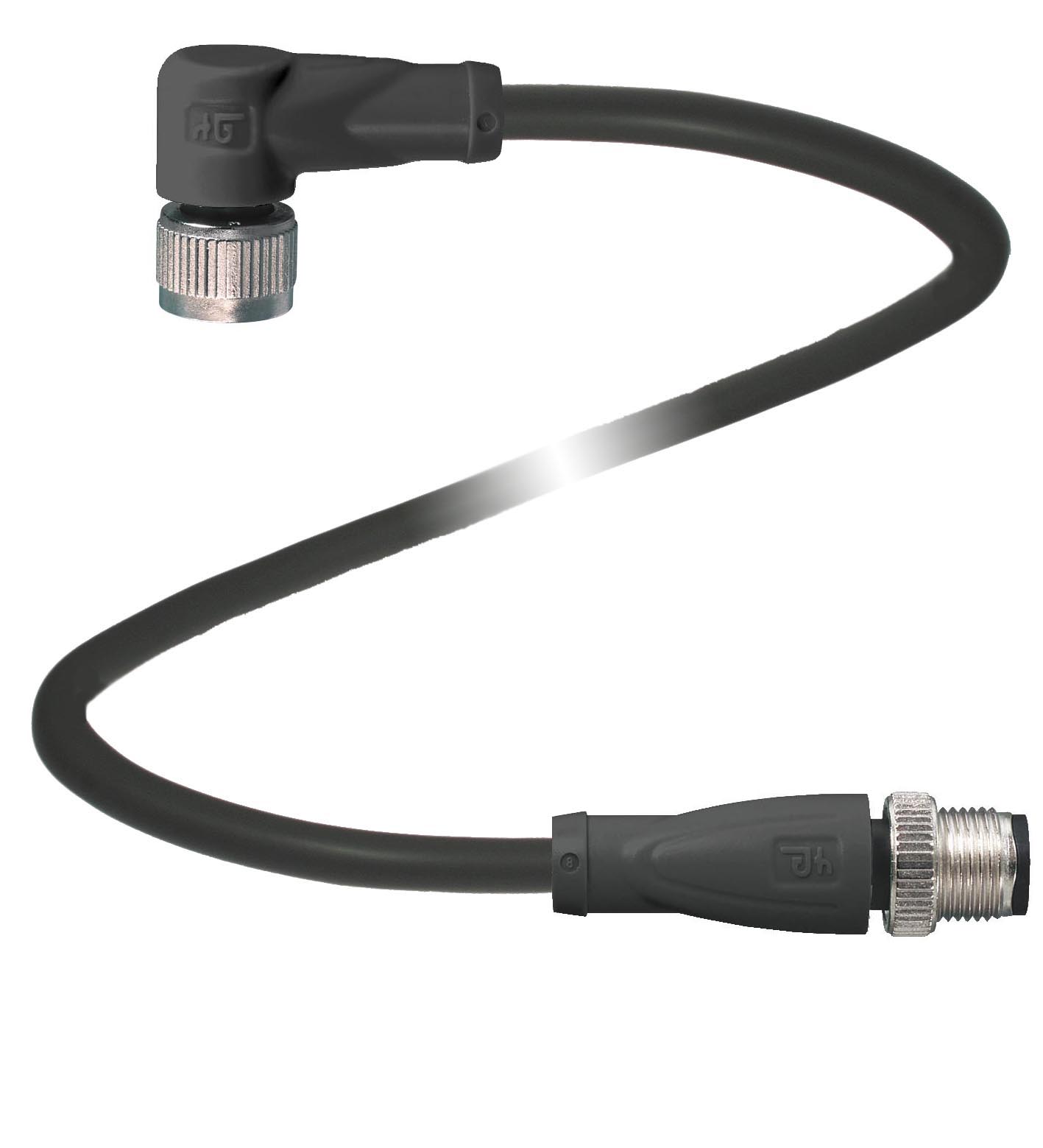

V1-W-BK5M-PUR-A-V1-G-A2

Connection cable. Double-ended cordset, M12 to M12, LED, PUR cable, 4-pin. Number of pins: 4. Connection 1: socket. Construction type 1: angled. Threading 1: M12. Connection 2: plug. Construction type...

Connection cable. Double-ended cordset, M12 to M12, LED, PUR cable, 4-pin. Number of pins: 4. Connection 1: socket. Construction type 1: angled. Threading 1: M12. Connection 2: plug. Construction type 2: straight. Threading 2: M12. LED green: Operating display. LED yellow: Functional display NO contact. Operating voltage: max. 24 V DC ± 15%. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008FlammabilityBody: UL 94Line: UL 1581 Section 1061; IEC 60332-1-2:2004Halogen-freeIEC 60754-1:1994: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Flammability: Body: UL 94Line: UL 1581 Section 1061; IEC 60332-1-2:2004. Halogen-free: IEC 60754-1:1994. Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F) cable, movable installation: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, transparent/blackCablePURSlotted nutDiecast zincSleeve connectorDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, transparent/black. Cable: PUR. Slotted nut: Diecast zinc. Sleeve connector: Diecast zinc. Core insulation: PP. Cable: extra-fine wire, flexible. Sheath diameter∅ 4.3 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationColorblackNumber of cores4Core cross section0.34 mm2Conductor construction42 x 0.1 mm ∅LengthL5 m: . Sheath diameter: ∅ 4.3 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Color: black. Number of cores: 4. Core cross section: 0.34 mm2. Conductor construction: 42 x 0.1 mm ∅. Length: 5 m. Drag chain suitability: . Drag chain cyclesmin. 5000000 (at max. 60 °C)Motion velocitymax. 3.3 m/sTraverse distance5 m horizontalAccelerationmax. 5 m/s2Torsion cyclesmin. 1000000 (at max. 60 °C)Torsional stress± 180 °/m: . Drag chain cycles: min. 5000000 (at max. 60 °C). Motion velocity: max. 3.3 m/s. Traverse distance: 5 m horizontal. Acceleration: max. 5 m/s2. Torsion cycles: min. 1000000 (at max. 60 °C). Torsional stress: ± 180 °/m. Mass: 153 g. Flammability: . Contact carrier94 HBHousing94 V-2CableFT2: . Contact carrier: 94 HB. Housing: 94 V-2. Cable: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
