V1-W-E/E2-LED-SET

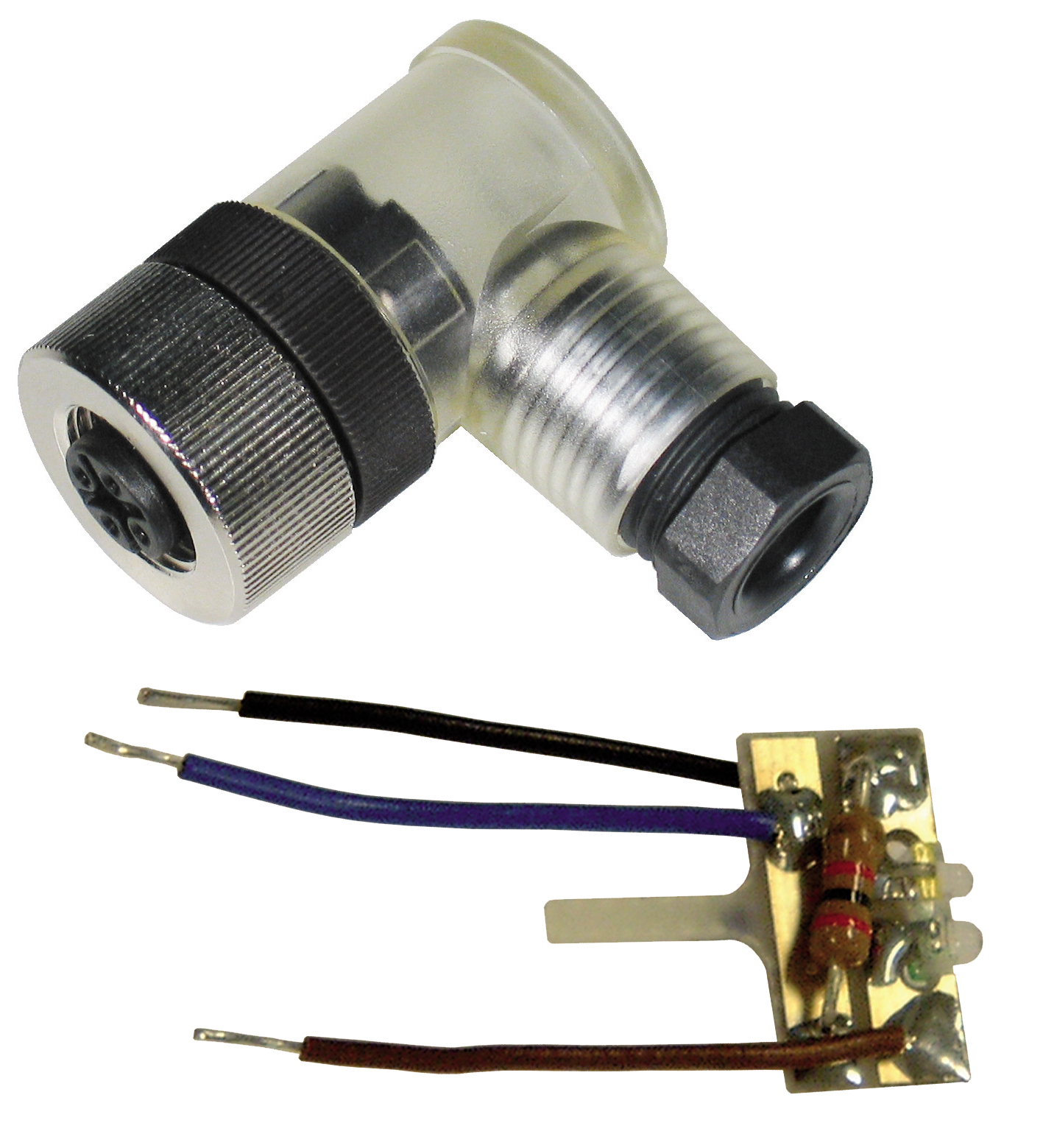

Female connector, field-attachable. Female connector M12 angled A-coded 4-pin with LED PCB, for cable diameter 4 - 6 mm, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12Styleangle...

Female connector, field-attachable. Female connector M12 angled A-coded 4-pin with LED PCB, for cable diameter 4 - 6 mm, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingA-codedCustomizationCoding rotateable in steps of 90°: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 4. Coding: A-coded. Customization: Coding rotateable in steps of 90°. LED green: Operating display. LED yellow: Functional display NO. Operating voltage: max. 24 V DC ± 15%. Operating current: max. 4 A. Volume resistance: < 3 mΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. UL File Number: E363587. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Degree of protection: IP67. Connection: screw terminals for max. 0.75 mm2 / AWG 18 PG7 cable gland. Cable: . Sheath diameter4 ... 6 mmCore cross section0.75 mm2 / 18 AWG max.: . Sheath diameter: 4 ... 6 mm. Core cross section: 0.75 mm2 / 18 AWG max.. Mass: 17.83 g. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyPBTContact surfacegold plated (Au): . Screw connection: Zinc diecast, nickel-plated. Body: PBT. Contact surface: gold plated (Au)

Brand	Pepperl Fuchs
Lifecycle status	active
