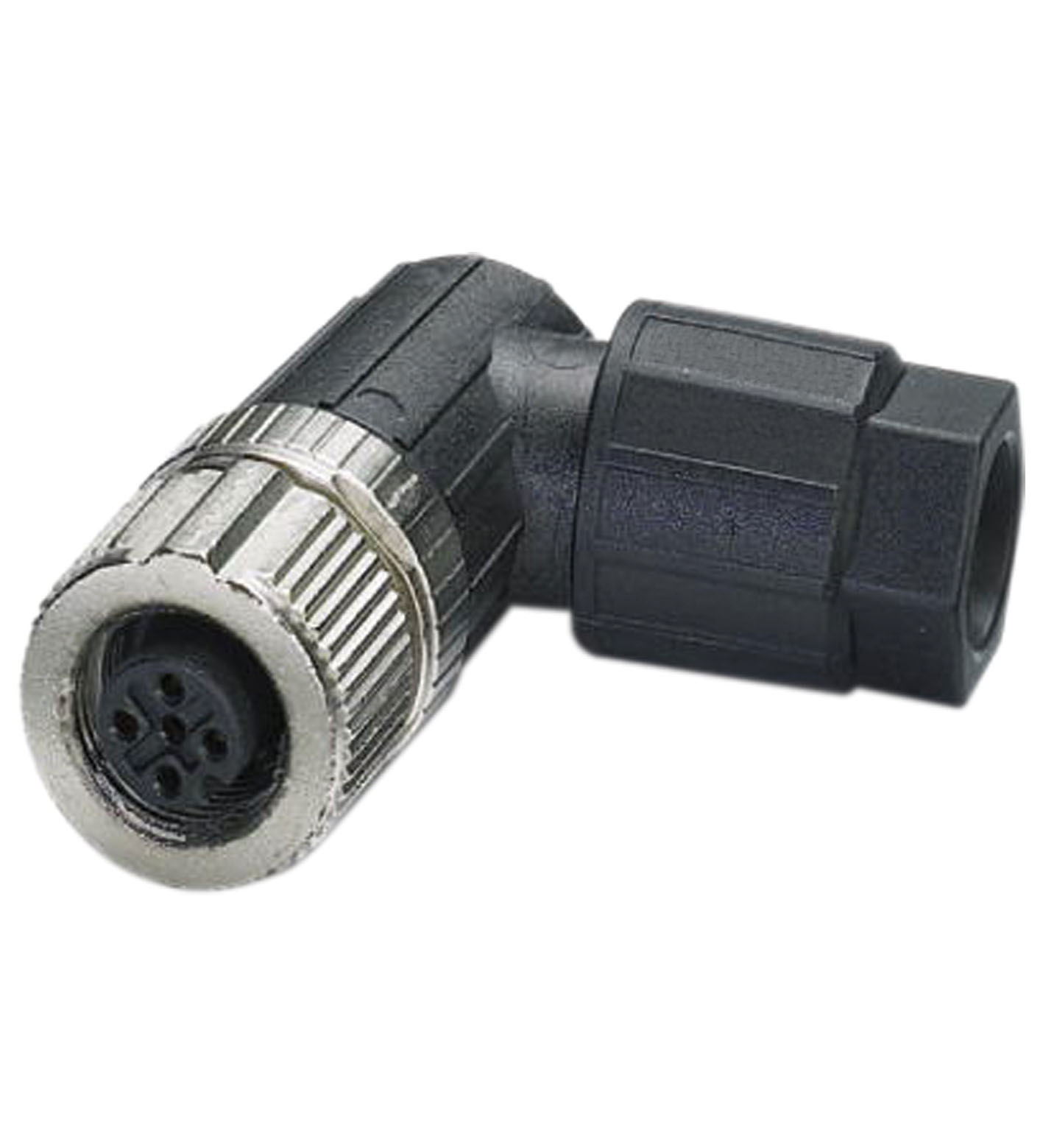

V1-W-SC

Female connector, field-attachable. Female connector M12 angled A-coded 4-pin, for cable diameter 4 - 8 mm, field-attachable, cage spring connection. Connector 1: . ConnectionsocketConstruction typeM1...

Female connector, field-attachable. Female connector M12 angled A-coded 4-pin, for cable diameter 4 - 8 mm, field-attachable, cage spring connection. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingA-codedCustomizationCoding rotateable in steps of 45°: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 4. Coding: A-coded. Customization: Coding rotateable in steps of 45°. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.4 Nm. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP67. Connection: Cage spring connection. Cable: . Sheath diameter4 ... 8 mmCore cross section0.14 ... 0.75 mm2 / 26 ... 18 AWG: . Sheath diameter: 4 ... 8 mm. Core cross section: 0.14 ... 0.75 mm2 / 26 ... 18 AWG. Mass: 22.6 g. Plug connector: . Screw connectionCuZn, nickel-platedBodyPA, blackSealNBRContact surfaceNi/Au: . Screw connection: CuZn, nickel-plated. Body: PA, black. Seal: NBR. Contact surface: Ni/Au

Brand	Pepperl Fuchs
Lifecycle status	active
