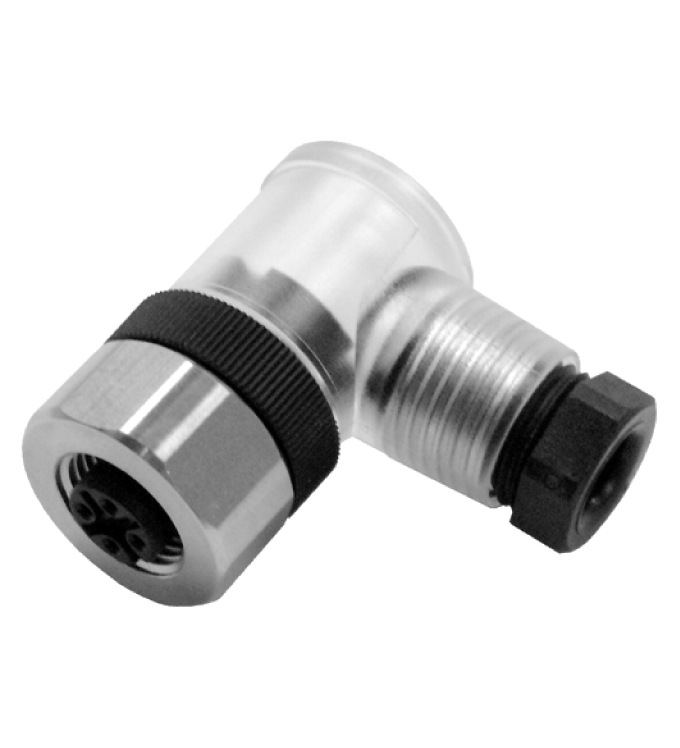

V1-WV2A

Female cordset, field attachable. Female cordset, field attachable. Number of pins: 4. Connection 1: socket. Construction type 1: angled. Threading 1: M12. UL File Number: E363587. Operating voltage:...

Female cordset, field attachable. Female cordset, field attachable. Number of pins: 4. Connection 1: socket. Construction type 1: angled. Threading 1: M12. UL File Number: E363587. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Volume resistance: < 3 mΩ. Standard conformity: . Degree of protectionEN 60529:2000: . Degree of protection: EN 60529:2000. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Degree of protection: IP67. Connection: 1 x M12 right-angled connector screw terminals for max. 0.75 mm2 PG7 cable gland. Material: . ContactsCuSnContact surfaceAuBodyPA 66Slotted nutStainless steel 1.4305 / AISI 303: . Contacts: CuSn. Contact surface: Au. Body: PA 66. Slotted nut: Stainless steel 1.4305 / AISI 303. Cable: . Sheath diameter4 ... 6 mm: . Sheath diameter: 4 ... 6 mm. Mass: 26.76 g

Brand	Pepperl Fuchs
Lifecycle status	active
