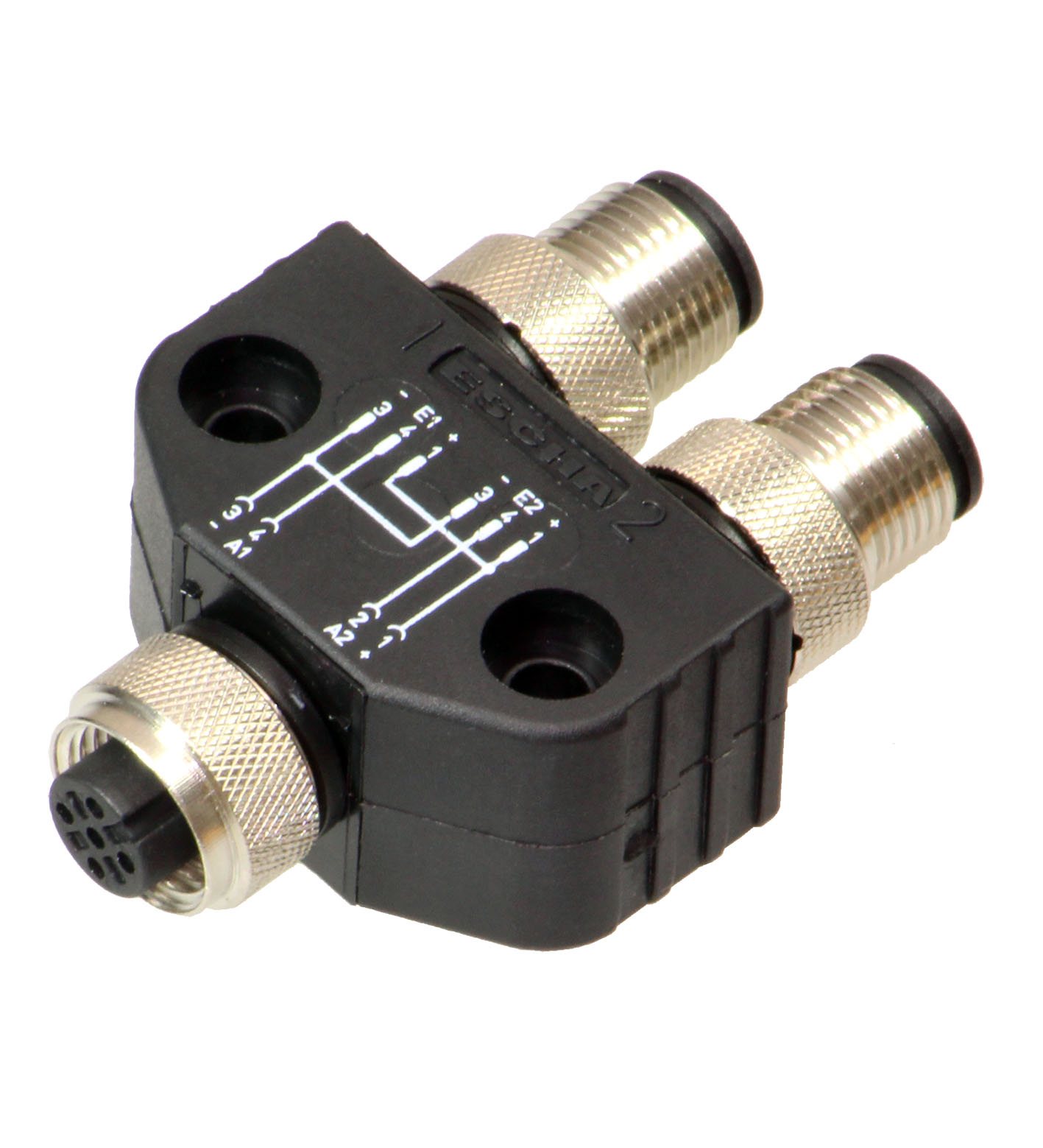

V1-Y-V11S/V11S

Y-Splitter. Y-Splitter M12 socket 4-pin to 2x M12 plug 3-pin A-coded. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: p...

Y-Splitter. Y-Splitter M12 socket 4-pin to 2x M12 plug 3-pin A-coded. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 3: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Operating voltage: max. 48 V AC / 60 V DC. Operating current: 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: -25 ... 90 °C (-13 ... 194 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Mating cycles: min. 100. Degree of protection: IP65 / IP67. Mass: 42 g. Dimensions: . Height20 mmWidth38 mmLength54.6 mm: . Height: 20 mm. Width: 38 mm. Length: 54.6 mm. Mounting: Mounting hole for M4 screw. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPUContact surfaceNi/AuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU. Contact surface: Ni/Au. Flammability: V-2

Brand	Pepperl Fuchs
Lifecycle status	active
