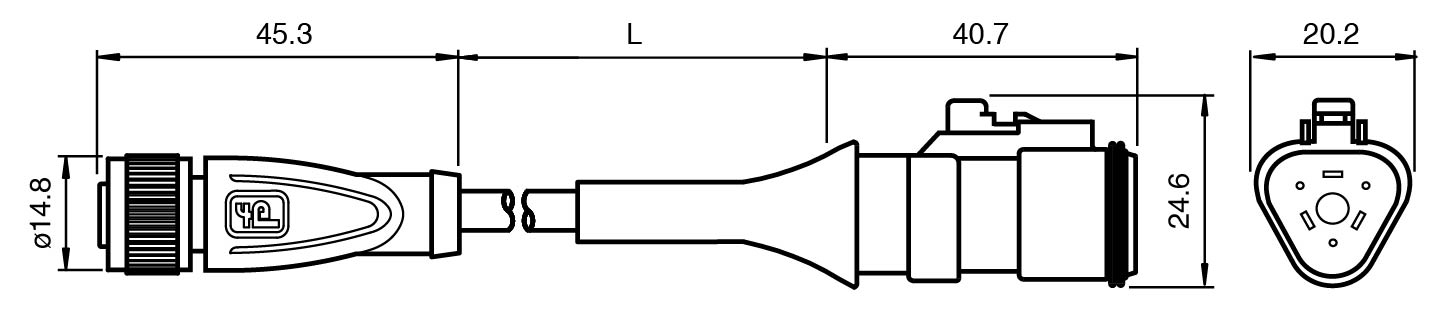

V11-G-BK1M-PUR-3DT06

Female connector. Cable socket, M12 to 3-pin Deutsch connector. Number of pins: 3. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plug. Construction type 2: strai...

Female connector. Cable socket, M12 to 3-pin Deutsch connector. Number of pins: 3. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plug. Construction type 2: straight. Operating voltage: max. 250 V AC/DC. Test voltage: 1500 V eff AC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Ambient temperature: -40 ... 90 °C (-40 ... 194 °F). Pollution degree: 3. Connection type: Cable connector (M12 x 1) , Deutsch DT06 Connector with 1 m, PUR cable with Heat-shrinkable tube on Connector. Pin diameter: 1 mm. Degree of protection: IP68 / IP69K ( M12 Connector end ). Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutDiecast zincCore insulationpolypropylene: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Core insulation: polypropylene. Cable: fine-strand, flexible. Sheath diameter∅ 6 mmBending radius10 x cable diameterColorblackCores3 x 0.75 mm2LengthL1 m: . Sheath diameter: ∅ 6 mm. Bending radius: 10 x cable diameter. Color: black. Cores: 3 x 0.75 mm2. Length: 1 m. Mass: 85.8 g. Note: Connector : DT06-3S-CE13 Seal : W3S-P012 Contacts: (Reel) 1062-16-0622, (Loose) 0462-201-16141

Brand	Pepperl Fuchs
Lifecycle status	active
