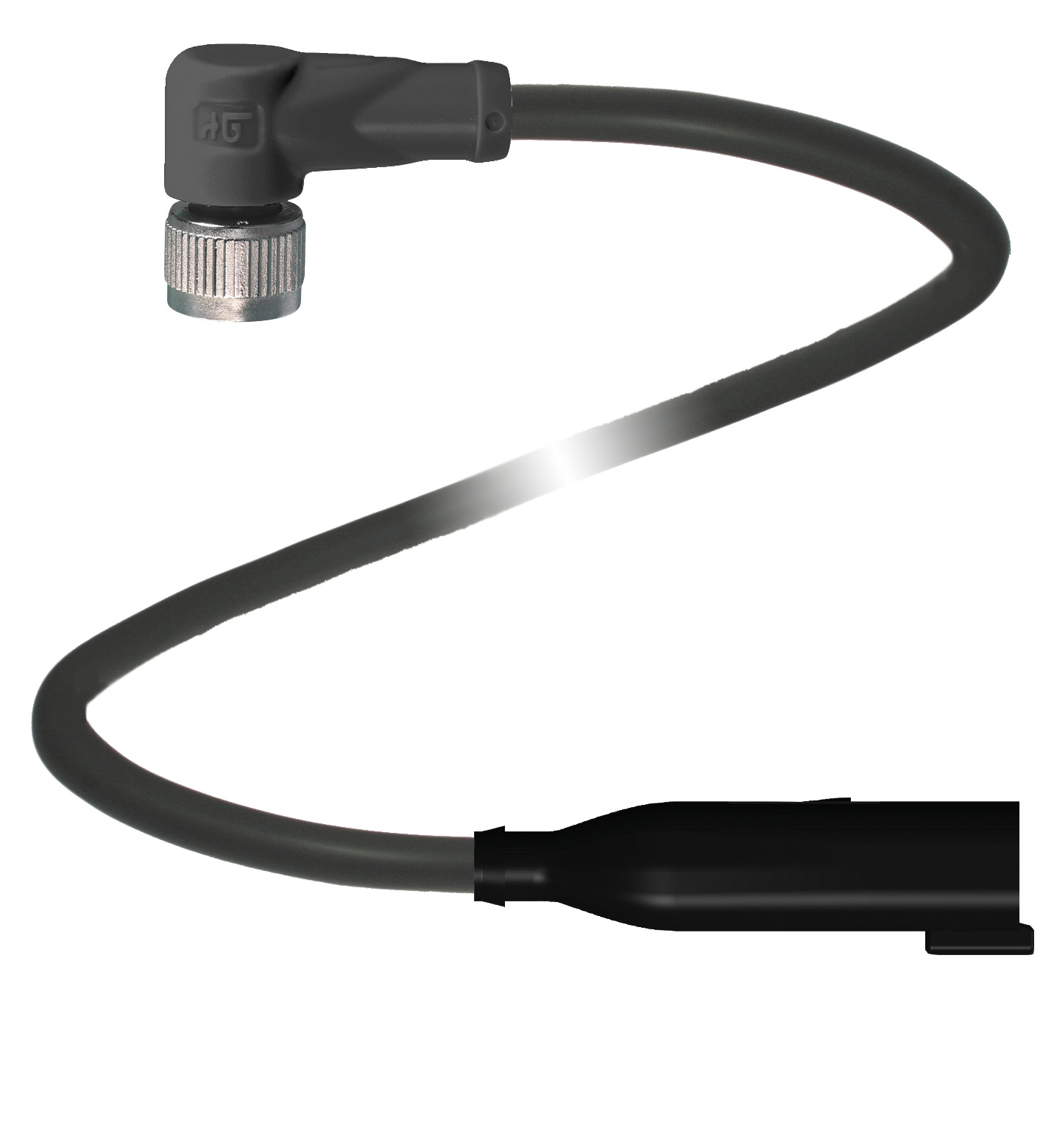

V11-W-BK0,3M-PUR-O1-DT4P-G-Y31

Connection cable. Connecting cable, M12 socket to Deutsch connector, 3-pin PUR cable, outdoor. Number of pins: 3. Connection 1: socket. Construction type 1: angled. Threading 1: M12. Connection 2: plu...

Connection cable. Connecting cable, M12 socket to Deutsch connector, 3-pin PUR cable, outdoor. Number of pins: 3. Connection 1: socket. Construction type 1: angled. Threading 1: M12. Connection 2: plug. Construction type 2: straight. Threading 2: Deutsch connectors. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Lead resistance: Max. 39 Ω/km. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008FlammabilityUL 1581; DIN EN 60332-2-2Halogen-freeDIN VDE 0472-815 DIN EN 50267-2-1Chemical resistanceDIN EN 60811-2-1IRM 902: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815 DIN EN 50267-2-1. Chemical resistance: DIN EN 60811-2-1IRM 902. UL approval: AWM STYLE 21924/11558 105°C 300V AWM I A/B 105°C 300V FT2. Maximum permissible operating voltagemax. 30 VMaximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible operating voltage: max. 30 V. Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Ambient temperature: Body: -40 ... 105 °C (-40 ... 221 °F) cable, fixed installation: -50 ... 105 °C (-58 ... 221 °F) cable, movable installation: -30 ... 105 °C (-22 ... 221 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Degree of protection: IP68. Cable code: Li 9Y 11Y 4 x 0,50. Material: . ContactsCu alloy / AuContact surfaceNi/AuBodyPA, black TPU, blackCablePURSlotted nutDiecast zincCore insulationPP: . Contacts: Cu alloy / Au. Contact surface: Ni/Au. Body: PA, black TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Core insulation: PP. Cable: extra-fine wire, flexible. Sheath diameter∅ 4.5 mm ± 0.15 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationColorblack (similar to RAL 7021)Number of cores4Core cross section0.5 mm2Conductor construction28 x 0.15 mm ∅ 1 x symmetrically twistedLengthL0.3 m: . Sheath diameter: ∅ 4.5 mm ± 0.15 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Color: black (similar to RAL 7021). Number of cores: 4. Core cross section: 0.5 mm2. Conductor construction: 28 x 0.15 mm ∅ 1 x symmetrically twisted. Length: 0.3 m. Drag chain suitability: . Drag chain cyclesmin. 2000000Motion velocitymax. 3 m/sTraverse distancemax. 10 mAccelerationmax. 10 m/s2: . Drag chain cycles: min. 2000000. Motion velocity: max. 3 m/s. Traverse distance: max. 10 m. Acceleration: max. 10 m/s2. Mass: 35 g. Flammability: . Contact carrierV-2HousingV-0CableAWM STYLE 21924/11558 105°C 300V AWM I A/B 105°C 300V FT2: . Contact carrier: V-2. Housing: V-0. Cable: AWM STYLE 21924/11558 105°C 300V AWM I A/B 105°C 300V FT2

Brand	Pepperl Fuchs
Lifecycle status	active
