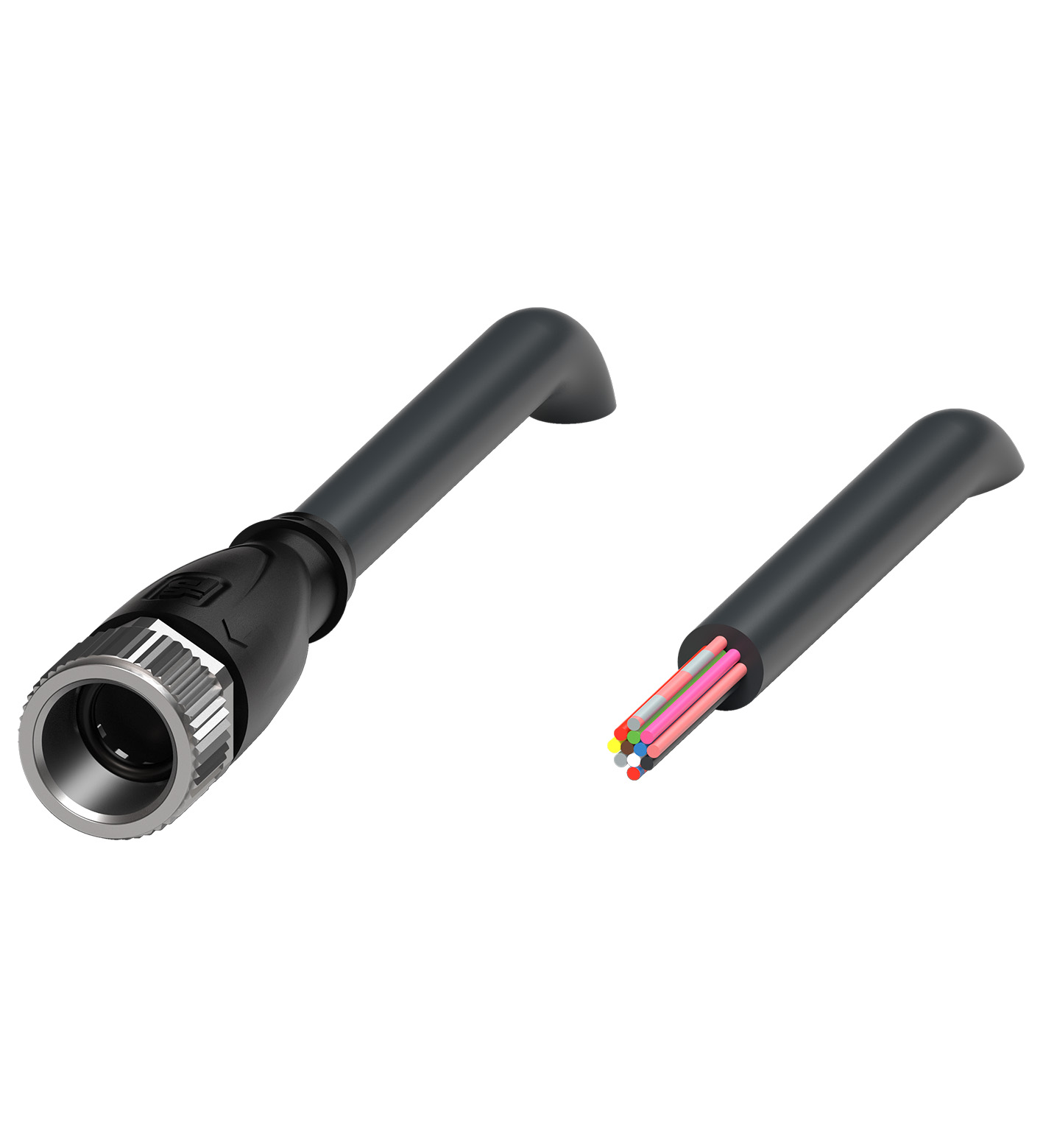

V112-G-15M-PVC

Female cordset. Female cordset single-ended M12 straight A-coded, 12-pin, PVC cable black. Customization: Stripped length 50 mm , wire end ferrule. Connector 1: . ConnectionsocketConstruction typeM12S...

Female cordset. Female cordset single-ended M12 straight A-coded, 12-pin, PVC cable black. Customization: Stripped length 50 mm , wire end ferrule. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins12CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 12. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: 30 V. Operating current: 1.5 A. Surge protection: category II. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: . Plug connector-28 ... 90 °C (-18.4 ... 194 °F)Cable, fixed installation-28 ... 90 °C (-18.4 ... 194 °F): . Plug connector: -28 ... 90 °C (-18.4 ... 194 °F). Cable, fixed installation: -28 ... 90 °C (-18.4 ... 194 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmLoosening protectionintegratedTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.4 Nm. Loosening protection: integrated. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP65/IP67/IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter7.2 mmBending radius54 mmSheath colorblack (similar to RAL 9005)Number of cores12Core cross section0.14 mm2Cores colorCore 1: brown Core 2: blue Core 3: white Core 4: green Core 5: pink Core 6: yellow Core 7: black Core 8: greyCore 9: redCore 10: violetCore 11: grey/pinkCore 12: red/blueCore construction18 x 0.1 mmLengthL15 m: . Sheath diameter: 7.2 mm. Bending radius: 54 mm. Sheath color: black (similar to RAL 9005). Number of cores: 12. Core cross section: 0.14 mm2. Cores color: Core 1: brown Core 2: blue Core 3: white Core 4: green Core 5: pink Core 6: yellow Core 7: black Core 8: greyCore 9: redCore 10: violetCore 11: grey/pinkCore 12: red/blue. Core construction: 18 x 0.1 mm. Length: 15 m. Mass: 664.1 g. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealNBRContact surfacegold plated (Au)FlammabilityHB: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: NBR. Contact surface: gold plated (Au). Flammability: HB. Cable: . SheathingPVCCoresbare copper (Cu)Core insulationPVCFlammabilityflame-resistant: . Sheathing: PVC. Cores: bare copper (Cu). Core insulation: PVC. Flammability: flame-resistant. Cable marking sleeve: 2x PUR transparent , fixed to cable

Brand	Pepperl Fuchs
Lifecycle status	active
