Pepperl Fuchs

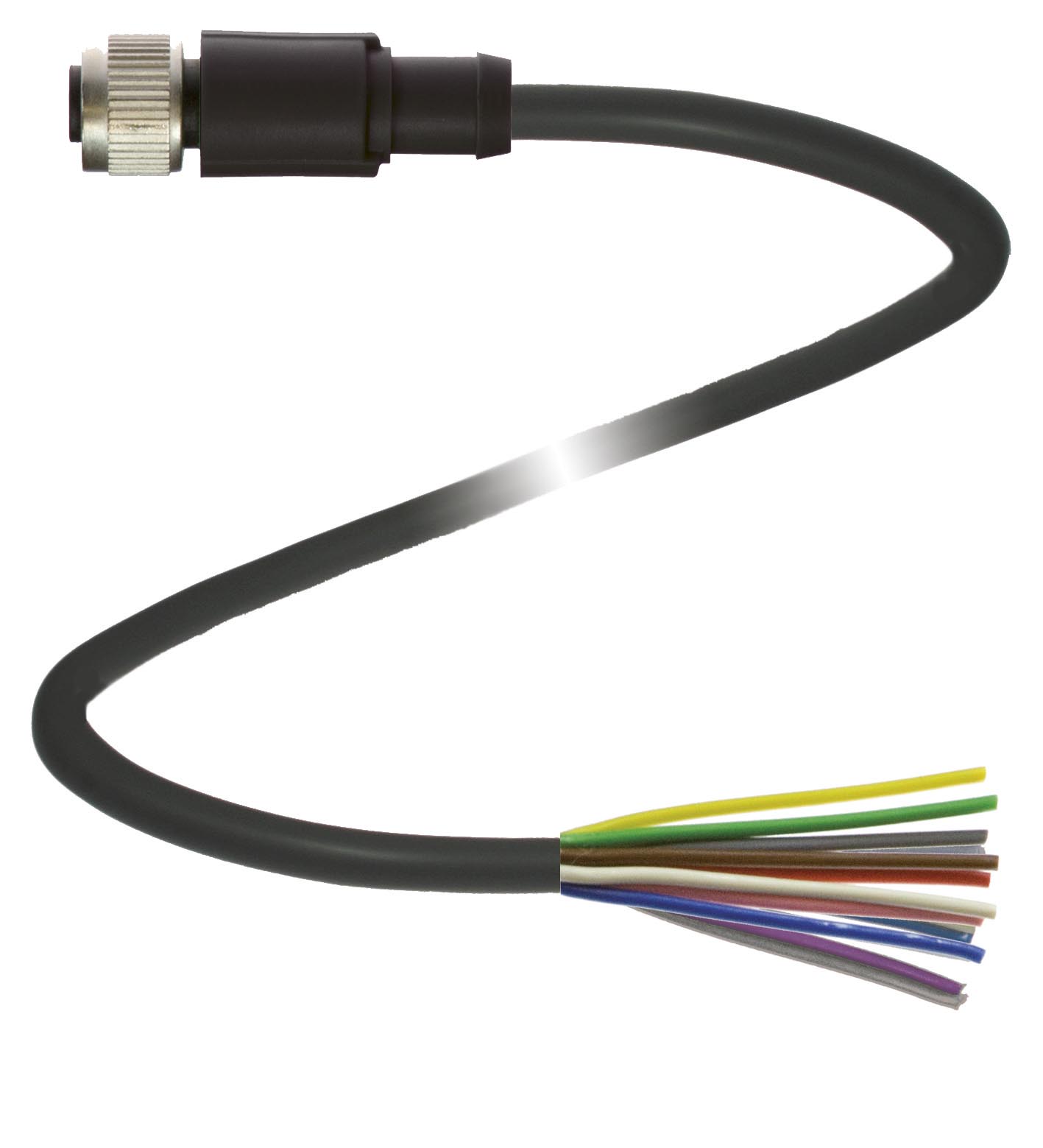

V112-G-BK5M-PUR

Female cordset. Female cordset single-ended M12 straight A-coded, 12-pin, PUR cable black. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins12CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 12. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 30 V AC/DC. Operating current: max. 1.5 A. Surge protection: category II. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Microbial resistance: EN 50396 / DIN VDE 0282-10. Hydrolysis resistance: EN 50396 / DIN VDE 0282-10. Oil resistance: DIN EN 60811-2-1 / DIN VDE 0472 T.803, test type B. Ambient temperature: . Plug connector-25 ... 85 °C (-13 ... 185 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-5 ... 80 °C (23 ... 176 °F): . Plug connector: -25 ... 85 °C (-13 ... 185 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -5 ... 80 °C (23 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.4 Nm. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP65/IP67/IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter7.2 mmBending radius54 mmSheath colorblack (similar to RAL 9005)Number of cores12Core cross section0.14 mm2Cores colorCore 1: brown Core 2: blue Core 3: white Core 4: green Core 5: pink Core 6: yellow Core 7: black Core 8: greyCore 9: redCore 10: violetCore 11: grey/pinkCore 12: red/blueCore construction18 x 0.1 mmLengthL5 m: . Sheath diameter: 7.2 mm. Bending radius: 54 mm. Sheath color: black (similar to RAL 9005). Number of cores: 12. Core cross section: 0.14 mm2. Cores color: Core 1: brown Core 2: blue Core 3: white Core 4: green Core 5: pink Core 6: yellow Core 7: black Core 8: greyCore 9: redCore 10: violetCore 11: grey/pinkCore 12: red/blue. Core construction: 18 x 0.1 mm. Length: 5 m. Drag chain suitability: . Drag chain cyclesmin. 4000000Motion velocitymax. 3 m/sTraverse distance10 mAccelerationmax. 10 m/s2: . Drag chain cycles: min. 4000000. Motion velocity: max. 3 m/s. Traverse distance: 10 m. Acceleration: max. 10 m/s2. Mass: 330 g. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealNBRContact surfaceNi/AuFlammabilityV-0: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: NBR. Contact surface: Ni/Au. Flammability: V-0. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPP: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
