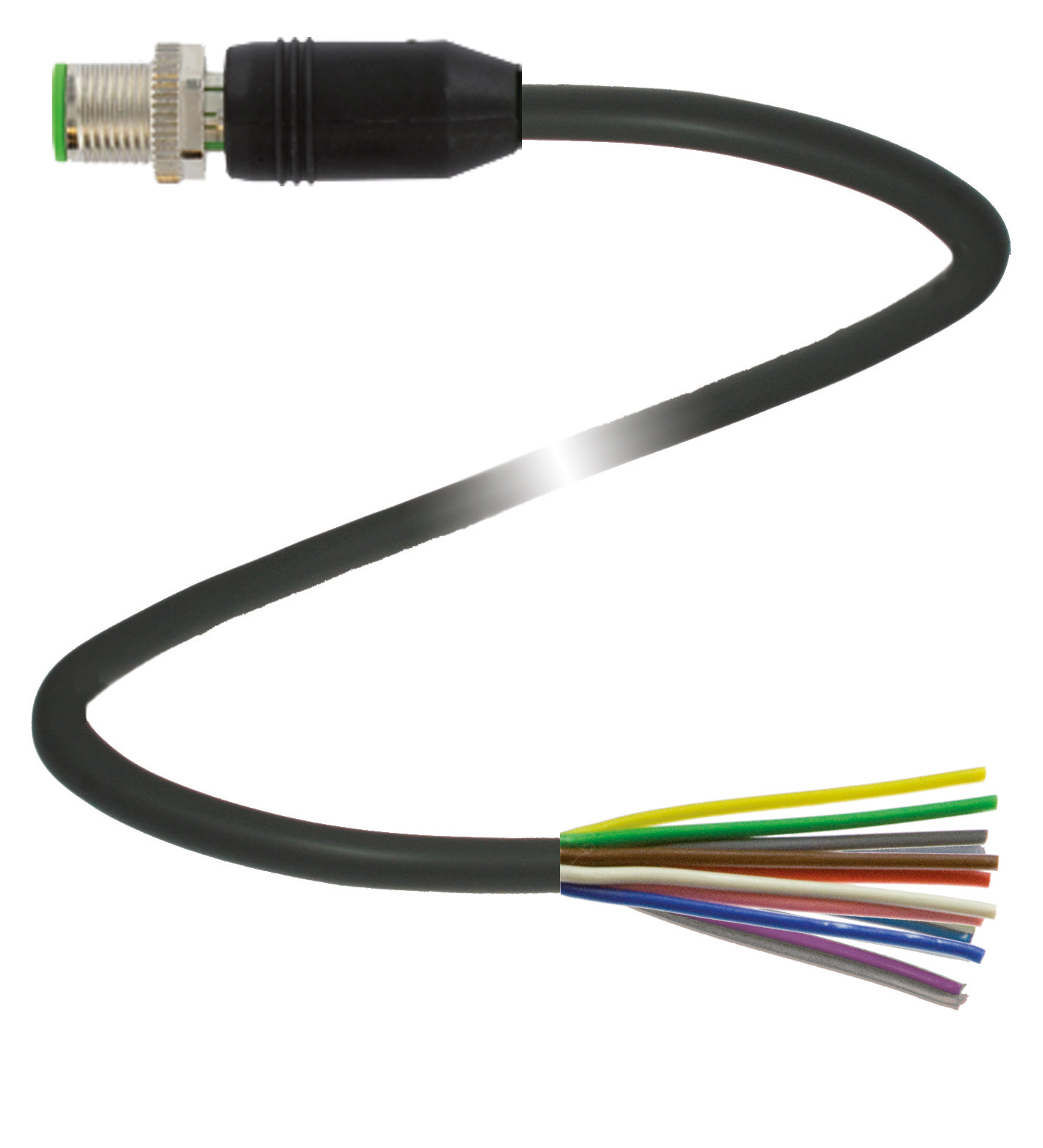

V112S-G-BK15M-PUR-ABG

Cable connector, shielded. Male cordset single-ended M12 straight A-coded, 12-pin, PUR cable black, shielded, drag chain suitable. Connector 1: . ConnectionplugConstruction typeM12StylestraightLocking...

Cable connector, shielded. Male cordset single-ended M12 straight A-coded, 12-pin, PUR cable black, shielded, drag chain suitable. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins12CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 12. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 30 V AC/DC. Operating current: max. 1.5 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-2-2. Microbial resistance: EN 50396 / DIN VDE 0282-10. Hydrolysis resistance: EN 50396 / DIN VDE 0282-10. Oil resistance: DIN EN 60811-404. Ambient temperature: . Plug connector-25 ... 85 °C (-13 ... 185 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Plug connector: -25 ... 85 °C (-13 ... 185 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 13 mmMating cyclesmin. 100Shieldingshield connected to screw connection: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 13 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP65 / IP67. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter6.5 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath colorblack (similar to RAL 9005)Number of cores12Core cross section0.14 mm2Cores colorCore 1: brown Core 2: blue Core 3: white Core 4: green Core 5: pink Core 6: yellow Core 7: black Core 8: greyCore 9: redCore 10: violetCore 11: grey/pinkCore 12: red/blueCore construction18 x 0.1 mm ∅Shieldtinned copper braiding, 80 % coverageLengthL15 mCable codeLSPYwC11Y: . Sheath diameter: 6.5 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath color: black (similar to RAL 9005). Number of cores: 12. Core cross section: 0.14 mm2. Cores color: Core 1: brown Core 2: blue Core 3: white Core 4: green Core 5: pink Core 6: yellow Core 7: black Core 8: greyCore 9: redCore 10: violetCore 11: grey/pinkCore 12: red/blue. Core construction: 18 x 0.1 mm ∅. Shield: tinned copper braiding, 80 % coverage. Length: 15 m. Cable code: LSPYwC11Y. Drag chain suitability: . Drag chain cyclesmax. 5000000Motion velocitymax. 3.3 m/sAccelerationmax. 5 m/s2Torsion cyclesmax. 2000000Torsional stress± 30 °/m: . Drag chain cycles: max. 5000000. Motion velocity: max. 3.3 m/s. Acceleration: max. 5 m/s2. Torsion cycles: max. 2000000. Torsional stress: ± 30 °/m. Mass: 830 g. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyPUR, blackSealFKMContact surfacegold plated (Au)FlammabilityV-0: . Screw connection: Zinc diecast, nickel-plated. Body: PUR, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-0. Cable: . SheathingPURCoresbare copper (Cu)Core insulationPPChemical resistancegoodOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR. Cores: bare copper (Cu). Core insulation: PP. Chemical resistance: good. Oil resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2. Cable marking sleeve: 1x PUR transparent , fixed to cable

Brand	Pepperl Fuchs
Lifecycle status	active
