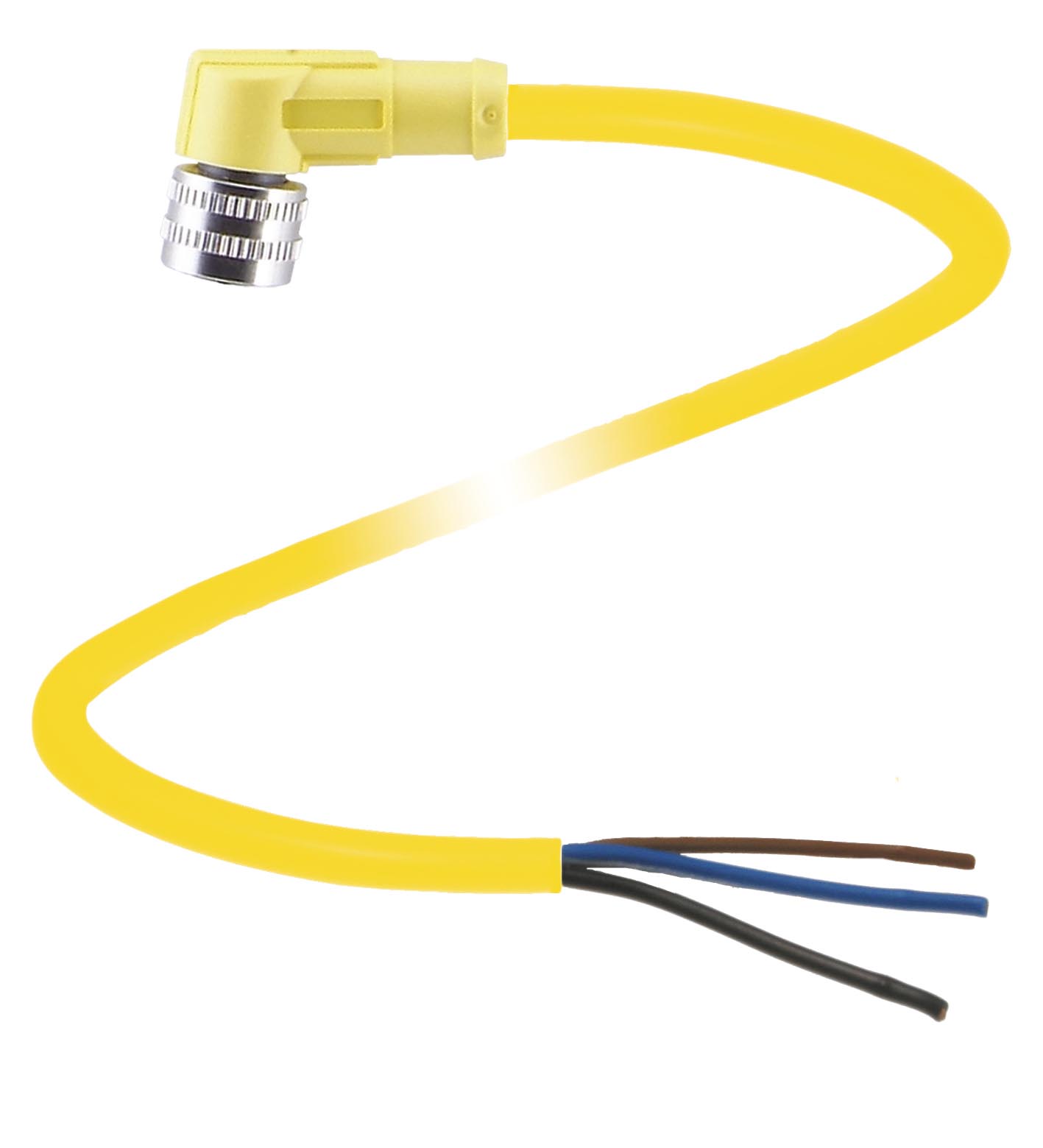

V11B-W-YE2M-PVC

Female connector. M12 connector/socket, 4-pin, B-coded. Number of pins: 3. Connection 1: socket. Construction type 1: angled. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 300 V D...

Female connector. M12 connector/socket, 4-pin, B-coded. Number of pins: 3. Connection 1: socket. Construction type 1: angled. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 300 V DC. Test voltage: > 1500 V eff AC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. UL approval: cULus Listed, General Purpose. Ambient temperature: -25 ... 105 °C (-13 ... 221 °F). Pollution degree: 3. Pin diameter: 1 mm. Degree of protection: IP67 / IP68 / IP69k. Material: . ContactsCuSnContact surfaceNi/AuBodyTPU , yellowCablePVCSlotted nutZinc diecast, nickel-platedCore insulationPVC: . Contacts: CuSn. Contact surface: Ni/Au. Body: TPU , yellow. Cable: PVC. Slotted nut: Zinc diecast, nickel-plated. Core insulation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 5.2 mmBending radius10 x cable Diameter:ColoryellowCores3 x 0.34 mm2LengthL2 m: . Sheath diameter: ∅ 5.2 mm. Bending radius: 10 x cable Diameter:. Color: yellow. Cores: 3 x 0.34 mm2. Length: 2 m. Mass: 94 g. Flammability: . Contact carrier94 V-2Housing94 V-2CableVW-1 flame rating from UL: . Contact carrier: 94 V-2. Housing: 94 V-2. Cable: VW-1 flame rating from UL

Brand	Pepperl Fuchs
Lifecycle status	active
