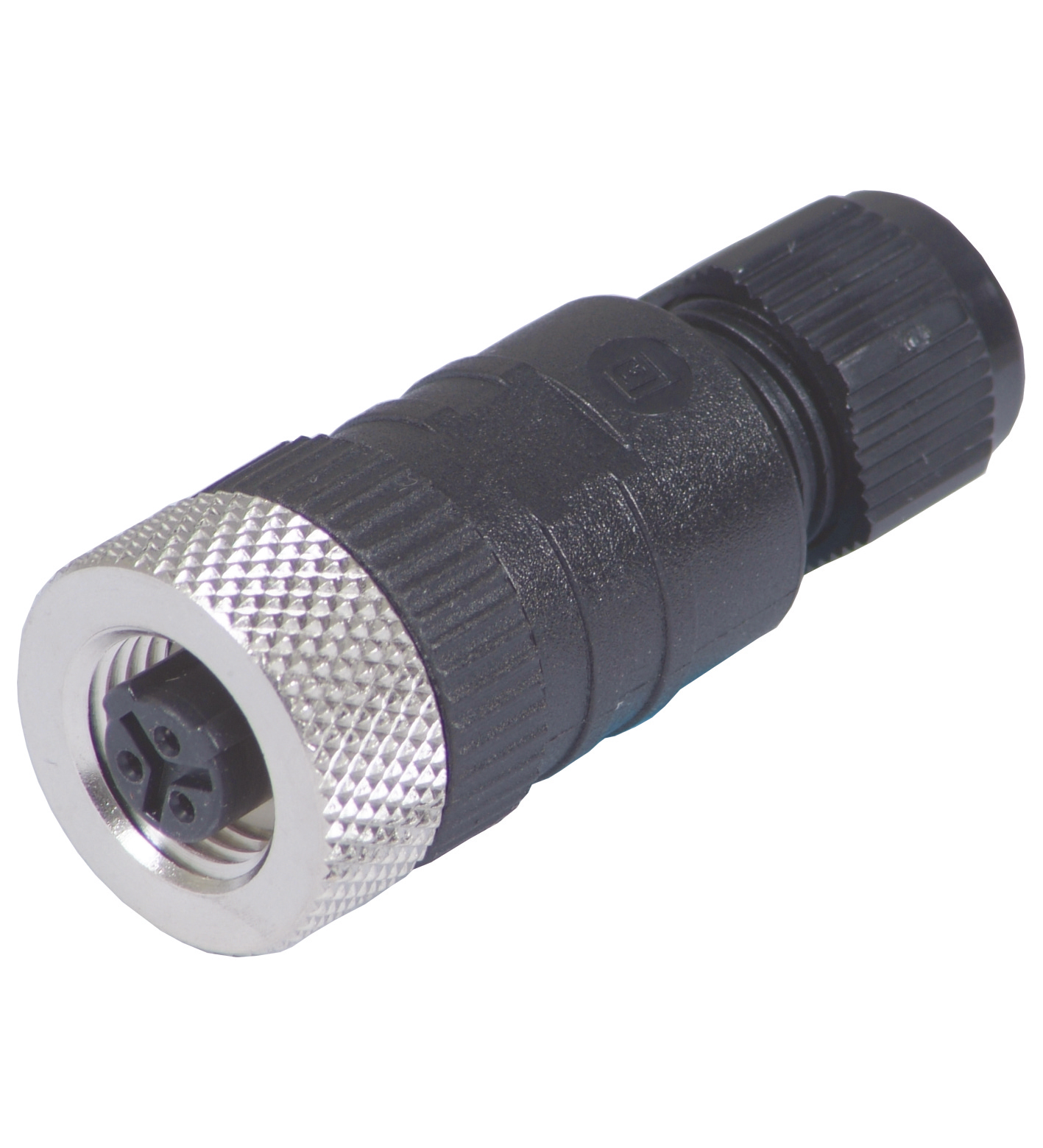

V12-G

Female cordset, field attachable. Female connector, 1/2", Micro AC, 3-pin. Number of pins: 3. Connection 1: socket. Construction type 1: straight. Threading 1: 1/2". Operating voltage: max. 250 V AC....

Female cordset, field attachable. Female connector, 1/2", Micro AC, 3-pin. Number of pins: 3. Connection 1: socket. Construction type 1: straight. Threading 1: 1/2". Operating voltage: max. 250 V AC. Operating current: max. 4 A. Volume resistance: ≤ 5 mΩ. Ambient temperature: -25 ... 90 °C (-13 ... 194 °F). Connection type: 1/2"-20 UN F Socket, straight screw terminals for max. 0.75 mm2 ,. Core cross section: max. 0.75 mm2 18 AWG. Degree of protection: IP67. Material: . ContactsCu alloyContact surfaceAuBodyPASlotted nutbrass, nickel-plated: . Contacts: Cu alloy. Contact surface: Au. Body: PA. Slotted nut: brass, nickel-plated. Cable: . Sheath diameter4 ... 6 mm: . Sheath diameter: 4 ... 6 mm. Mass: 25.7 g

Brand	Pepperl Fuchs
Lifecycle status	active
