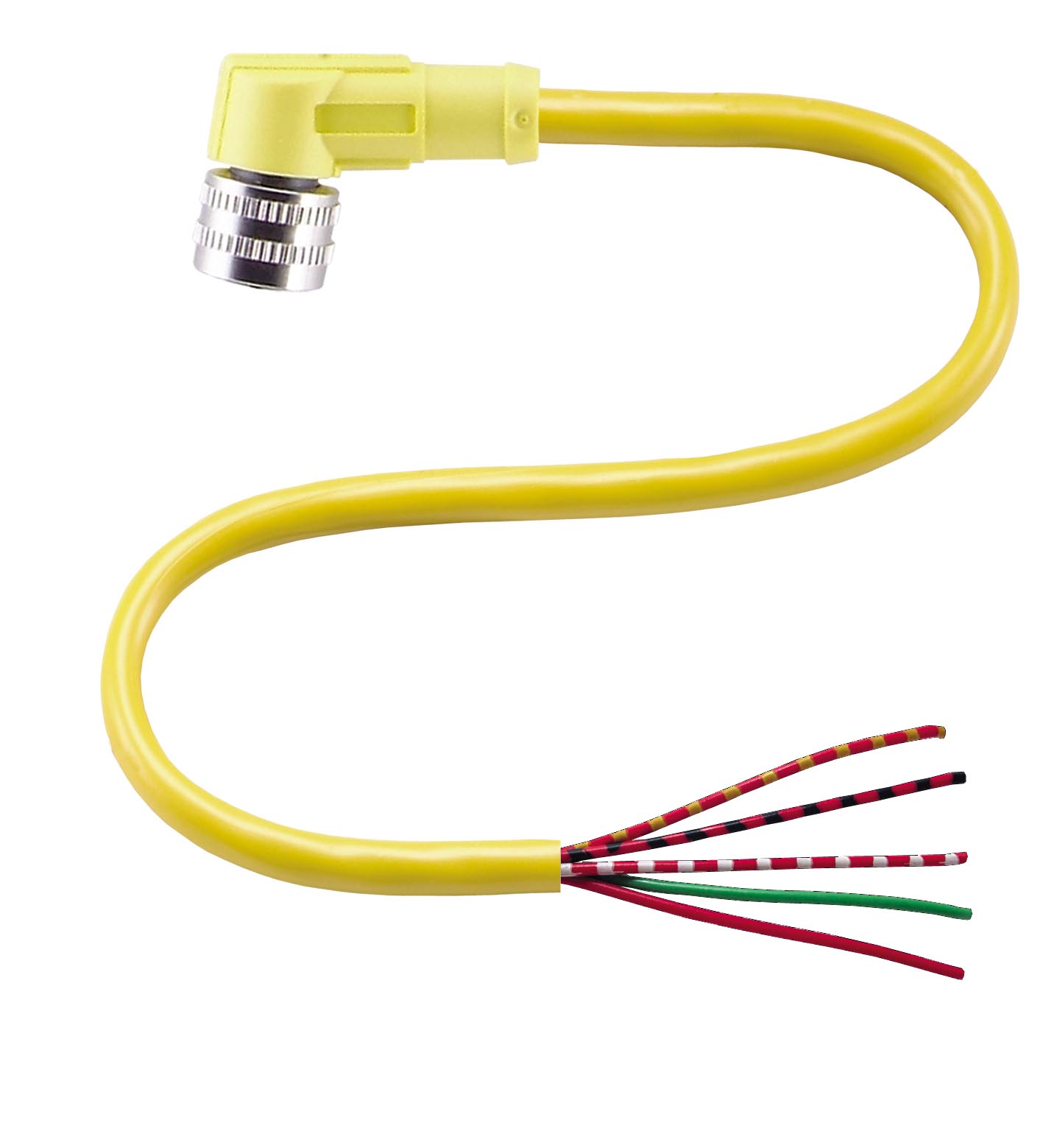

V125-W-YE5M-PVC

Female connector. Connecting cable, 1/2" - 20 UNF, 5-pin, PVC cable. Number of pins: 5. Connection 1: socket. Construction type 1: angled. Threading 1: 1/2". Connection 2: cable end. Operating voltage...

Female connector. Connecting cable, 1/2" - 20 UNF, 5-pin, PVC cable. Number of pins: 5. Connection 1: socket. Construction type 1: angled. Threading 1: 1/2". Connection 2: cable end. Operating voltage: max. 125 V AC/DC. Test voltage: > 1500 V eff AC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. UL approval: cULus Listed, General Purpose. Ambient temperature: -25 ... 105 °C (-13 ... 221 °F). Pollution degree: 3. Pin diameter: 1 mm. Degree of protection: IP68 / IP69K. Connection: 1/2" UNF socket, right-angled. Material: . ContactsCuSnContact surfaceNi/AuBodyTPU , yellowCablePVCSlotted nutbrass, nickel-platedCore insulationPVC: . Contacts: CuSn. Contact surface: Ni/Au. Body: TPU , yellow. Cable: PVC. Slotted nut: brass, nickel-plated. Core insulation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 5.9 mmBending radius10 x cable Diameter:ColoryellowCores5 x 0.34 mm2LengthL5 m: . Sheath diameter: ∅ 5.9 mm. Bending radius: 10 x cable Diameter:. Color: yellow. Cores: 5 x 0.34 mm2. Length: 5 m. Mass: 274 g. Flammability: . Contact carrier94 V-2Housing94 V-2CableVW-1 flame rating from UL: . Contact carrier: 94 V-2. Housing: 94 V-2. Cable: VW-1 flame rating from UL

Brand	Pepperl Fuchs
Lifecycle status	active
