Pepperl Fuchs

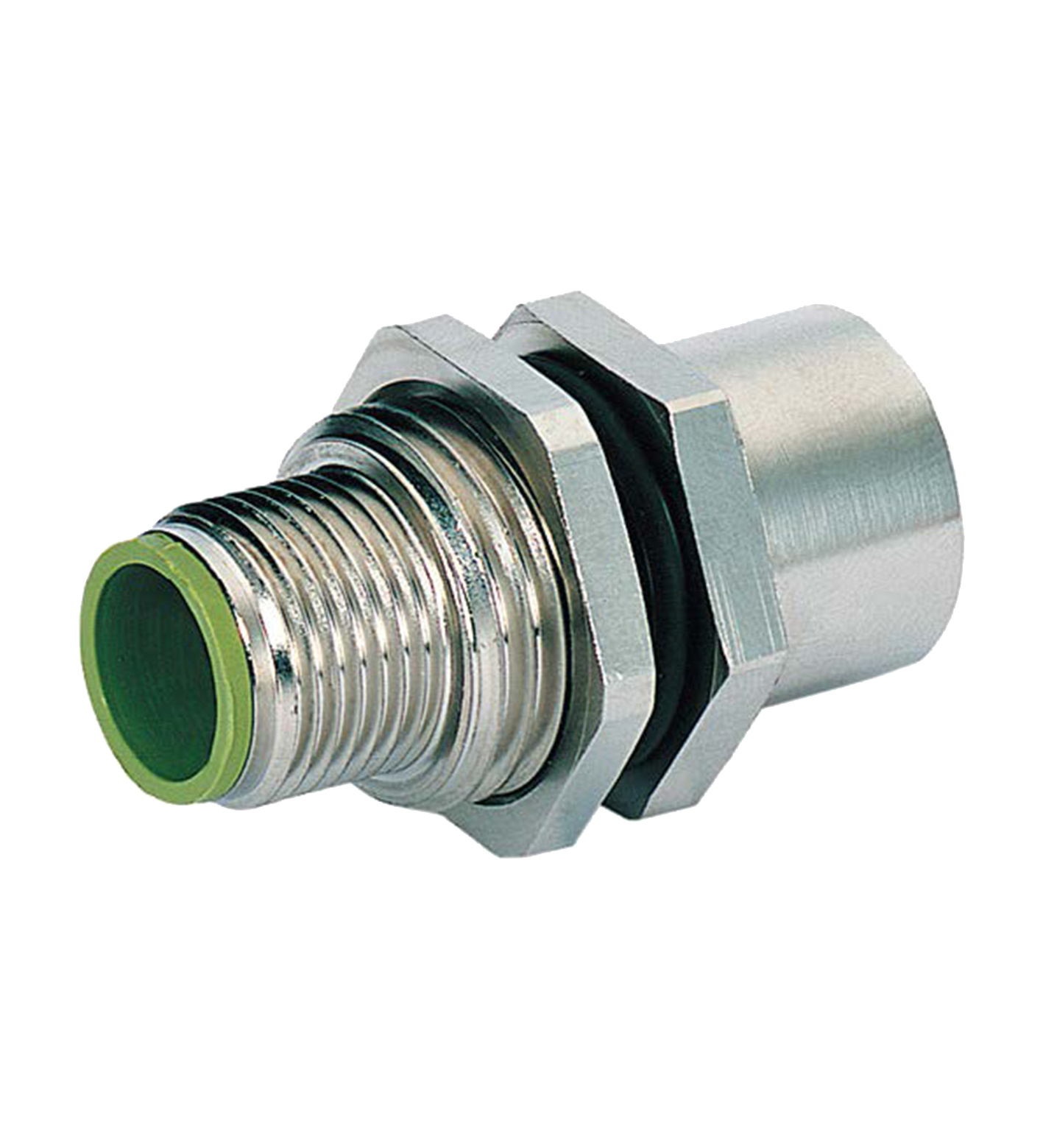

V15-M16-V15

Switch cabinet feedthrough. Switch cabinet feedthrough, M12/M16, 5-pin. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: A-coded. Operating voltage: max. 60 V AC/ DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Mating cycles: min. 100. Degree of protection: IP65 / IP67. Mass: 30 g. Plug connector: . Screw connectionbrass, nickel-plated: . Screw connection: brass, nickel-plated. Scope of delivery: locknut included

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
