V15-W-0,1M-PUR-ABG-V35-G

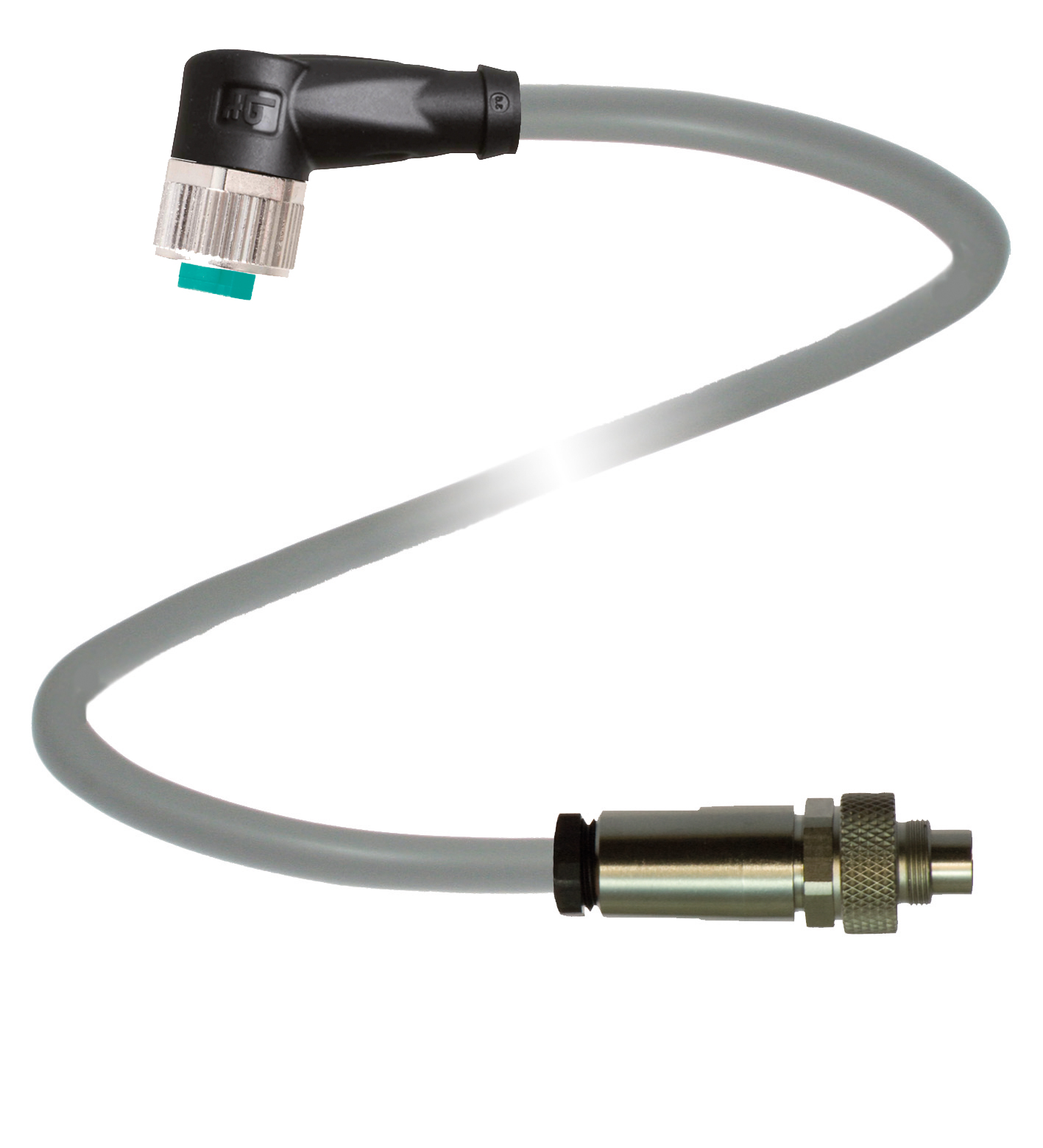

Adapter cable. Adapter cable M12 socket angled A-coded 5-pin to M9 plug straight metal housing 5-pin, PUR cable grey, shielded. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscr...

Adapter cable. Adapter cable M12 socket angled A-coded 5-pin to M9 plug straight metal housing 5-pin, PUR cable grey, shielded. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins5CodingA-coded: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 5. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM9StylestraightLockingscrew connectionNumber of pins5CustomizationMetal housing: . Connection: plug. Construction type: M9. Style: straight. Locking: screw connection. Number of pins: 5. Customization: Metal housing. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 3 A. Volume resistance: < 5 mΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Halogen-free: DIN VDE 0472-815 DIN EN 50267-2-1. Lead-free: RoHS directive 2011/65/EU. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-40 ... 85 °C (-40 ... 185 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -40 ... 85 °C (-40 ... 185 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Connector 1: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP66 / IP68 / IP69: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP66 / IP68 / IP69. Connector 2: . Mating cyclesmin. 500Shieldingshield connected to connectorDegree of protectionIP67: . Mating cycles: min. 500. Shielding: shield connected to connector. Degree of protection: IP67. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.8 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 100 N / 300 mmSheath colorgrey (similar to RAL 7001)Number of cores5Core cross section0.34 mm2Cores colorCore 1-5: brown Core 2-2: white Core 3-1: blue Core 4-3: black Core 5-4: greyCore construction42 x 0.1 mm ∅Shieldtinned copper braiding, 85 % coverageLengthL0.1 mCable codeLi 9Y 11YM 5 x 0.34: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 100 N / 300 mm. Sheath color: grey (similar to RAL 7001). Number of cores: 5. Core cross section: 0.34 mm2. Cores color: Core 1-5: brown Core 2-2: white Core 3-1: blue Core 4-3: black Core 5-4: grey. Core construction: 42 x 0.1 mm ∅. Shield: tinned copper braiding, 85 % coverage. Length: 0.1 m. Cable code: Li 9Y 11YM 5 x 0.34. Mass: 36.17 g. Halogen-free: yes. Lead-free: yes. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: gold plated (Au). Flammability: V-2. Connector 2: . Screw connectionbrass, nickel-platedBodybrass nickel-platedContact surfacegold plated (Au): . Screw connection: brass, nickel-plated. Body: brass nickel-plated. Contact surface: gold plated (Au). Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPChemical resistancegood: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Chemical resistance: good

Brand	Pepperl Fuchs
Lifecycle status	active
