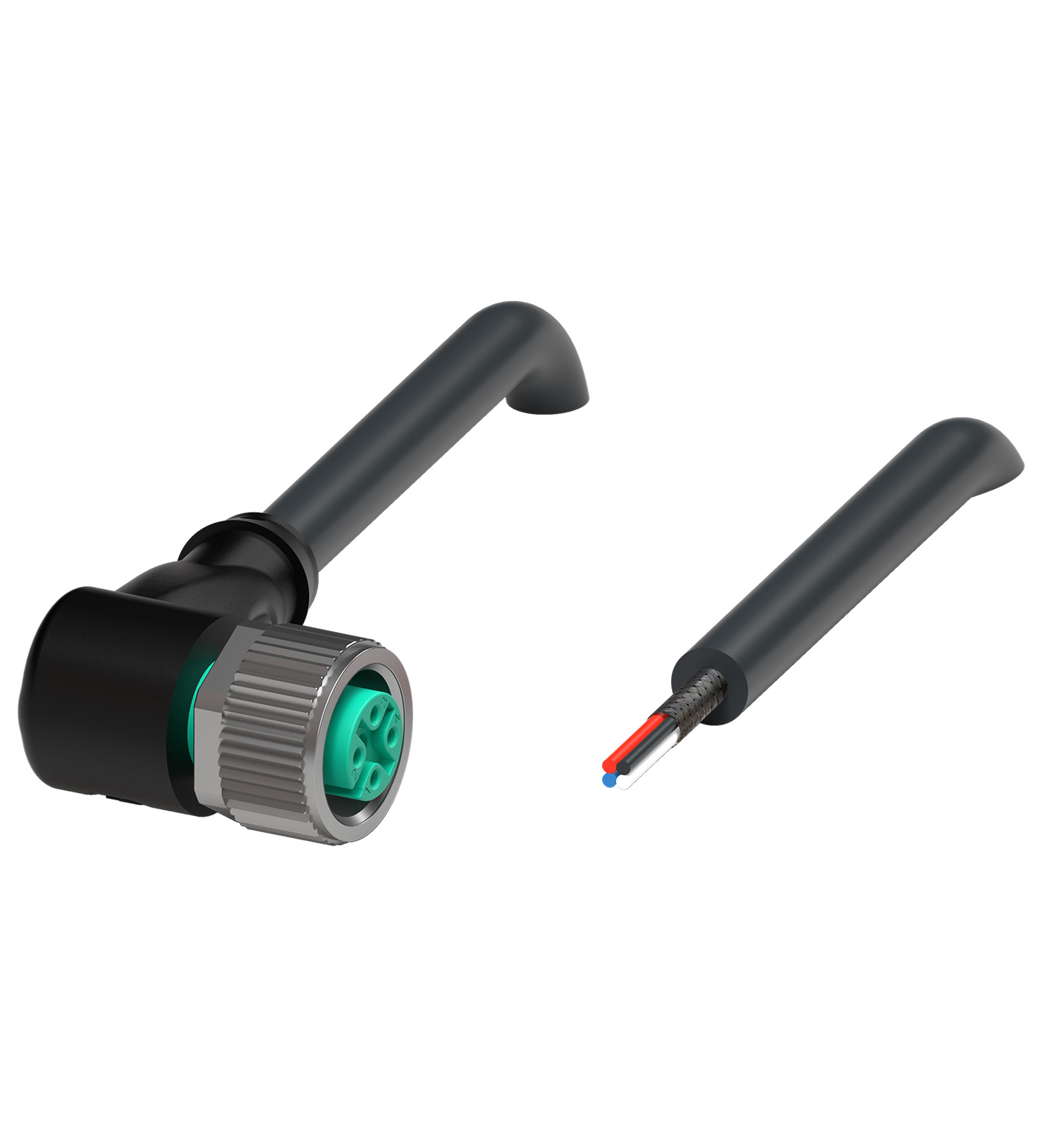

V15-W-BK5M-PUR-O2/CAN

Cable socket, shielded. DeviceNet/CANOpen bus cable female cordset single-ended M12 angled A-coded 5-pin, PUR cable 4-core twisted pairs black, shielded, UL approved, drag chain suitable, outdoor. Con...

Cable socket, shielded. DeviceNet/CANOpen bus cable female cordset single-ended M12 angled A-coded 5-pin, PUR cable 4-core twisted pairs black, shielded, UL approved, drag chain suitable, outdoor. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins5CodingA-coded: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 5. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581 , IEC 60332-1-2. Halogen-free: IEC 60754-1. Chemical resistance: DIN EN 60811-2-1. Microbial resistance: DIN EN 50525-2-21 / DIN VDE 0282-10. Hydrolysis resistance: DIN EN 50525-2-21. Oil resistance: DIN EN 60811-2-1. UL approval: AWM STYLE 21924/11558 105°C 300V AWM I A/B 105°C 300V FT2 (cable). UL File Number: E231213. Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-50 ... 105 °C (-58 ... 221 °F)Cable, flexing-30 ... 105 °C (-22 ... 221 °F): . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -50 ... 105 °C (-58 ... 221 °F). Cable, flexing: -30 ... 105 °C (-22 ... 221 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to pin 1 and screw connection: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to pin 1 and screw connection. Degree of protection: IP66 / IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, single bendSheath stripping forcemax. 80 N / 500 mmSheath colorblack (similar to RAL 9005)Number of cores4Core cross section0.34 mm2Cores colorCore 2: red Core 3: black Core 4: white Core 5: blueCore construction19 x 0.15 mm ∅ twisted pairsShieldtinned copper braiding, 85 % coverageLengthL5 mCable codeLi 9Y C11Y 2 x 2 x 0,34: . Sheath diameter: 6 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, single bend. Sheath stripping force: max. 80 N / 500 mm. Sheath color: black (similar to RAL 9005). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 2: red Core 3: black Core 4: white Core 5: blue. Core construction: 19 x 0.15 mm ∅ twisted pairs. Shield: tinned copper braiding, 85 % coverage. Length: 5 m. Cable code: Li 9Y C11Y 2 x 2 x 0,34. Drag chain suitability: . Drag chain cyclesmin. 3000000Motion velocitymax. 2.5 m/sTraverse distance0.51 mAccelerationmax. 12 m/s2: . Drag chain cycles: min. 3000000. Motion velocity: max. 2.5 m/s. Traverse distance: 0.51 m. Acceleration: max. 12 m/s2. Mass: 259.5 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPSalt water resistanceyesOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Salt water resistance: yes. Oil resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
