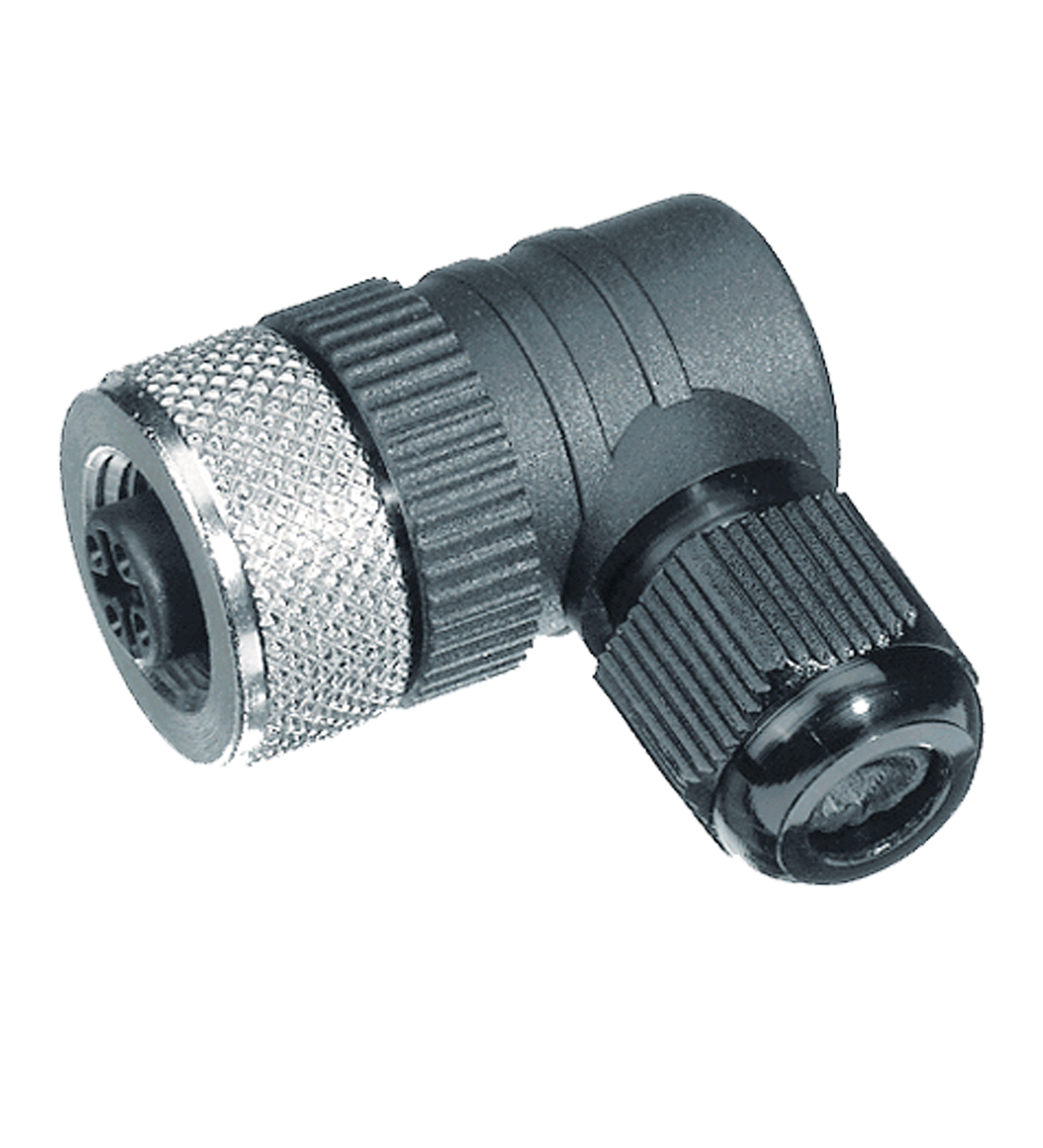

V15-W-PG7

Female connector, field-attachable. Female connector M12 angled A-coded 5-pin, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins5Cod...

Female connector, field-attachable. Female connector M12 angled A-coded 5-pin, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins5CodingA-codedCustomizationCoding rotateable in steps of 90°: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 5. Coding: A-coded. Customization: Coding rotateable in steps of 90°. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Volume resistance: < 10 mΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: -28 ... 90 °C (-18.4 ... 194 °F) , note derating. Pollution degree: 3. Plug connector: . Tightening torque1.5 ... 1.6 NmTool installationstraight knurlingMating cyclesmin. 50: . Tightening torque: 1.5 ... 1.6 Nm. Tool installation: straight knurling. Mating cycles: min. 50. Degree of protection: IP65. Connection: screw terminals for max. 0.75 mm2 / AWG 18. Cable: . Sheath diameter4 ... 6 mmCore cross section0.75 mm2 / 18 AWG max.: . Sheath diameter: 4 ... 6 mm. Core cross section: 0.75 mm2 / 18 AWG max.. Mass: 28.9 g. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyPBT, blackSealNBR , FKMContact surfaceCuSnZn: . Screw connection: Zinc diecast, nickel-plated. Body: PBT, black. Seal: NBR , FKM. Contact surface: CuSnZn

Brand	Pepperl Fuchs
Lifecycle status	active
