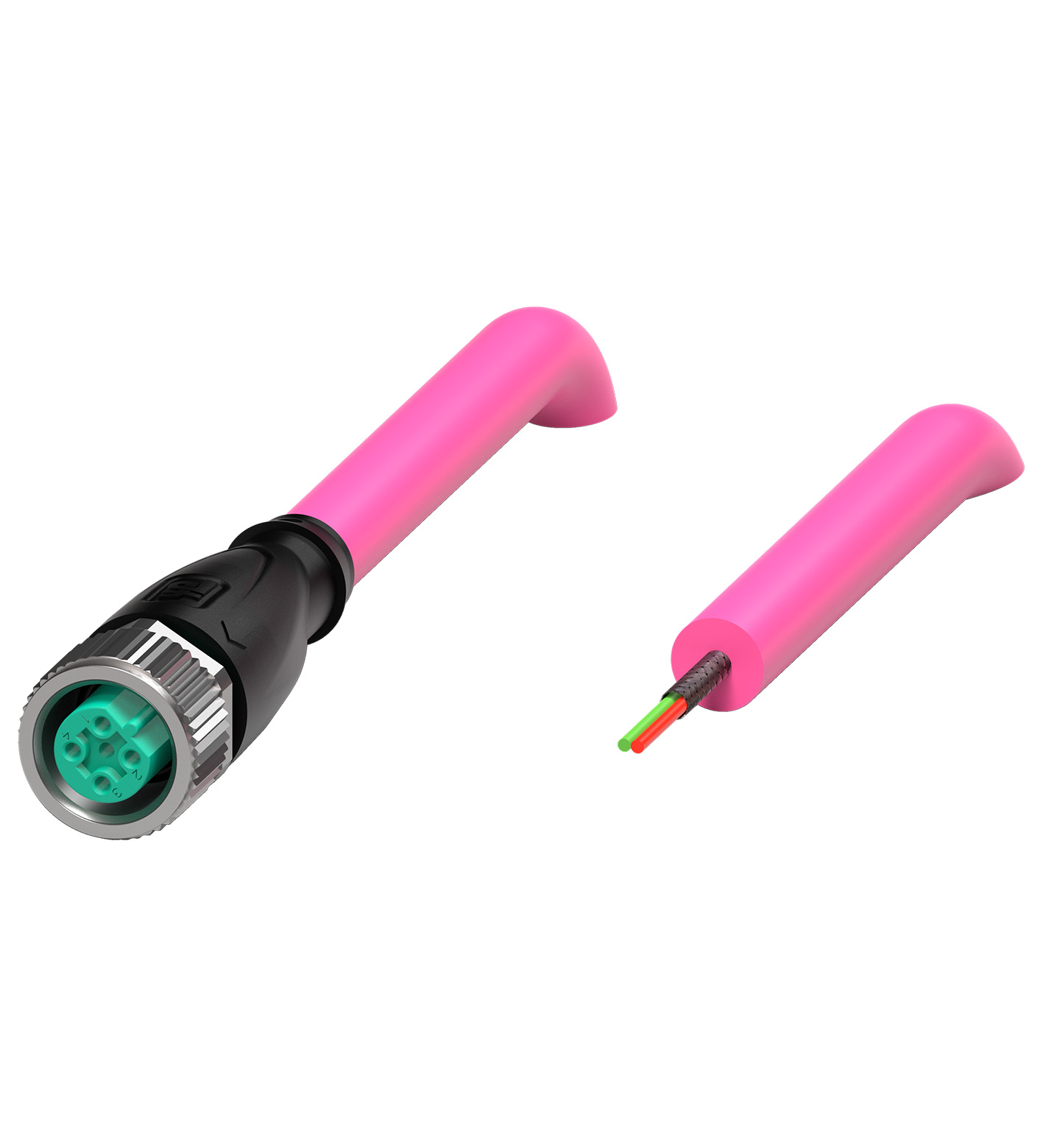

V15B-G-10M-PUR-ABG

Cable socket, shielded. PROFIBUS bus cable female cordset single-ended M12 straight B-coded, 5-pin, PUR cable 2-core violet, shielded. Connector 1: . ConnectionsocketConstruction typeM12StylestraightL...

Cable socket, shielded. PROFIBUS bus cable female cordset single-ended M12 straight B-coded, 5-pin, PUR cable 2-core violet, shielded. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingB-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: B-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-1-2. Halogen-free: DIN VDE 0472-815 IEC 60754-1. Ambient temperature: . Plug connector-25 ... 90 °C (-13 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-30 ... 80 °C (-22 ... 176 °F): . Plug connector: -25 ... 90 °C (-13 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -30 ... 80 °C (-22 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmLoosening protectionintegratedTool installationstraight knurlingMating cyclesmin. 100Shieldingshield connected to screw connection: . Tightening torque: 0.4 Nm. Loosening protection: integrated. Tool installation: straight knurling. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP65/IP67/IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter7.8 mmBending radiusmin. 40 mm , movable installationmin. 65 mm , fixed installationSheath colorviolet (similar to RAL 4001)Number of cores2Core cross section0.25 mm2Cores colorCore 2: green Core 4: redCore construction19 x 0.13 mm ∅Shieldtinned copper braiding, 85 % coverageLengthL10 m: . Sheath diameter: 7.8 mm. Bending radius: min. 40 mm , movable installationmin. 65 mm , fixed installation. Sheath color: violet (similar to RAL 4001). Number of cores: 2. Core cross section: 0.25 mm2. Cores color: Core 2: green Core 4: red. Core construction: 19 x 0.13 mm ∅. Shield: tinned copper braiding, 85 % coverage. Length: 10 m. Mass: 684 g. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealNBRContact surfaceNi/AuFlammabilityV-0: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: NBR. Contact surface: Ni/Au. Flammability: V-0. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPFlammabilityFT1: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Flammability: FT1. Cable marking sleeve: 2x PUR transparent , fixed to cable

Brand	Pepperl Fuchs
Lifecycle status	active
