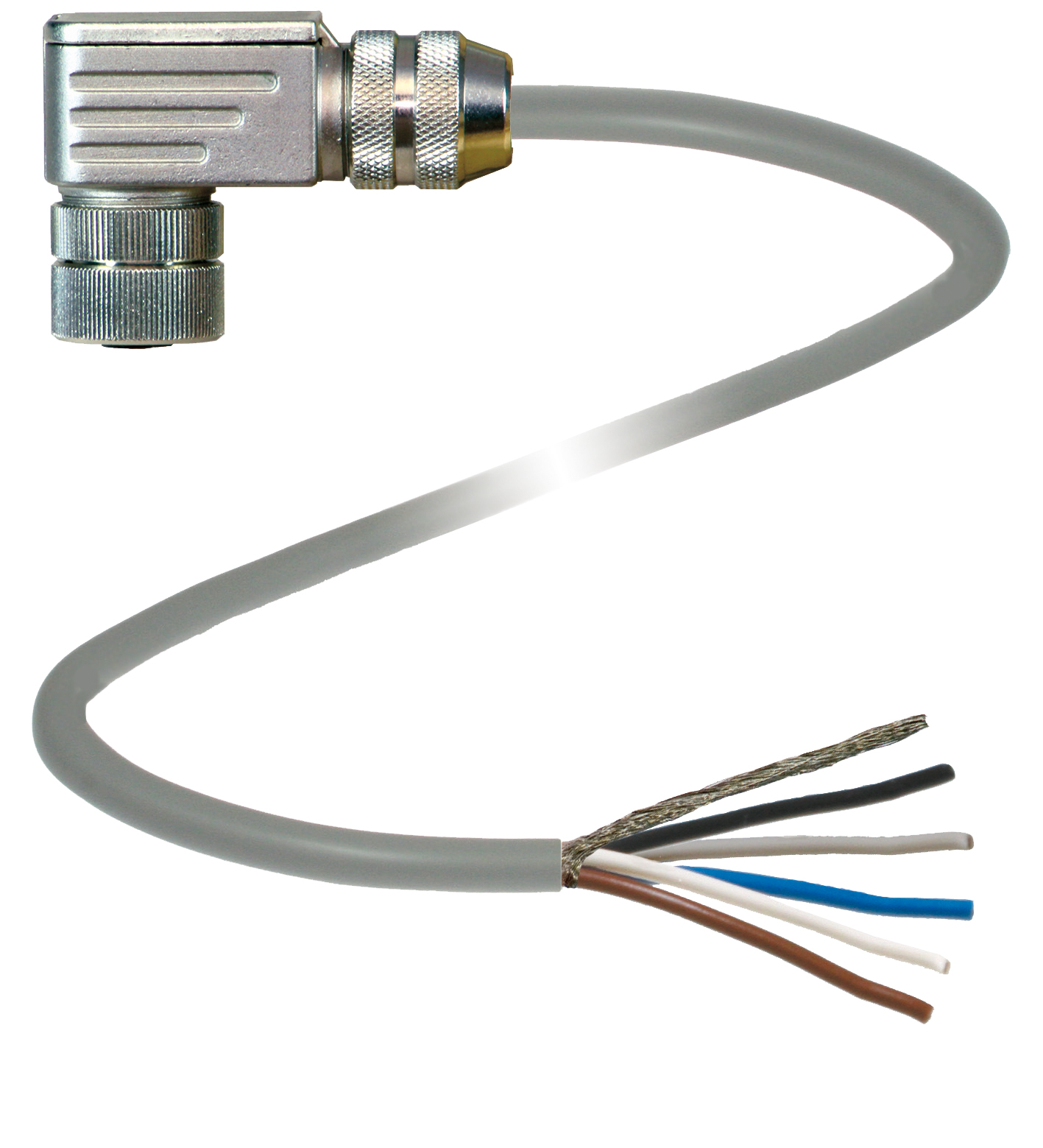

V15B-W-15M-LIHCH-TP

Female connector. SSI bus cable, B-coded M12, 5-pin cable. Number of pins: 5 + shield. Connection 1: socket. Construction type 1: angled. Threading 1: M12. Connection 2: cable end. Operating voltage:...

Female connector. SSI bus cable, B-coded M12, 5-pin cable. Number of pins: 5 + shield. Connection 1: socket. Construction type 1: angled. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Volume resistance: < 3 mΩ. Standard conformity: . Specificationconnector M12 x 1 : IEC 61076-2-101: . Specification: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: cable, movable installation: -5 ... 70 °C (23 ... 158 °F) cable, fixed installation: -30 ... 80 °C (-22 ... 176 °F). Pollution degree: 3. Degree of protection: IP67. Connection: 5-pin, M12 x 1 socket, B-coded. Material: . ContactsCuSnContact surfaceAuBodyZinc diecast, nickel-platedCablePolymer compoundSlotted nutZinc diecast, nickel-plated: . Contacts: CuSn. Contact surface: Au. Body: Zinc diecast, nickel-plated. Cable: Polymer compound. Slotted nut: Zinc diecast, nickel-plated. Cable: 3 pairs with 2 twisted cores each. Sheath diameter∅ 7.3 mmBending radius> 6 x cable diameter, fixed installation > 15 x cable diameter, movable installationColorgreyCores3 x 2 x 0.25 mm2Conductor construction14 x 0.15 mm ∅Shieldgrid covering 85 %LengthL15 m: . Sheath diameter: ∅ 7.3 mm. Bending radius: > 6 x cable diameter, fixed installation > 15 x cable diameter, movable installation. Color: grey. Cores: 3 x 2 x 0.25 mm2. Conductor construction: 14 x 0.15 mm ∅. Shield: grid covering 85 %. Length: 15 m. Mass: 1036 g

Brand	Pepperl Fuchs
Lifecycle status	active
