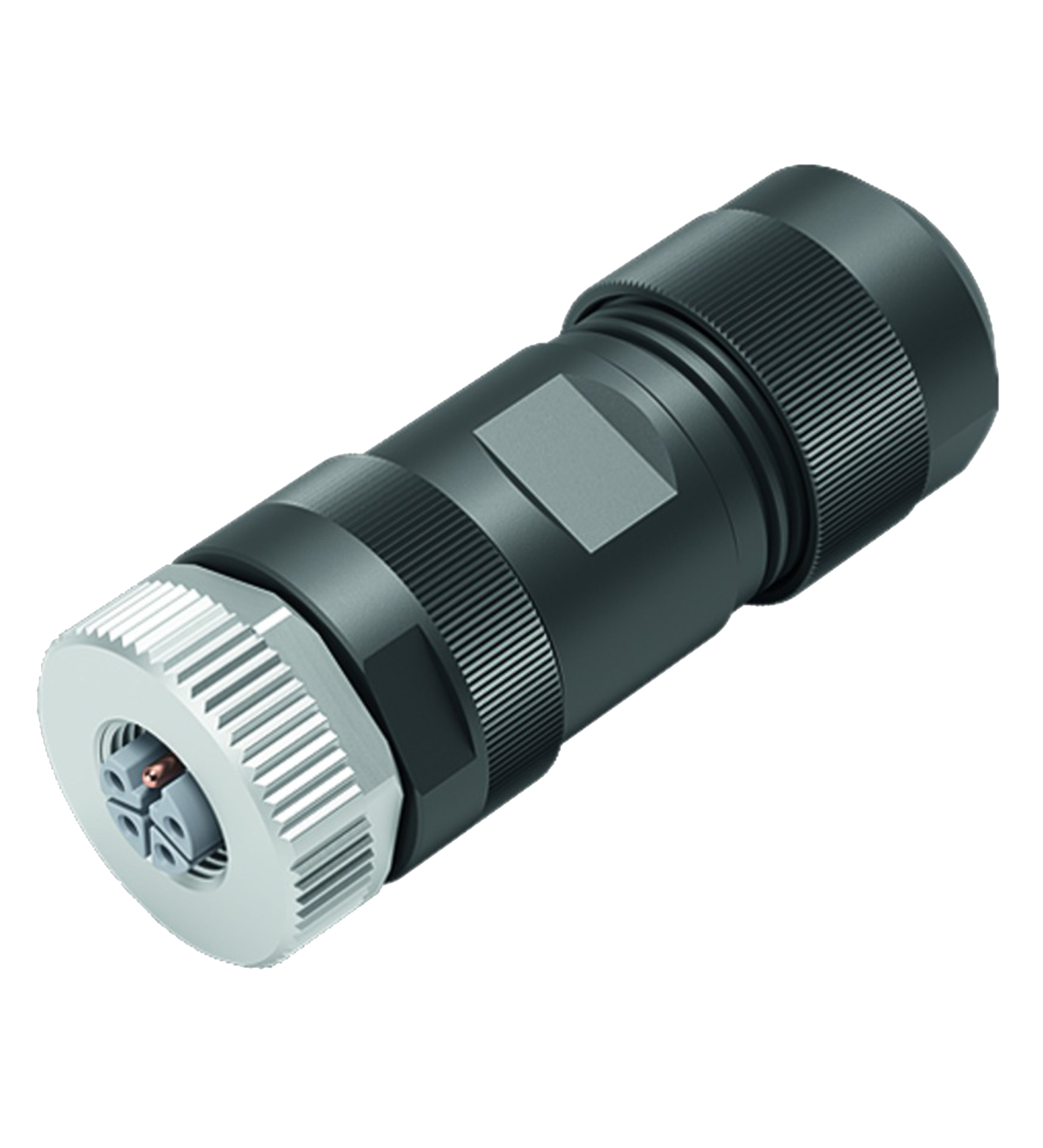

V15L-G-BK

Female connector, field-attachable. Female connector M12 straight L-coded 5-pin, for cable diameter 8 - 13 mm, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLocking...

Female connector, field-attachable. Female connector M12 straight L-coded 5-pin, for cable diameter 8 - 13 mm, field-attachable. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingL-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: L-coded. Rated operating voltage: max. 48 V AC / 63 V DC. Rated operating current: 1.5 mm², AWG 16 : 12 A 2.5 mm², AWG 14 : 16 A. Surge protection: Category III. Insulation resistance: min. 10000 MΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-111. UL File Number: E363587. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmTool installationstraight knurling , hexagon nut SW = 22 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Tool installation: straight knurling , hexagon nut SW = 22 mm. Mating cycles: min. 100. Degree of protection: IP67. Connection: screw terminals for max. 1.5 mm2 / AWG 16 with wire end ferrule screw terminals for max. 2.5 mm2 / AWG 14 without wire end ferrules. Cable: . Sheath diameter8 ... 13 mmCore cross section2.5 mm2 / 14 AWG max.: . Sheath diameter: 8 ... 13 mm. Core cross section: 2.5 mm2 / 14 AWG max.. Installation: screw terminals 0.4 Nm. Mass: 52 g. Plug connector: . Screw connectionCuZn, nickel-platedBodyPA, blackContact surfacegold plated (Au)FlammabilityV-0: . Screw connection: CuZn, nickel-plated. Body: PA, black. Contact surface: gold plated (Au). Flammability: V-0

Brand	Pepperl Fuchs
Lifecycle status	active
