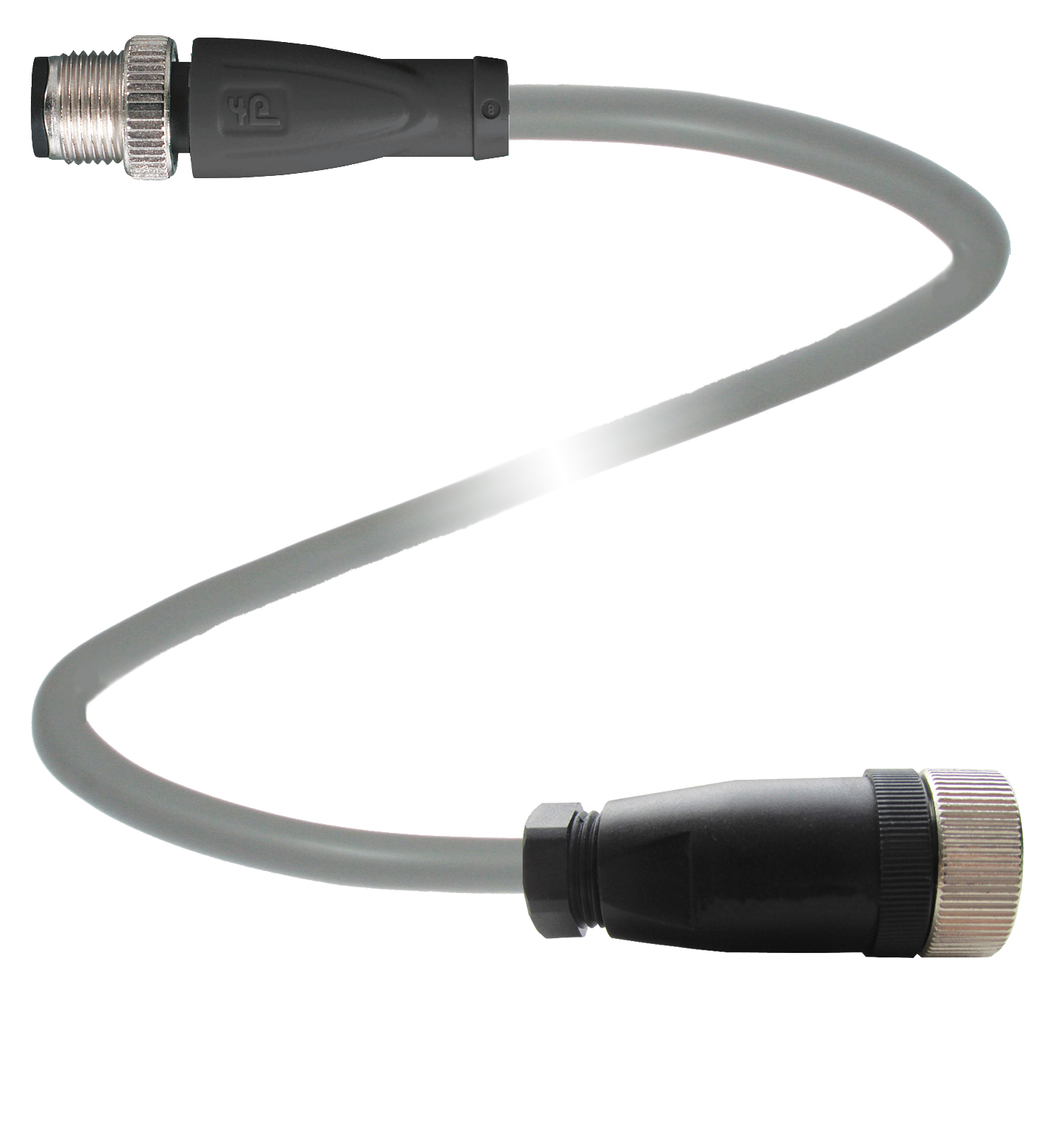

V15S-G-0,5M-CGR-BE

Adapter cable. Adapter cable for programmable ENI58PL-******-1024CGR-*BE. Number of pins: 5/8. Connection 1: plug. Construction type 1: straight. Threading 1: M12. Connection 2: socket. Construction t...

Adapter cable. Adapter cable for programmable ENI58PL-******-1024CGR-*BE. Number of pins: 5/8. Connection 1: plug. Construction type 1: straight. Threading 1: M12. Connection 2: socket. Construction type 2: straight. Threading 2: M12. Operating voltage: max. 30 V DC. Operating current: max. 500 mA at 24 V DC. Ambient temperature: -5 ... 70 °C (23 ... 158 °F). Contact elements: spring-loaded contact socket. Degree of protection: IP44. Material: . BodyTPU, blackCablePVC: . Body: TPU, black. Cable: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 4.6 mmBending radius≥ 69 mm, movable installation ≥ 27.6 mm, fixed installationColorgreyLengthL0.5 m: . Sheath diameter: ∅ 4.6 mm. Bending radius: ≥ 69 mm, movable installation ≥ 27.6 mm, fixed installation. Color: grey. Length: 0.5 m. Mass: 62 g

Brand	Pepperl Fuchs
Lifecycle status	active
