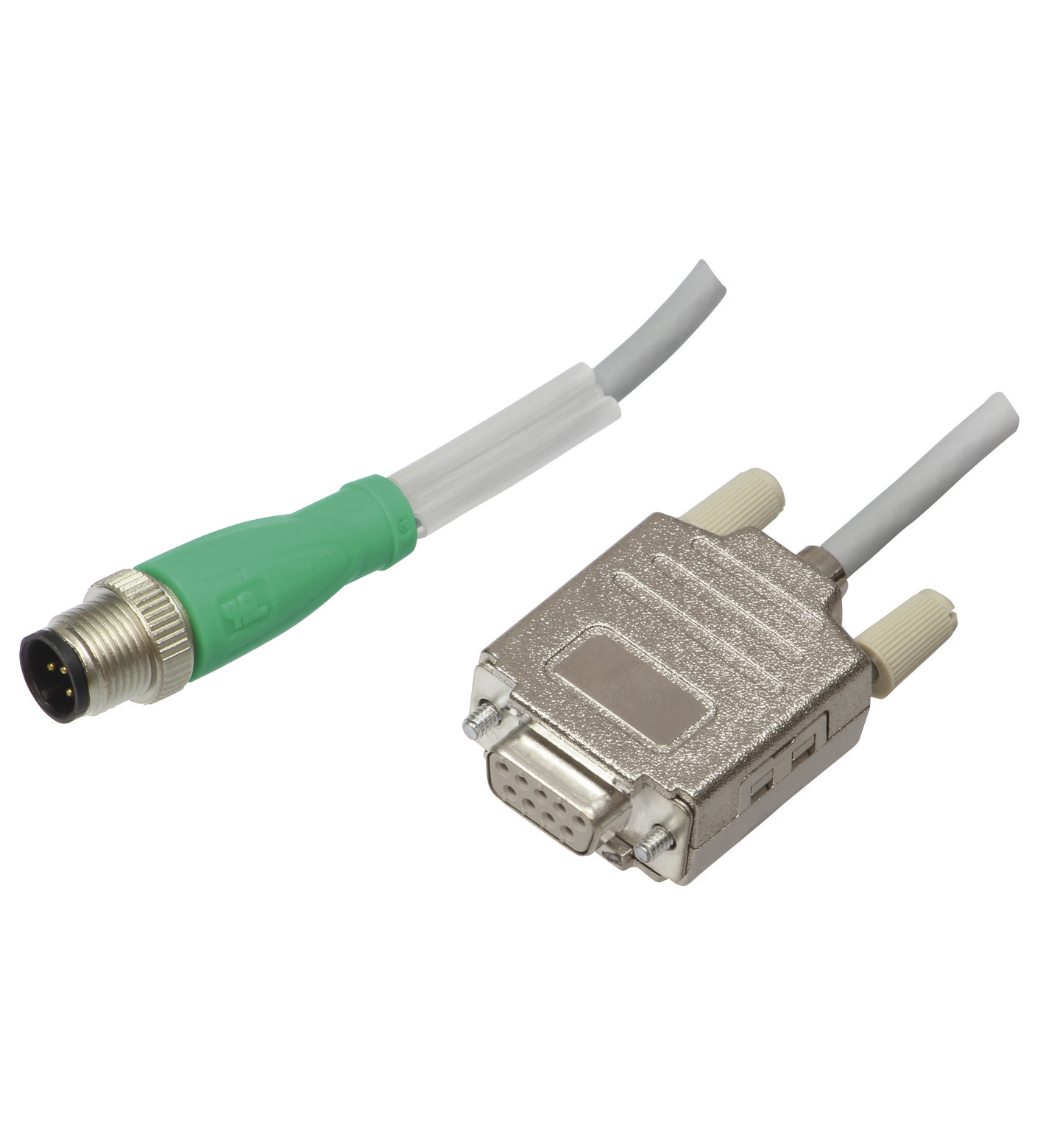

V15S-G-0,5M-PUR-ABG-SUBD9
Adapter M12 x 1 on Sub-D. Adapter, M12 x1, to D-sub, 9-pin. Number of pins: 5 + shield. Connection 1: plug. Construction type 1: straight. Threading 1: M12. Connection 2: socket. Constructio...
Adapter M12 x 1 on Sub-D. Adapter, M12 x1, to D-sub, 9-pin. Number of pins: 5 + shield. Connection 1: plug. Construction type 1: straight. Threading 1: M12. Connection 2: socket. Construction type 2: straight. Threading 2: Sub-D. Operating voltage: max. 36 V DC. Operating current: max. 1.5 A. Volume resistance: < 30 mΩ. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Pin diameter: 1 mm. Degree of protection: IP20. Material: . ContactsCuZnContact surfaceAuBodyTPUCablePURSlotted nutDiecast zinc: . Contacts: CuZn. Contact surface: Au. Body: TPU. Cable: PUR. Slotted nut: Diecast zinc. Cable: fine-strand, flexible. ColorblackCores5 x 0.34 mm2LengthL0.5 m: . Color: black. Cores: 5 x 0.34 mm2. Length: 0.5 m. Mass: approx. 221 g
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
