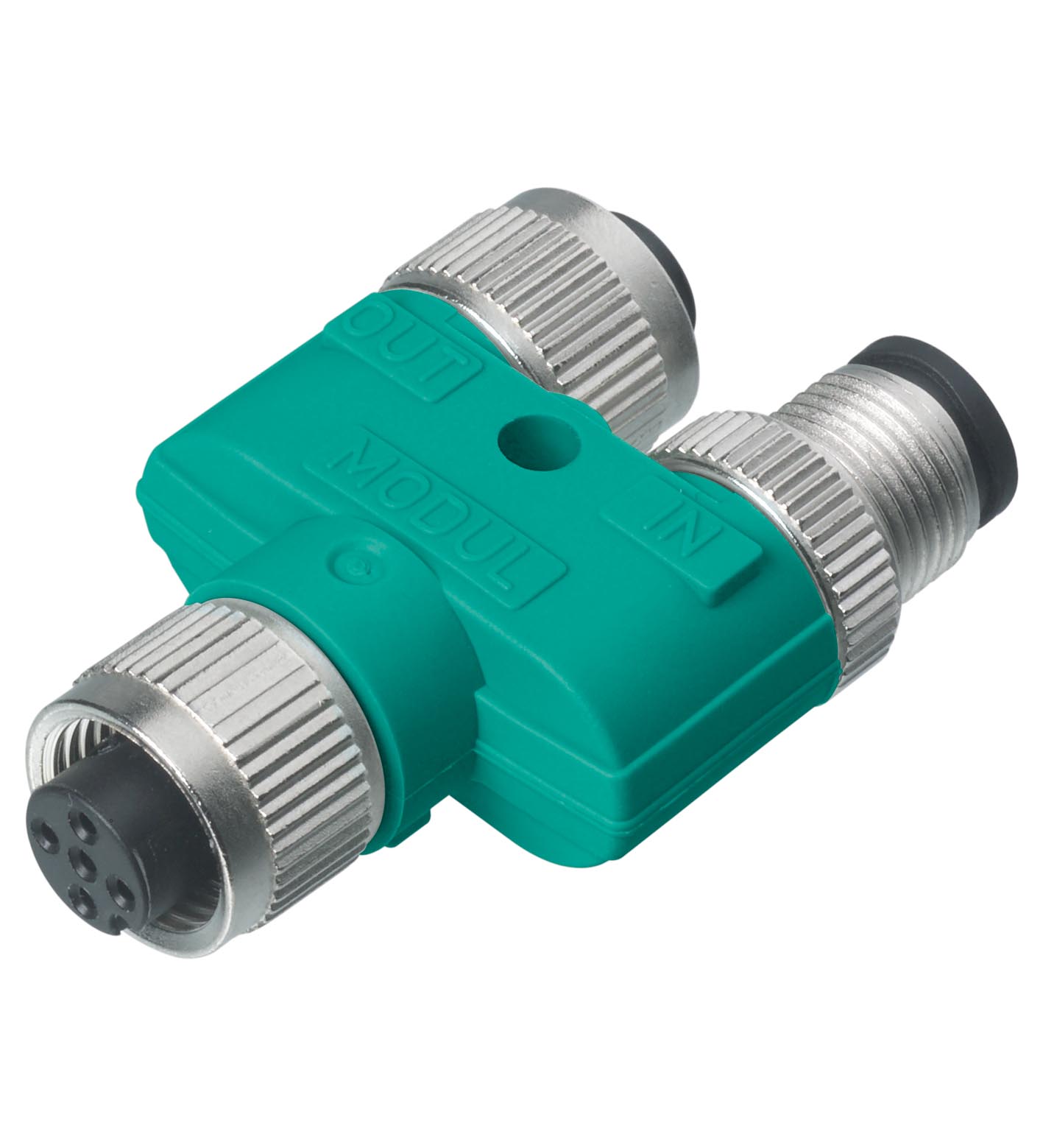

V15S-YEE-V15

Y-Splitter. Y-Splitter M12 socket to M12 plug / M12 socket 5-pin A-coded. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingA-coded: . Connect...

Y-Splitter. Y-Splitter M12 socket to M12 plug / M12 socket 5-pin A-coded. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: A-coded. Connector 3: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: A-coded. Operating voltage: max. 48 V AC / 60 V DC. Operating current: 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: -25 ... 90 °C (-13 ... 194 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP65 / IP67. Mass: 27.7 g. Dimensions: . Width32.8 mmLength49.9 mm: . Width: 32.8 mm. Length: 49.9 mm. Mounting: Mounting hole for M4 screw. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPUContact surfaceNi/AuFlammabilityHB: . Screw connection: Zinc diecast, nickel-plated. Body: TPU. Contact surface: Ni/Au. Flammability: HB

Brand	Pepperl Fuchs
Lifecycle status	active
