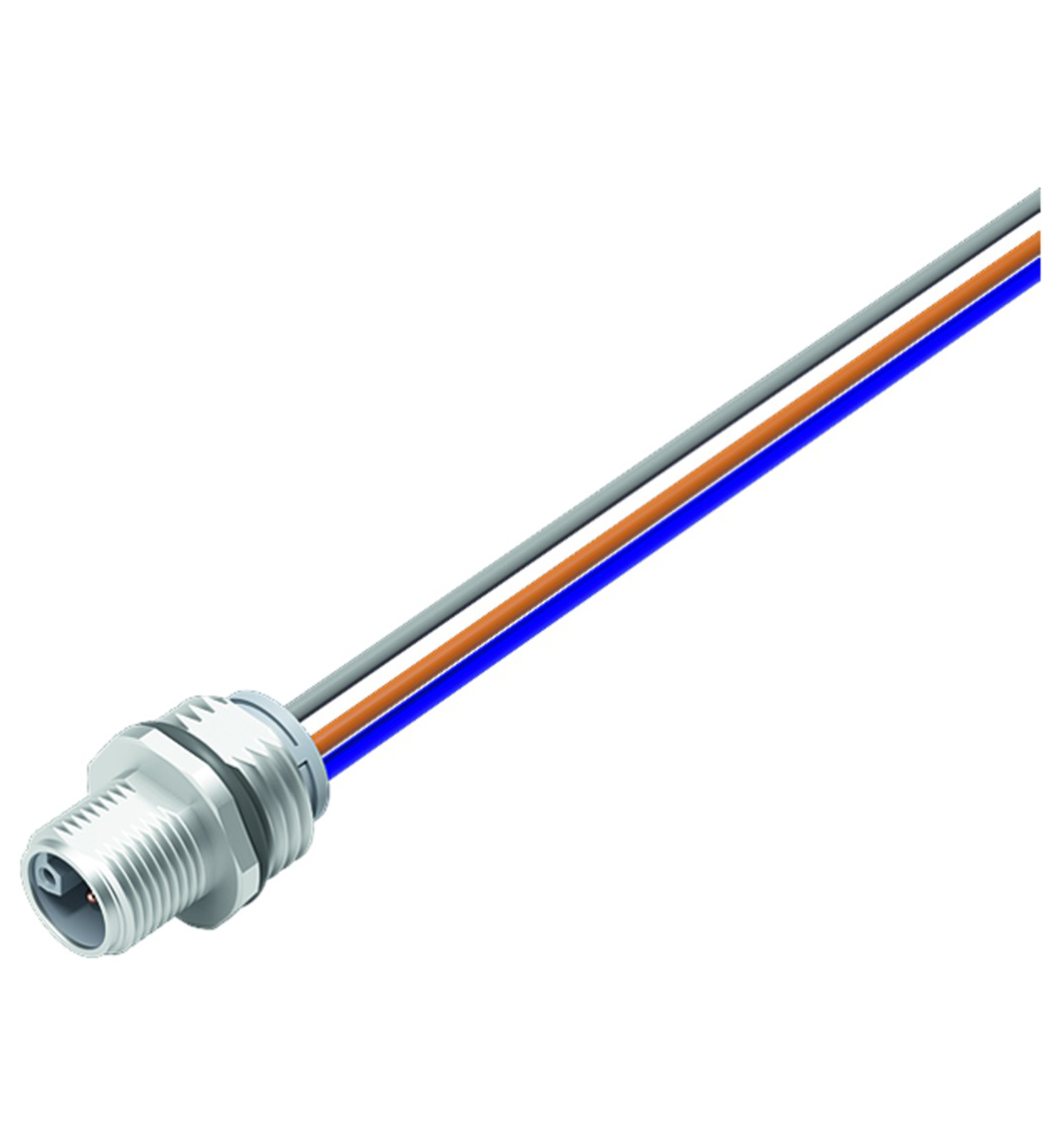

V15SL-M16-500

Receptacles. Receptacle M12 plug straight L-coded, 5-pin, single cores, mounting M16. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingL-coded:...

Receptacles. Receptacle M12 plug straight L-coded, 5-pin, single cores, mounting M16. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingL-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: L-coded. Connector 2: . Connectioncable end: . Connection: cable end. Rated voltage: 63 V. Rated current: 12 A. Surge protection: Category III. Insulation resistance: min. 10000 MΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-111. UL File Number: E363587. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Mating cycles: min. 100. Degree of protection: IP68. Connection: flexible leads (16 AWG). Cable: . Number of cores5Core cross section1.5 mm2 / 16 AWGCores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core 5: greyLengthL500 m: . Number of cores: 5. Core cross section: 1.5 mm2 / 16 AWG. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: grey. Length: 500 m. Installation: Front mounting M16 , tightening torque: 1.25 Nm. Mass: 54 g. Plug connector: . Screw connectionZinc diecast, nickel-platedContact surfacegold plated (Au): . Screw connection: Zinc diecast, nickel-plated. Contact surface: gold plated (Au). Scope of delivery: locknut not included

Brand	Pepperl Fuchs
Lifecycle status	active
