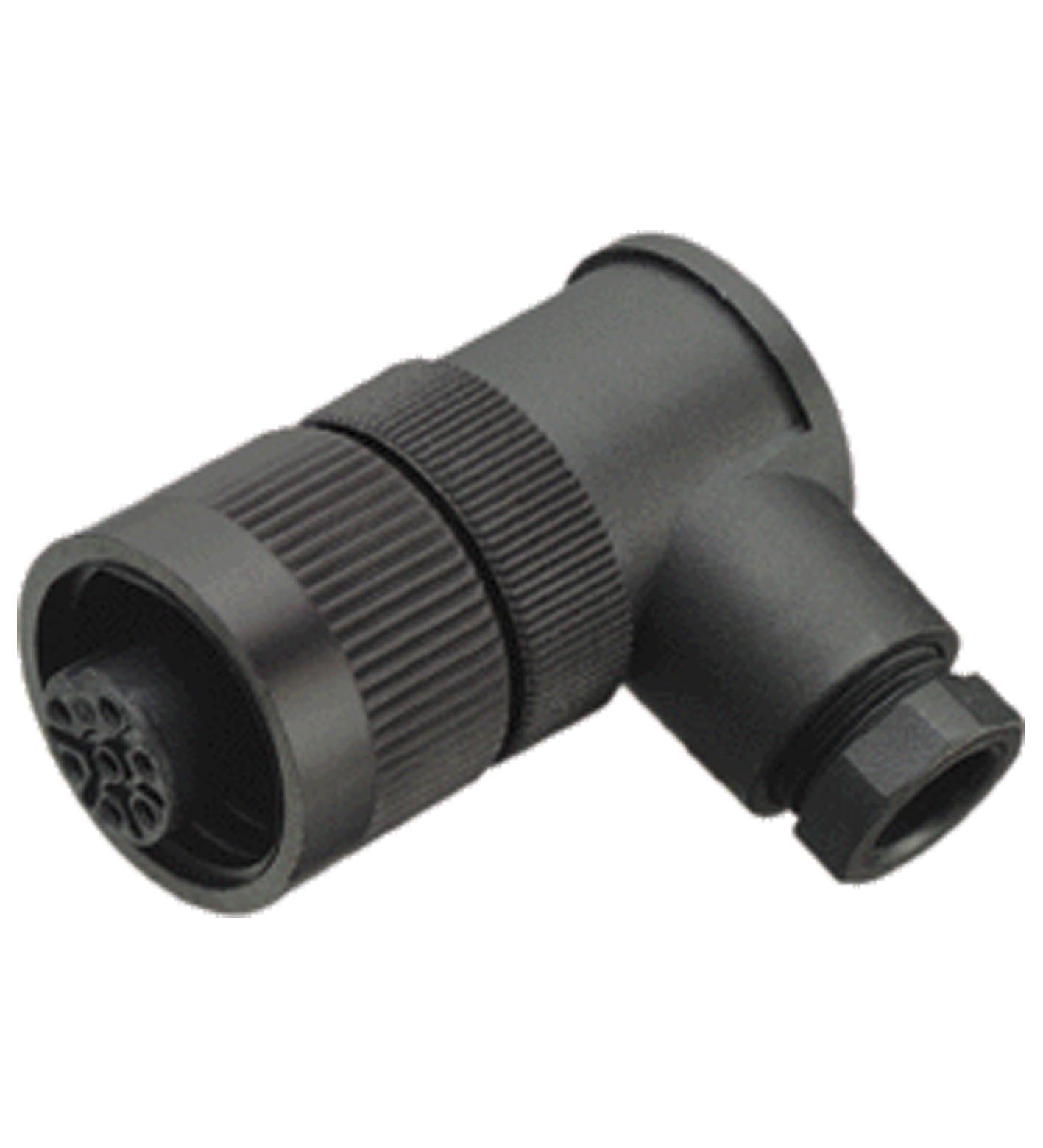

V16-W

Female cordset, field attachable. Female connector, dia. 24, 6-pin+PE, field attachable. Number of pins: 6 + PE. Connection 1: socket. Construction type 1: angled. Threading 1: Rd 24. Operating voltag...

Female cordset, field attachable. Female connector, dia. 24, 6-pin+PE, field attachable. Number of pins: 6 + PE. Connection 1: socket. Construction type 1: angled. Threading 1: Rd 24. Operating voltage: max. 250 V. Operating current: max. 10 A. Ambient temperature: -40 ... 100 °C (-40 ... 212 °F). Pollution degree: 3. Degree of protection: IP67. Connection: 1 x socket, Rd 24 x 1/8" screw terminals for max. 1.5 mm2 PG9 cable gland. Material: . ContactsCuSn / AuBodyPBT: . Contacts: CuSn / Au. Body: PBT. Cable: . Sheath diameter6 ... 8 mm: . Sheath diameter: 6 ... 8 mm. Mass: 42 g. Life span: > 500 connections

Brand	Pepperl Fuchs
Lifecycle status	active
