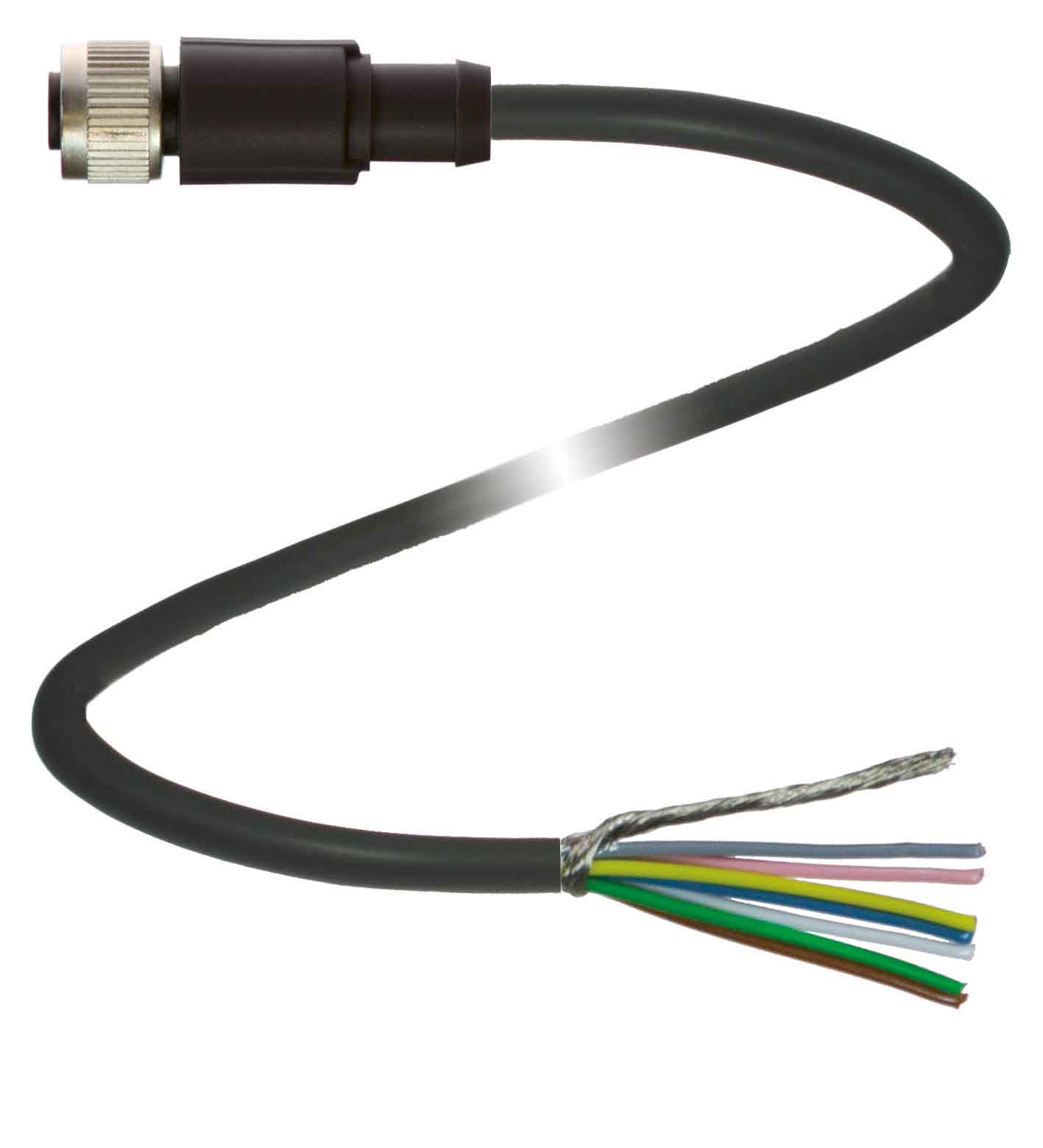

V17-G-10M-PVC-ABG

Cable socket, shielded. Female cordset, M12, 8-pin, shielded, PVC cable. Number of pins: 8 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Ope...

Cable socket, shielded. Female cordset, M12, 8-pin, shielded, PVC cable. Number of pins: 8 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 30 V DC. Operating current: max. 2 A. Volume resistance: < 5 mΩ. Ambient temperature: cable, movable installation: -5 ... 70 °C (-238 ... 343 K),cable, fixed installation: -30 ... 70 °C (243 ... 343 K) Connector: -25 ... 90 °C (-13 ... 194 °F). Degree of protection: IP65. Material: . ContactsCuSn / AuContact surfaceNi/AuBodyTPU, greenCablePVCSlotted nutZinc diecast, nickel-platedCore insulationPVC: . Contacts: CuSn / Au. Contact surface: Ni/Au. Body: TPU, green. Cable: PVC. Slotted nut: Zinc diecast, nickel-plated. Core insulation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 7.5 mmColorblackCores8 x 0.34 mm2Conductor construction42 x 0.1 mm ∅ShieldgridLengthL10 m: . Sheath diameter: ∅ 7.5 mm. Color: black. Cores: 8 x 0.34 mm2. Conductor construction: 42 x 0.1 mm ∅. Shield: grid. Length: 10 m. Mass: 920 g

Brand	Pepperl Fuchs
Lifecycle status	active
