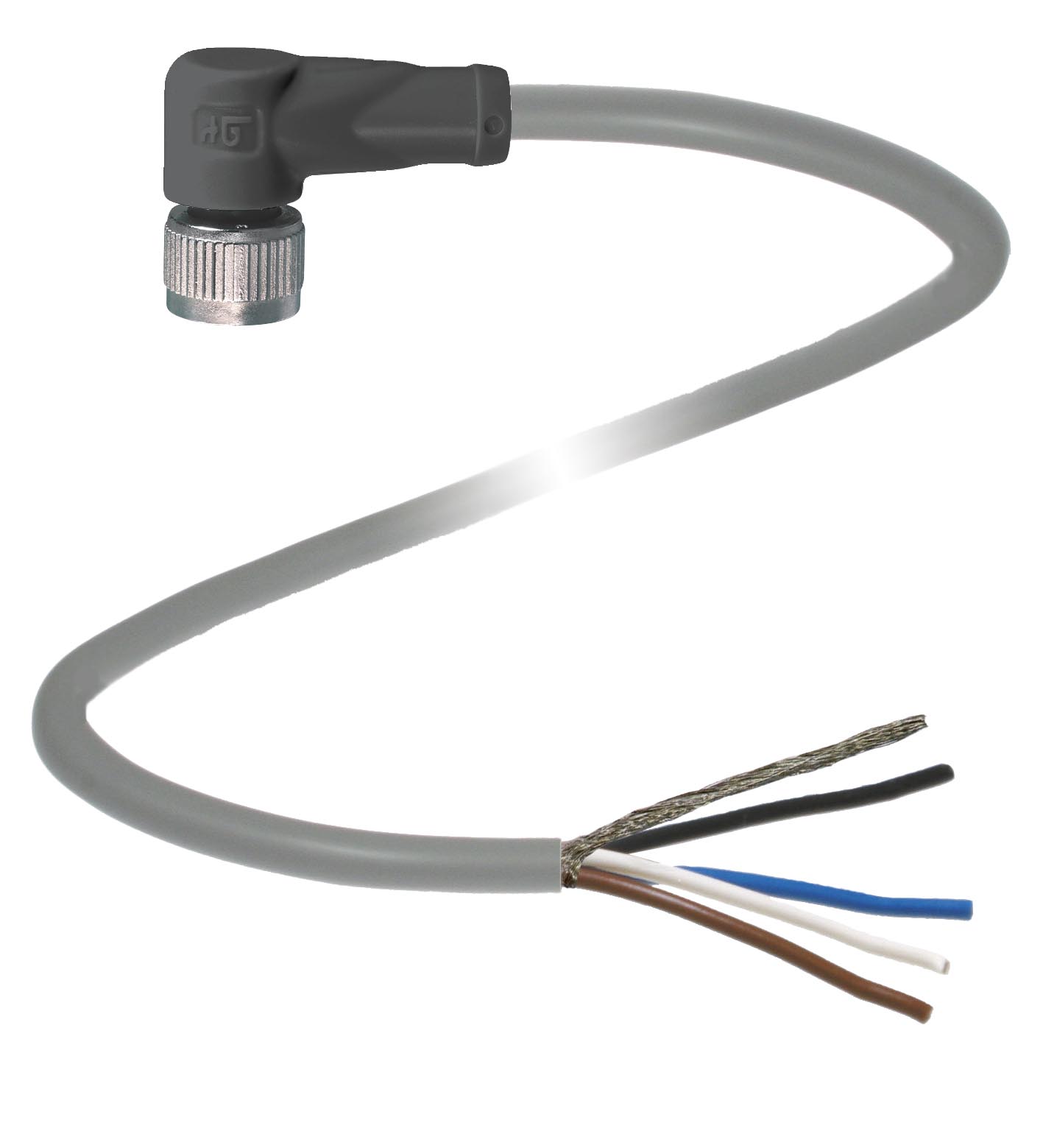

V17-W-BK2M-PUR-U/ABG

Cable socket, shielded. Female Cordet, M12, shielded, Knurled nut suitable for tool assembly, Immunity to vibration, with mechanical latching, Gold-plated and machined contacts. Number of pins: 7. Con...

Cable socket, shielded. Female Cordet, M12, shielded, Knurled nut suitable for tool assembly, Immunity to vibration, with mechanical latching, Gold-plated and machined contacts. Number of pins: 7. Connection 1: socket. Construction type 1: angled. Threading 1: M12. Connection 2: cable end. Volume resistance: < 5 mΩ. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008FlammabilityGrip: UL 94: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Flammability: Grip: UL 94. Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutDiecast zinc: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Cable: . ShieldgridLengthL2 m: . Shield: grid. Length: 2 m. Mass: 115.3 g. Flammability: . Contact carrierHBHousingV-2: . Contact carrier: HB. Housing: V-2

Brand	Pepperl Fuchs
Lifecycle status	active
