Pepperl Fuchs

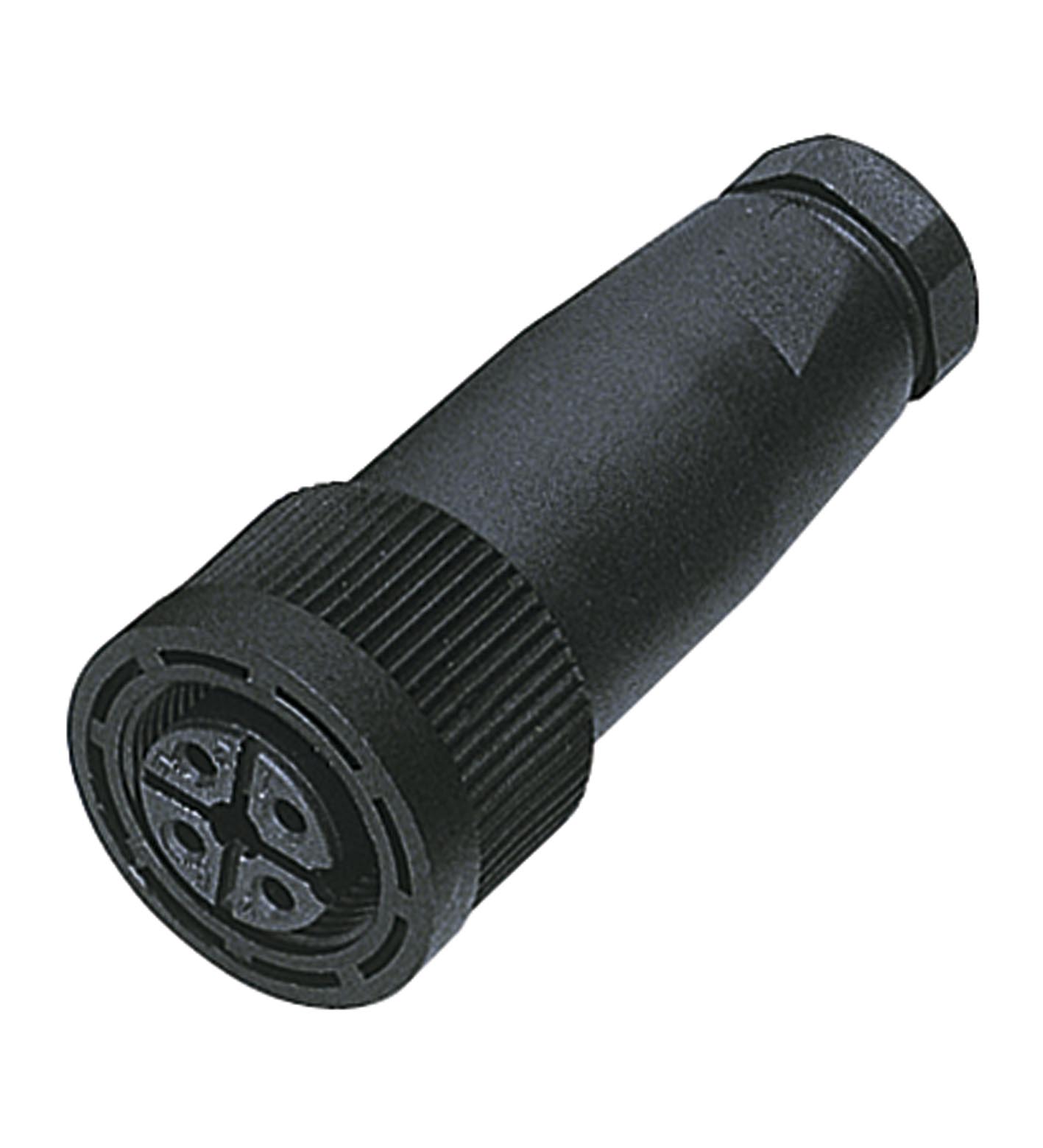

V18-G

Female connector, field-attachable. Female connector M18 straight 4-pin, for cable diameter 6.5 - 8 mm, field-attachable. Connector 1: . ConnectionsocketConstruction typeM18StylestraightLockingscrew connectionNumber of pins4: . Connection: socket. Construction type: M18. Style: straight. Locking: screw connection. Number of pins: 4. Operating voltage: max. 250 V. Operating current: max. 16 A. Surge protection: Category III. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. UL approval: . Maximum permissible operating currentmax. 5 A: . Maximum permissible operating current: max. 5 A. UL File Number: E363587. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmTool installationstraight knurlingMating cyclesmin. 50: . Tightening torque: 0.6 Nm. Tool installation: straight knurling. Mating cycles: min. 50. Degree of protection: IP67. Connection: screw terminals for max. 1.5 mm2 / AWG 16 PG9 cable gland. Cable: . Sheath diameter6.5 ... 8 mmCore cross section1.5 mm2 / 16 AWG max.: . Sheath diameter: 6.5 ... 8 mm. Core cross section: 1.5 mm2 / 16 AWG max.. Mass: 27 g. Plug connector: . Screw connectionPABodyPBT/PAContact surfaceCuSnZn: . Screw connection: PA. Body: PBT/PA. Contact surface: CuSnZn

Brand	Pepperl Fuchs
Lifecycle status	active
