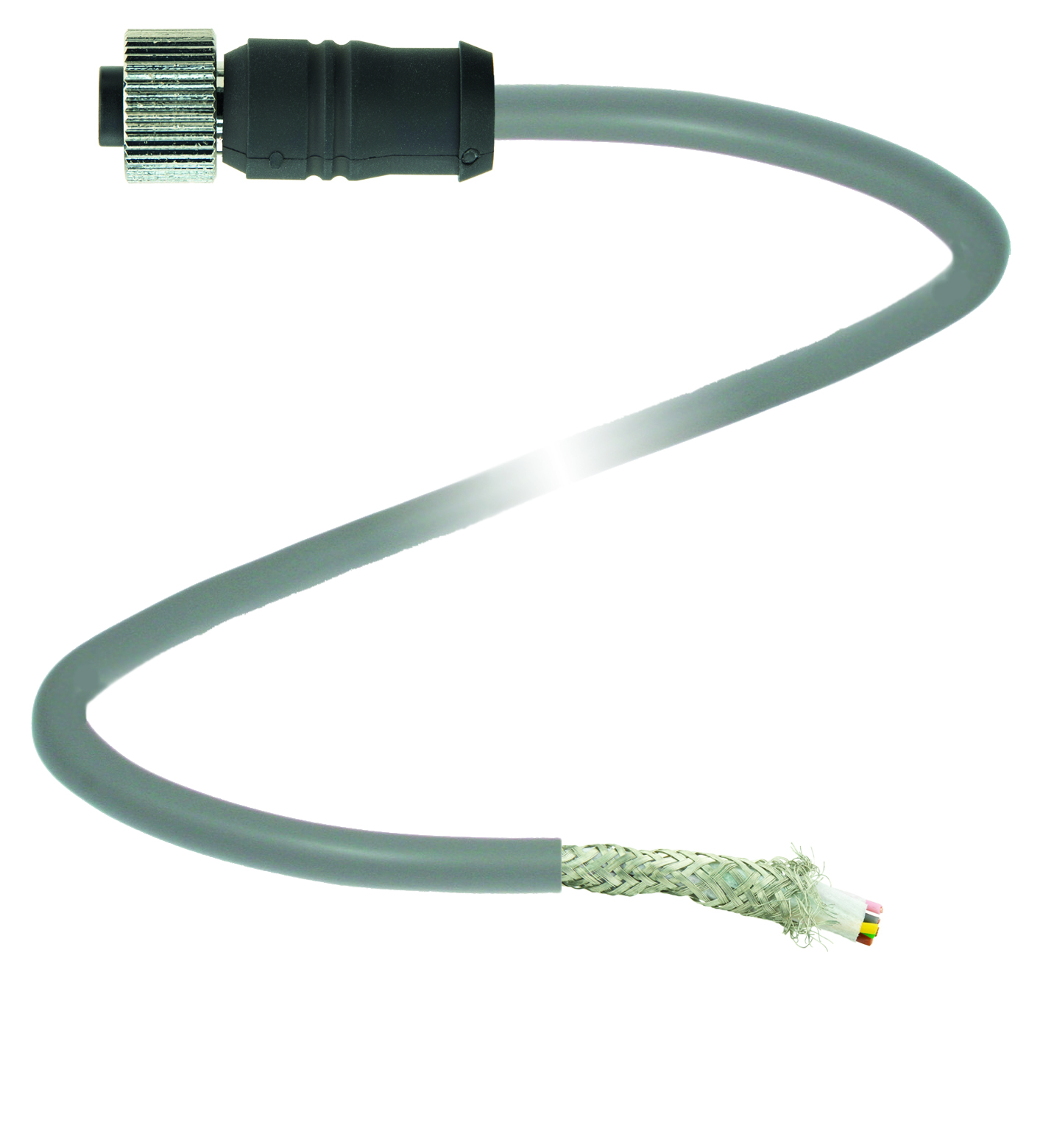

V19-G-20M-PUR-A5S-PCV

Cable socket, shielded. Female cordset, M12, 8-pin, shielded, PUR cable. Number of pins: 8 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Ope...

Cable socket, shielded. Female cordset, M12, 8-pin, shielded, PUR cable. Number of pins: 8 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 60 V DC. Operating current: max. 2 A. Volume resistance: < 5 mΩ. Ambient temperature: -20 ... 80 °C (-4 ... 176 °F). Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Core insulation: PP. Cable: fine-strand, flexible. Sheath diameter∅ 6 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationColorgreyCores6 x 0.25 mm2 twisted pairsConductor construction19 x 0.13 mm ∅ShieldFoil tinned copper braidingLengthL20 m: . Sheath diameter: ∅ 6 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Color: grey. Cores: 6 x 0.25 mm2 twisted pairs. Conductor construction: 19 x 0.13 mm ∅. Shield: Foil tinned copper braiding. Length: 20 m. Drag chain suitability: . Drag chain cyclesmin. 2000000Motion velocitymax. 3 m/sAccelerationmax. 10 m/s2Torsional stress± 360 °/m: . Drag chain cycles: min. 2000000. Motion velocity: max. 3 m/s. Acceleration: max. 10 m/s2. Torsional stress: ± 360 °/m

Brand	Pepperl Fuchs
Lifecycle status	active
