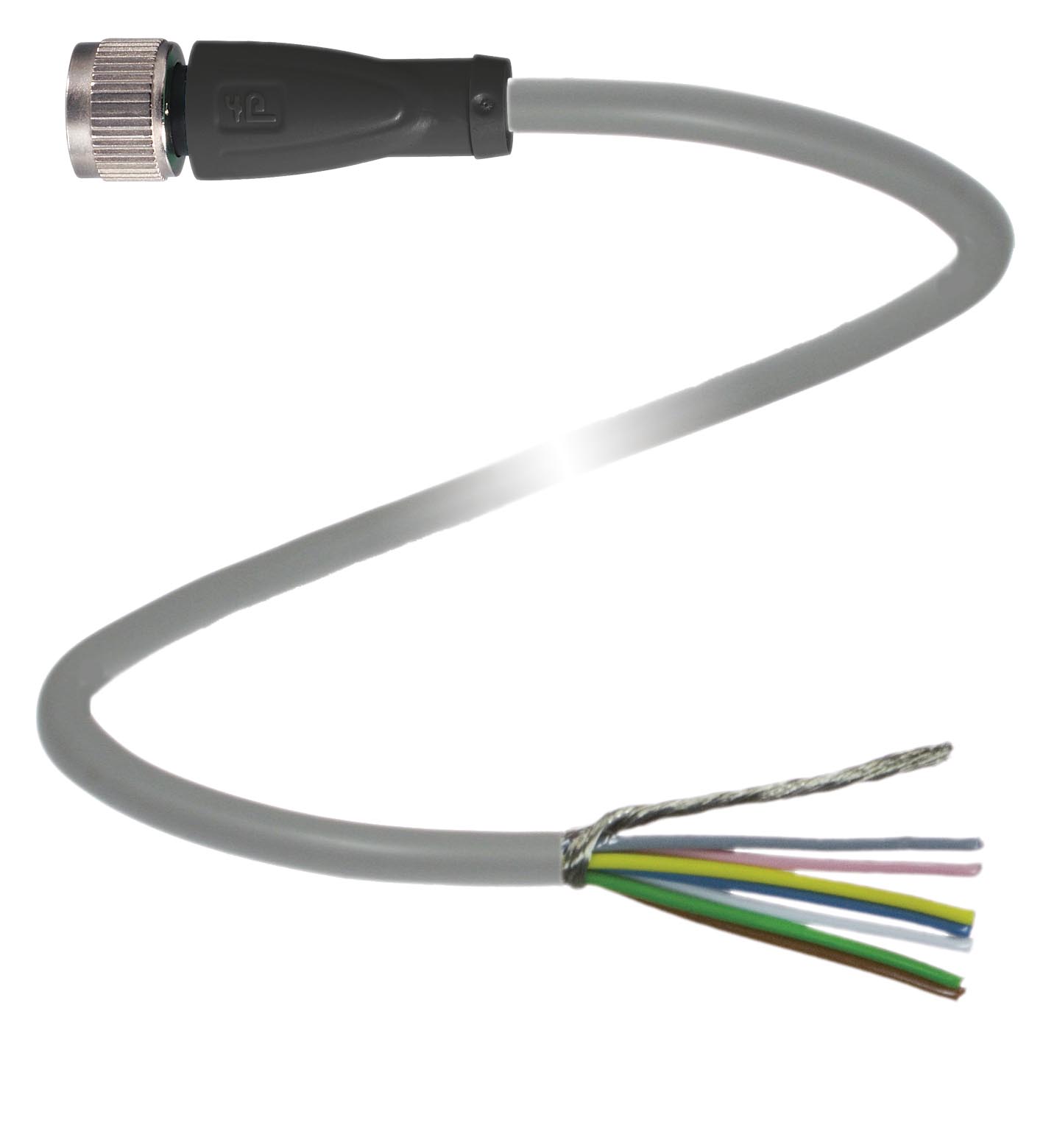

V19-G-2M-PVC-TP

Cable socket, shielded. Female cordset, M12, 8-pin, shielded, PVC cable. Number of pins: 8 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Ope...

Cable socket, shielded. Female cordset, M12, 8-pin, shielded, PVC cable. Number of pins: 8 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 30 V DC. Operating current: max. 2 A. Volume resistance: < 5 mΩ. Characteristic impedance: 100 Ω ± 15 Ω (> 1 MHz). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Contact elements: spring-loaded contact socket. Pin diameter: 0,8 mm. Degree of protection: IP67. Material: . ContactsCuZn / AuContact surfaceAuBodyTPU, blackCablePVCSlotted nutDiecast zincCore insulationPVC: . Contacts: CuZn / Au. Contact surface: Au. Body: TPU, black. Cable: PVC. Slotted nut: Diecast zinc. Core insulation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 6.2 mmBending radius> 15 x cable diameter, movable installation > 6 x cable diameter, fixed installationColorgreyCores4 x 2 x 0.14 mm2ShieldgridLengthL2 m: . Sheath diameter: ∅ 6.2 mm. Bending radius: > 15 x cable diameter, movable installation > 6 x cable diameter, fixed installation. Color: grey. Cores: 4 x 2 x 0.14 mm2. Shield: grid. Length: 2 m. Mass: 87.3 g

Brand	Pepperl Fuchs
Lifecycle status	active
