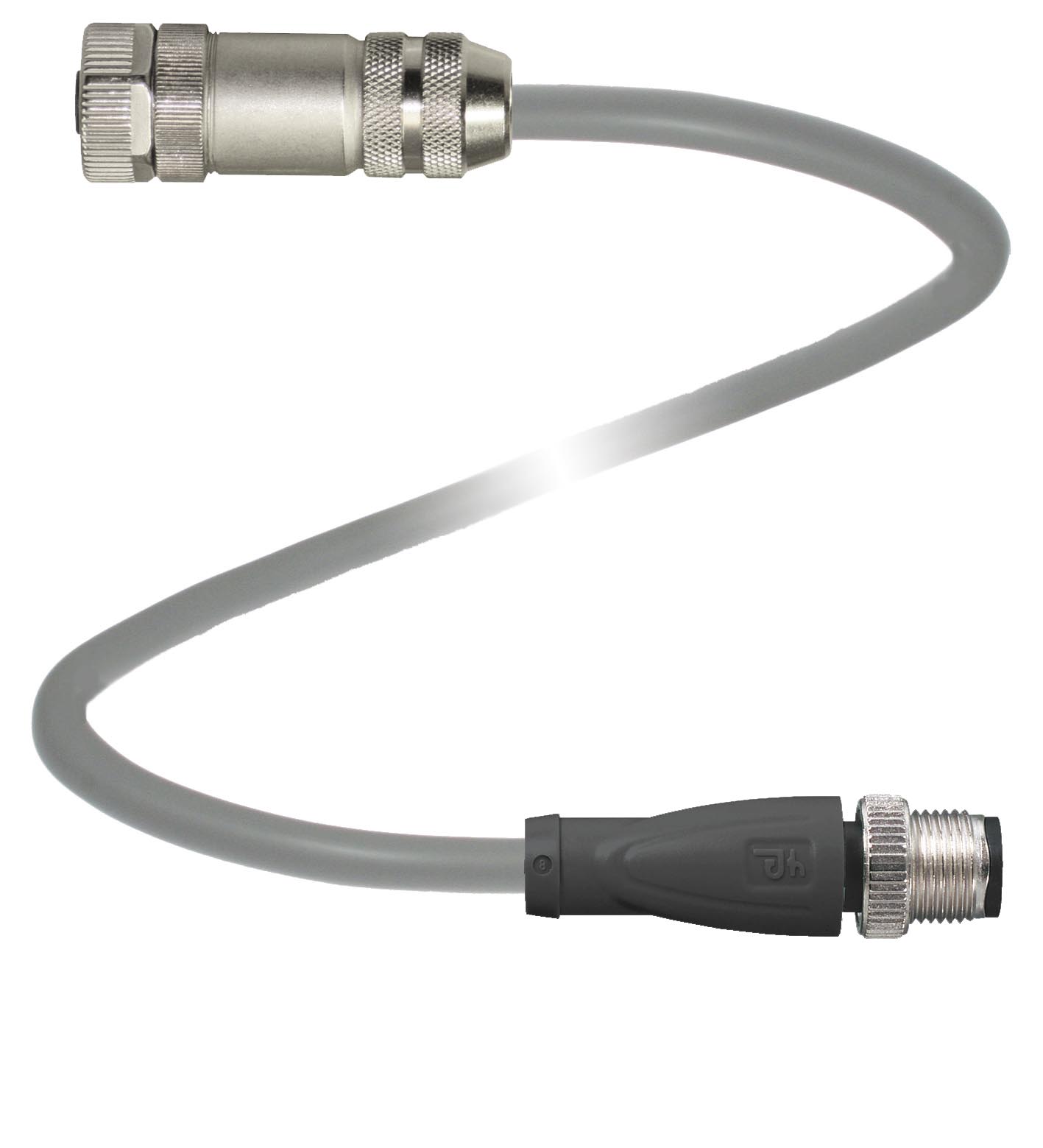

V19-G-2M-PVC-TP-V19-G

Connection cable. Double-ended cordset, M12 to M12, PVC cable, 8-pin, shielded. Number of pins: 8 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plug. C...

Connection cable. Double-ended cordset, M12 to M12, PVC cable, 8-pin, shielded. Number of pins: 8 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plug. Construction type 2: straight. Threading 2: M12. Operating voltage: max. 30 V AC/DC. Operating current: max. 2 A. Characteristic impedance: 100 Ω ± 15 Ω (> 1 MHz). Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Contact elements: spring-loaded contact socket. Degree of protection: IP67. Material: . ContactsCuZnContact surfaceAuBodyZinc diecast, nickel-plated TPU, blackCablePVCSlotted nutDiecast zincCore insulationPVC: . Contacts: CuZn. Contact surface: Au. Body: Zinc diecast, nickel-plated TPU, black. Cable: PVC. Slotted nut: Diecast zinc. Core insulation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 6.2 mmBending radius> 15 x cable diameter, movable installation > 6 x cable diameter, fixed installationColorgreyCores4 x 2 x 0.14 mm2ShieldgridLengthL2 m: . Sheath diameter: ∅ 6.2 mm. Bending radius: > 15 x cable diameter, movable installation > 6 x cable diameter, fixed installation. Color: grey. Cores: 4 x 2 x 0.14 mm2. Shield: grid. Length: 2 m. Mass: 243.6 g

Brand	Pepperl Fuchs
Lifecycle status	active
