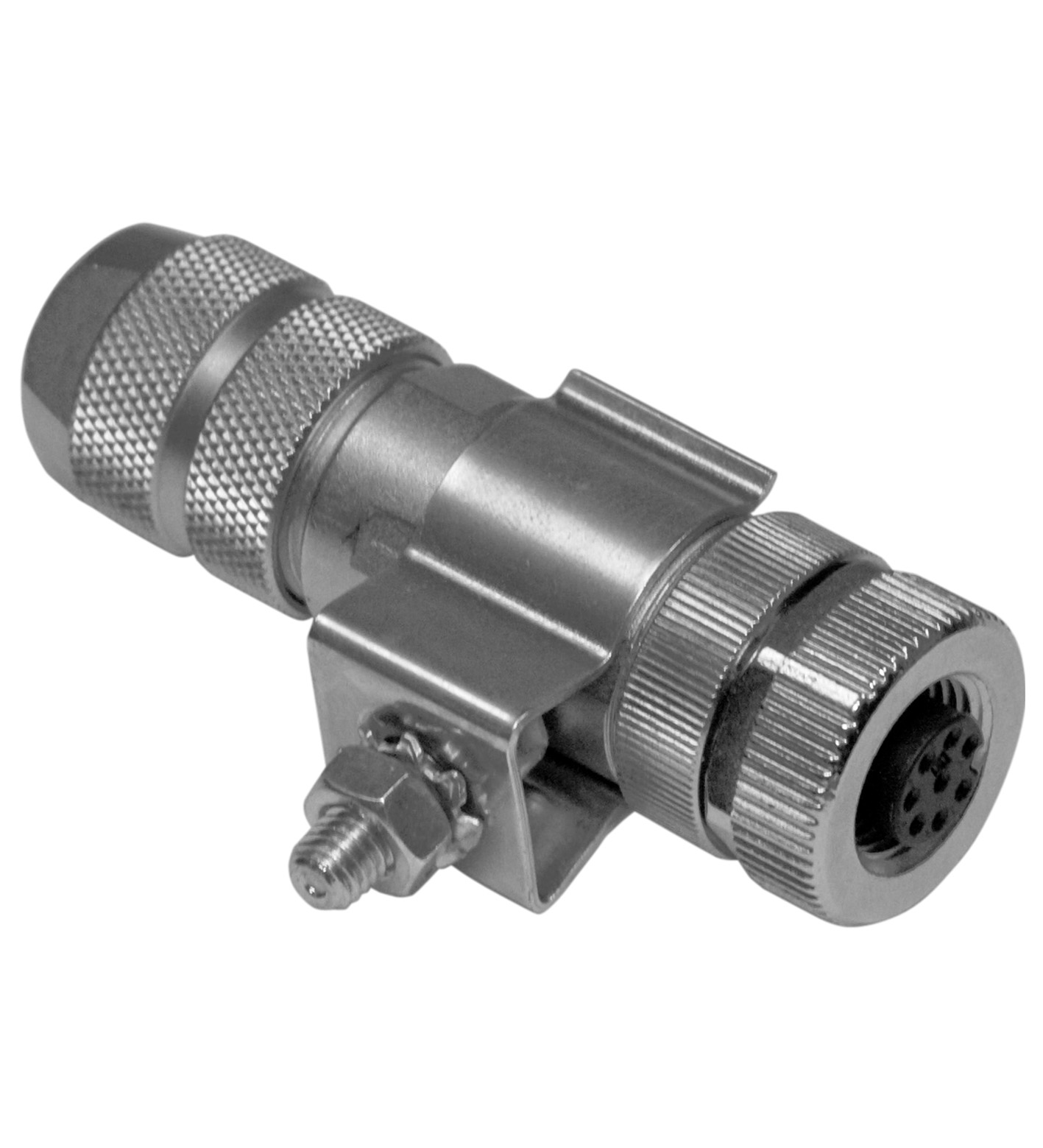

V19-G-ABG-PG9-FE

Field attachable female cordset with earth clamp. Female connector, M12, 8-pin, shielded, field attachable. Number of pins: 8. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Op...

Field attachable female cordset with earth clamp. Female connector, M12, 8-pin, shielded, field attachable. Number of pins: 8. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Operating voltage: max. 30 V DC. Operating current: max. 2 A. Volume resistance: < 3 mΩ. Standard conformity: . Degree of protectionEN 60529: . Degree of protection: EN 60529. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 3. Degree of protection: IP67. Connection: screw terminals for max. 0.5 mm2 PG9 cable gland. Material: . ContactsCuZnContact surfaceAuBodyZinc diecast, nickel-platedSlotted nutZinc diecast, nickel-plated: . Contacts: CuZn. Contact surface: Au. Body: Zinc diecast, nickel-plated. Slotted nut: Zinc diecast, nickel-plated. Cable: . Sheath diameter5 ... 8 mm: . Sheath diameter: 5 ... 8 mm. Mass: 65 g

Brand	Pepperl Fuchs
Lifecycle status	active
