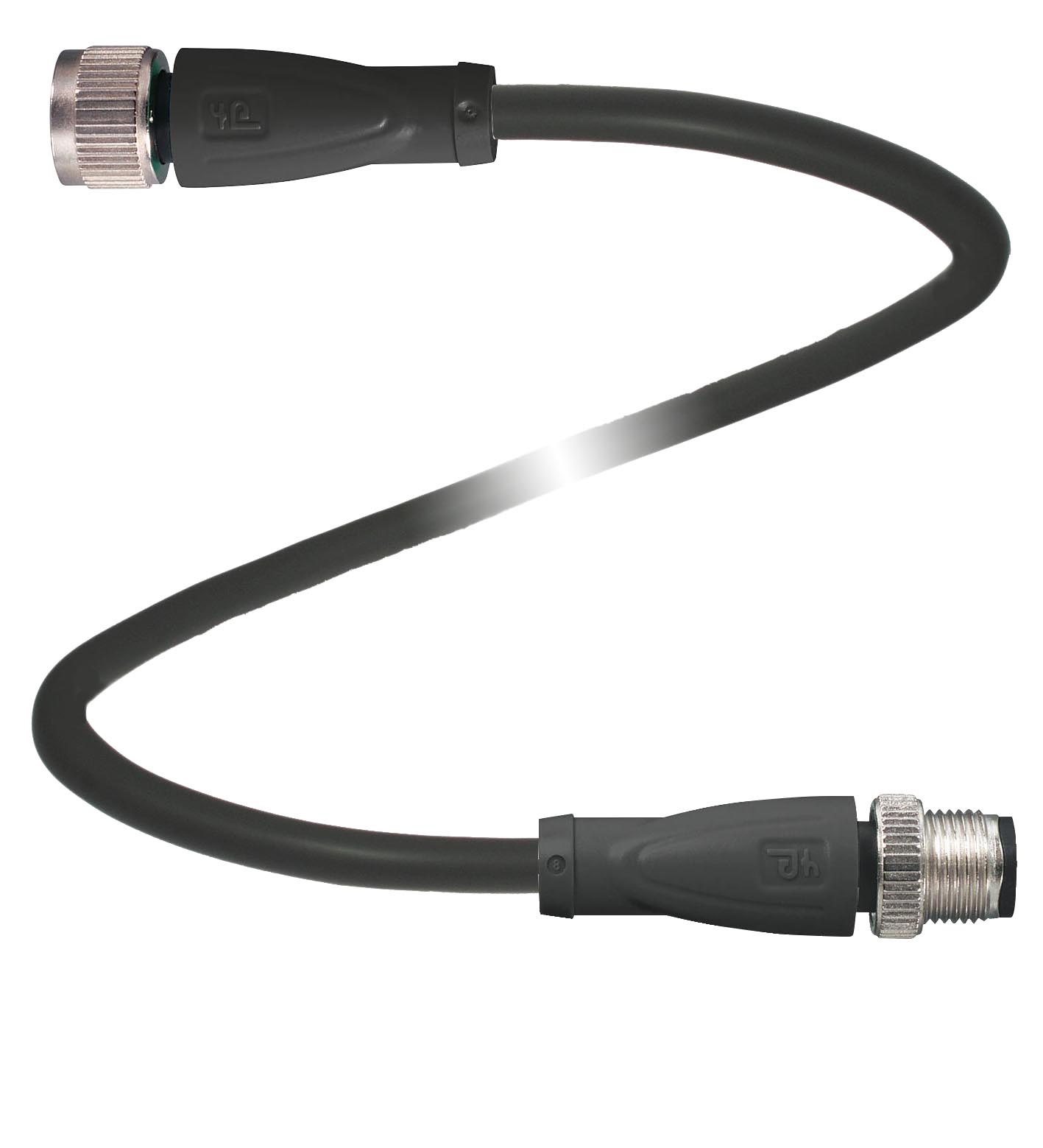

V19-G-BK1,8M-PUR-U/ABG-V19-G

Connection cable. Cordset, M12, shielded, PUR cable, 8-pin. Number of pins: 8 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: Male connector. Constructio...

Connection cable. Cordset, M12, shielded, PUR cable, 8-pin. Number of pins: 8 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: Male connector. Construction type 2: straight. Threading 2: M12. UL File Number: E231213. Operating voltage: max. 30 V AC/DC. Operating current: max. 2 A. Volume resistance: < 5 mΩ. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008FlammabilityGrip: UL 94 Cable: UL 1581 Section 1100; IEC 60332-1-2:2004Halogen-freeIEC 60754-1:1994: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Flammability: Grip: UL 94 Cable: UL 1581 Section 1100; IEC 60332-1-2:2004. Halogen-free: IEC 60754-1:1994. UL approval: cURus AWM 20549 AWM I/II A/B 80°C 300V FT2 (cable). Maximum permissible operating voltagemax. 30 VMaximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible operating voltage: max. 30 V. Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F) cable, movable installation: -20 ... 80 °C (-4 ... 176 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67 / IP68 / IP69k. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutDiecast zincSleeve connectorDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Sleeve connector: Diecast zinc. Core insulation: PP. Cable: fine-strand, flexible. Sheath diameter∅ 6 mmBending radius> 10 x cable diameter, movable installation > 8 x cable diameter, fixed installationColorblackCores8 x 0.25 mm2Conductor construction14 x 0.15 mm ∅ShieldgridLengthL1.8 m: . Sheath diameter: ∅ 6 mm. Bending radius: > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation. Color: black. Cores: 8 x 0.25 mm2. Conductor construction: 14 x 0.15 mm ∅. Shield: grid. Length: 1.8 m. Flammability: . Contact carrierHBHousingV-2CableFT2: . Contact carrier: HB. Housing: V-2. Cable: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
